Telemecanique XAW-G198EX Emergency Stop
Nouveau
En stock1 unitéPrêt à être expédié

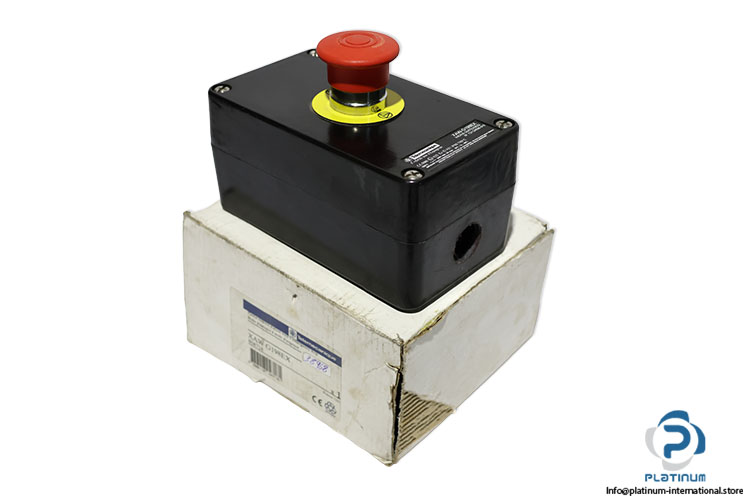

Emergency Stop Control Station The Telemecanique XAW G198EX is an explosion-proof emergency stop control station featuring a 40 mm red mushroom button and two NC contacts for reliable industrial safety applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Part No. | 804718 |
| SN | 3389118047181 |
| Part No. | 12/124598-010 |

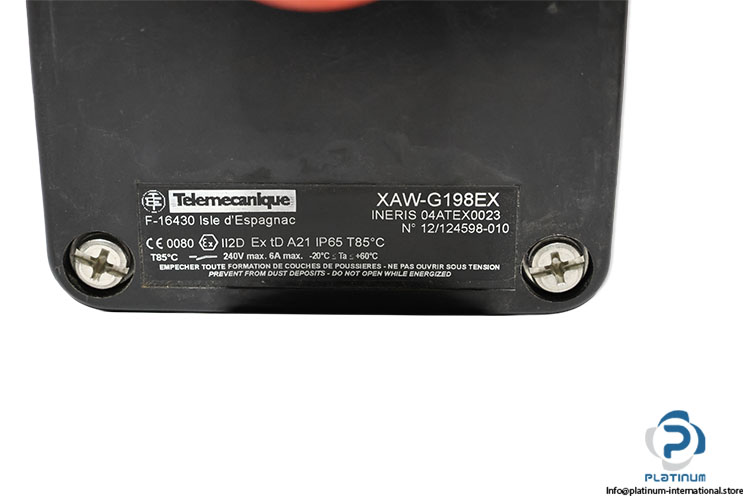

| Certification | INERIS 04ATEX0023 |
| Range of Product | Harmony XAW |
| Product or Component Type | Complete Control Station |
| Device Short Name | XAWG |
| Application | Emergency Stop Function |
| Material | Glass Fibre Reinforced |
| Reset | Push-Pull |
| Composition | 1 Mushroom Head dia 40 mm Push-Button, Red, Trigger Action, 1 NC + 1 NC |
| Cable Entry | 1 Entry for ISO M20 Cable Gland |
| Width | 80 mm |
| Depth | 70 mm |
| Height | 146 mm |
| Protection | Explosion Proof |
| Operating Temperature | -20 / 60 °C |
| Short-Circuit Protection | 10 A Cartridge Fuse Type gG |
| Release Type | Push/Pull |
| AC control voltage 50 HZ | 120…600 V |
| Number of contacts as normally closed contact | 2 |
| Button | 1 Red Mushroom 40 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100733 |
| Weight | 0,69 |
