Protection & Control Circuit Breakers

Terasaki GM1S1V6 Manual Motor Starter

Name: TERASAKI GM1S1V6 MANUAL MOTOR STARTER
SKU: 1081207
Availability: LimitedAvailability

terasaki-GM1S1V6-manual-motor-starter-(new)

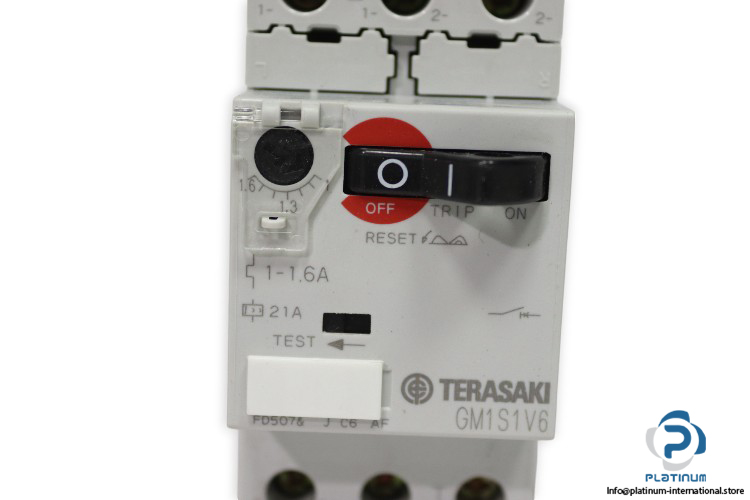

terasaki-GM1S1V6-manual-motor-starter-(new)-1

terasaki-GM1S1V6-manual-motor-starter-(new)-2

terasaki-GM1S1V6-manual-motor-starter-(new)-3

Nouveau

En stock3 unitésPrêt à être expédié

MANUAL MOTOR STARTER

3-pole manual motor starter with thermal and magnetic protection. Adjustable 1“1.6 A range, 690 V insulation, and 100 kA short-circuit capacity for industrial safety and control systems.

Fabricant

TERASAKI

SKU

1081207

Catégorie

Circuit Breakers

Condition

Nouveau

1“1.6A 100kA 3-Pole 690V Adjustable Capacity Device FD513 GM1S1V6 High Icu Industrial Insulated Magnetic Manual Model Moto motor Protection Safety Short-Circuit Starter Terasaki Thermal

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

TERASAKI GM1S1V6 MANUAL MOTOR STARTER

Reliable and compact manual motor starter designed for overload and short-circuit protection in industrial applications. The GM1S1V6 offers thermal and magnetic trip functions with high short-circuit breaking capacity, making it ideal for motor control panels and machine safety systems.

Manufacturer: Terasaki

Type: Manual Motor Starter

Model: GM1S1V6

Ref. Code: FD513

No. of Poles	3
Rated Insulation Voltage (Ui)	690 V
Rated Frequency	50/60 Hz
Thermal Trip Adjustment Range	1 to 1.6 A
Magnetic Release Current	21 A
Power	0.4 kW at 380“440 V AC
Operational Short-Circuit Breaking Capacity (Ics)	100 kA at 400 V AC
Maximum Short-Circuit Breaking Capacity (Icu)	100 kA at 400 V AC
