Motion Control Rotary Encoders

TR Electronic IE58A 220-00014 Incremental Encoder

Name: TR ELECTRONIC IE58A 220-00014 INCREMENTAL ENCODER
Brand: TR ELECTRONIC
SKU: 965711
Price: 195.00 USD
Availability: InStock

Utilisé

En stock2 unitésPrêt à être expédié

195,00$

Encodeur incrémental TR Electronic IE58A est un encodeur incrémental haute précision avec 14 impulsions, sortie HTL push-pull, protection IP65 et alimentation 11“27 VDC. Idéal pour l'automatisation industrielle.

Fabricant

TR ELECTRONIC

SKU

965711

Catégorie

Rotary Encoders

Condition

Utilisé

14 Axial Cable Electronic Encoder Flange HTL IE58A Impulse Incremental Industrial IP65 Output Push-Pull shaft TR ZB36

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

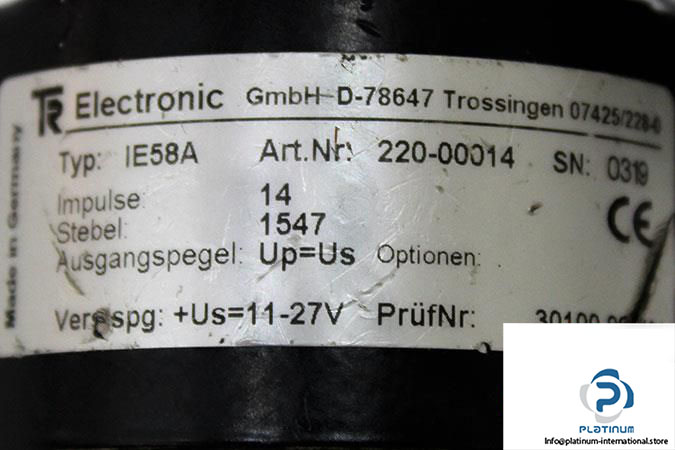

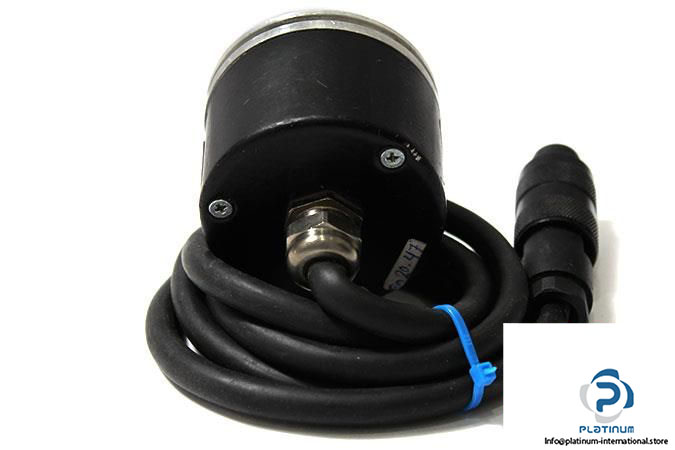

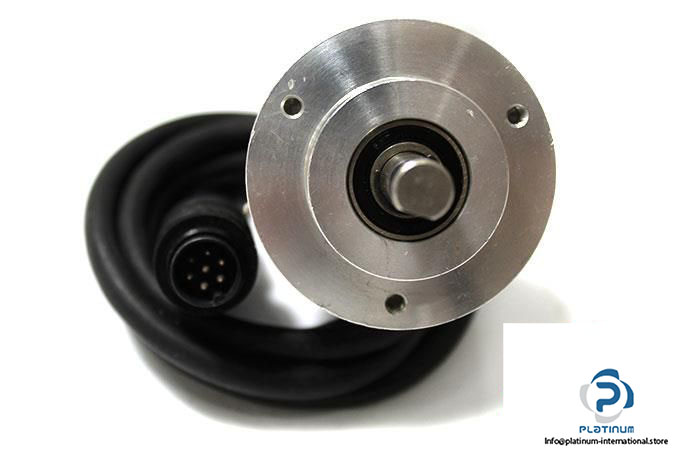

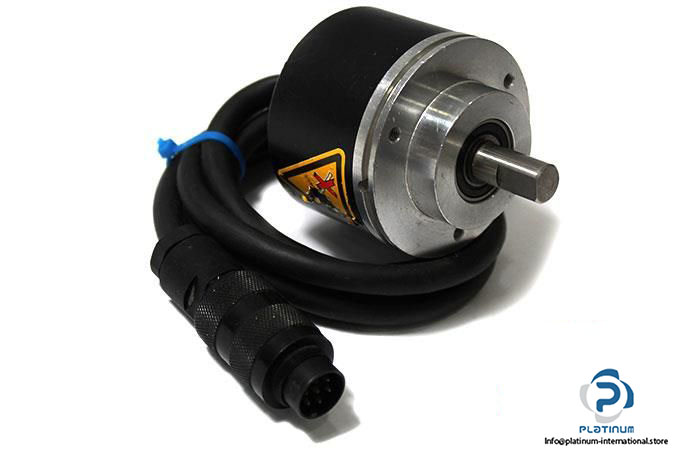

TR ELECTRONIC IE58A INCREMENTAL ENCODER

The TR Electronic IE58A Incremental Encoder is designed for high-performance industrial automation tasks requiring precise rotational measurement. With its IP65 protection class and push-pull HTL output, this encoder ensures reliable performance in tough environments.

Manufacturer: TR ELECTRONIC

Type: Incremental Encoder

Model: IE58A

Art. Nr.: 220-00014

Stebel: 1547

Flange Type	ZB36
Shaft Diameter	10 mm
Impulse	14
Voltage Supply	11 / 27 VDC
Output Driver	HTL - Push-Pull
Connection Type	Axial Cable Output (Binder 7P)
Protection Class	IP65
Max Temperature	70 °C
