TR Electronic IE60 100 Impulse Incremental Encoder
Encodeur incrémental TR électronique IE 60 avec 100 impulsions, sortie 50 kHz et alimentation 11“27 V DC. Présente une classification antidéflagrante EX d 3n G5 et un arbre de 12 mm pour systèmes d'automatisation industrielle.

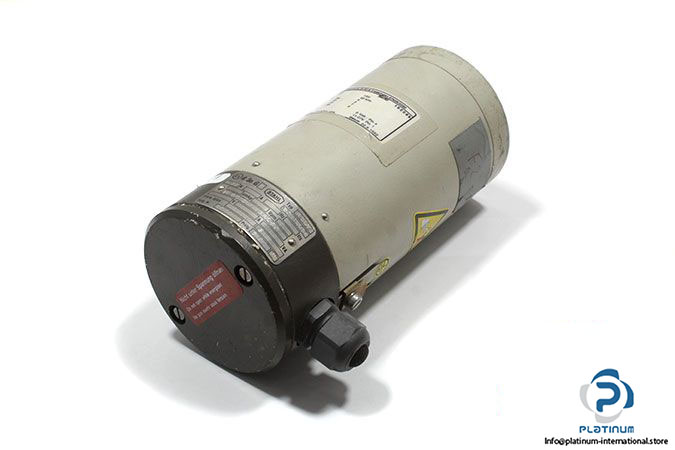

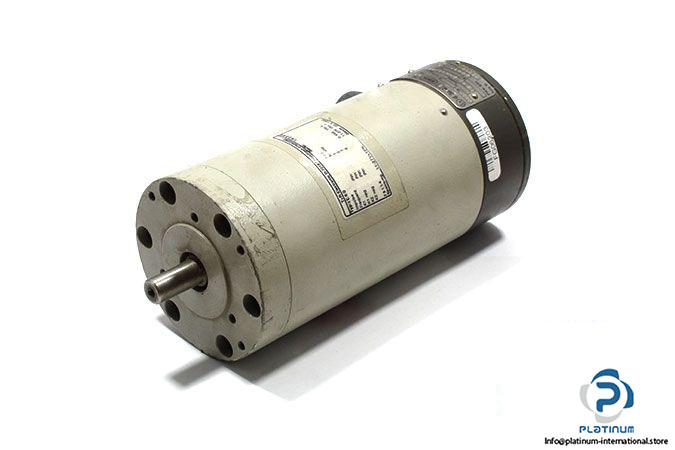

TR ELECTRONIC IE 60 INCREMENTAL ENCODER
The TR Electronic IE 60 is a high-precision incremental encoder designed for industrial automation and control systems. It features a rugged build and explosion-proof housing, ideal for hazardous environments requiring accurate position feedback.
Manufacturer: TR Electronic
Type: Incremental Encoder
Model: IE 60

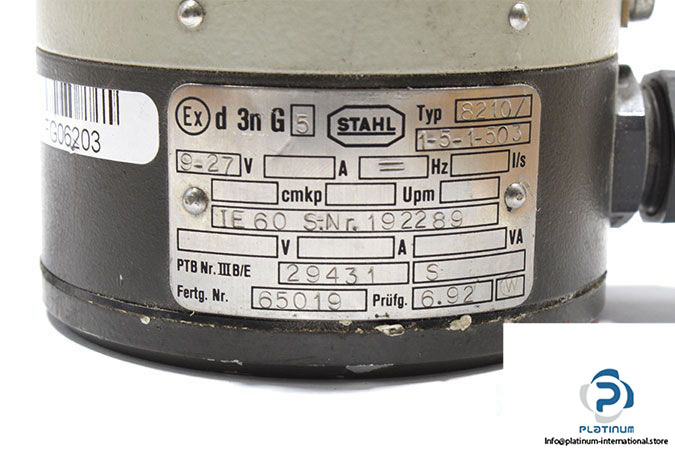

Stahl Model: 8210/1-5-1-503
Serial No.: 192289
Ref No.: 65019 / 29431
| Shaft Diameter | 12 mm |
| Voltage Supply | 11 “ 27 V DC |
| Explosion Proof Rating | EX d 3n G5 |
| Connector Type | 8210 |

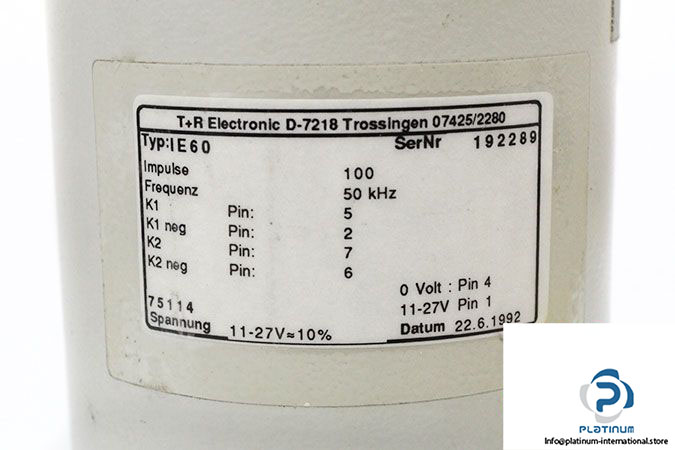

| Impulse | 100 |
| Output Frequency | 50 kHz |
