Trafag 8252.78.2517 Pressure Transmitter
Transmetteur de pression Trafag 8252.78.2517.01.0000.0000.19.61 avec plage de mesure de 0 à 10 bar-G, sortie 4 à 20 mA et connexion G ¼, assurant une surveillance fiable de la pression dans des environnements exigeants.

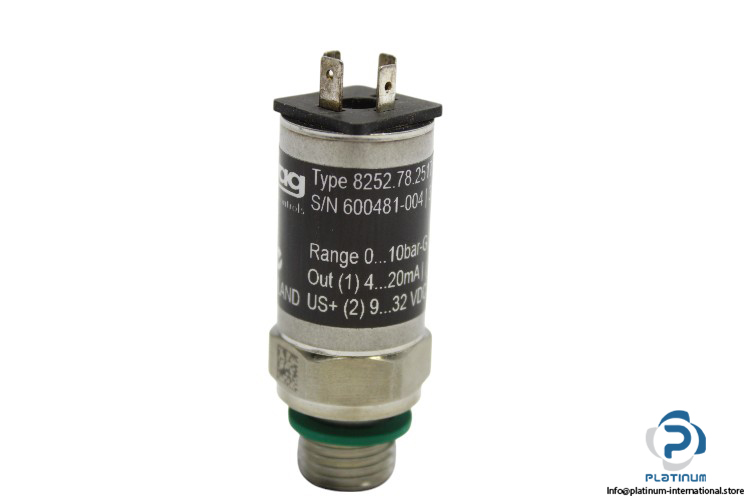

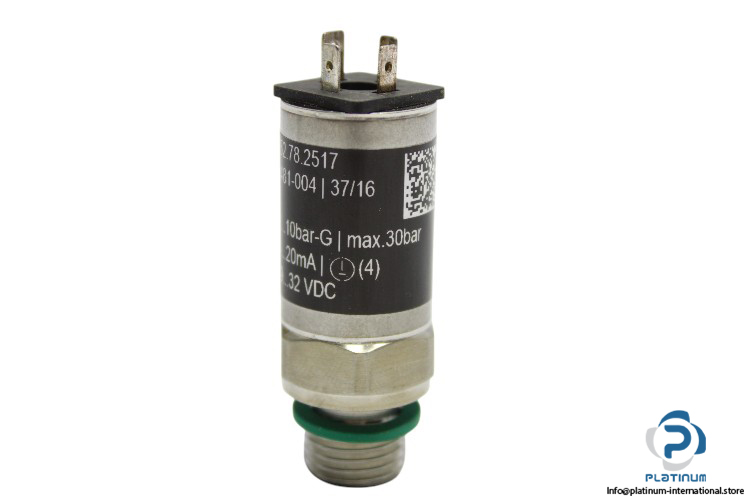

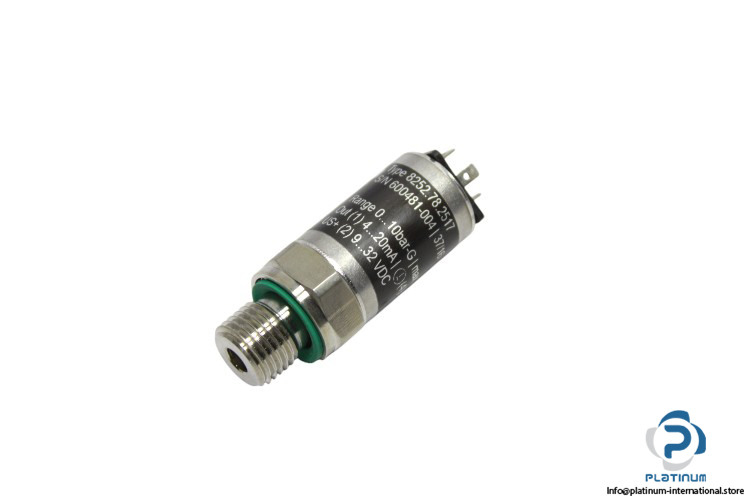

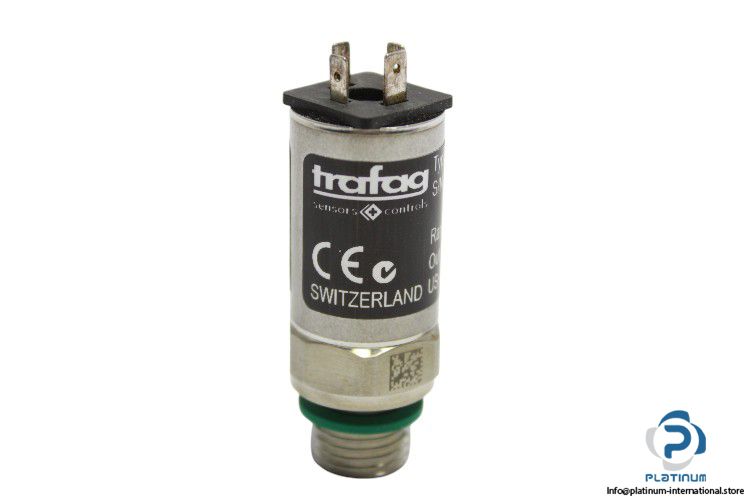

Trafag 8252.78.2517.01.0000.0000.19.61 Pressure Transmitter
The Trafag 8252.78.2517.01.0000.0000.19.61 Pressure Transmitter is designed for precise and reliable pressure measurement in industrial applications. With a robust construction and a wide ambient temperature range, it ensures stable operation under demanding conditions.
Manufacturer: Trafag
Type: PRESSURE TRANSMITTER
Model: 8252.78.2517.01.0000.0000.19.61
Engineered for durability and precision, this pressure transmitter provides accurate readings and ensures long-lasting performance in industrial environments.
| Pressure Measuring Range | 0 to 10 bar-G |
| Max. Pressure | 30 bar |
| Supply Voltage | 9 to 32 V DC |
| Output Signal | 4 to 20 mA |
| Electrical Connections | Plug connection |
| Connection | G ¼ |
| Ambient Temperature | -40°C to 150°C |
| Relative Pressure | 25 bar |
