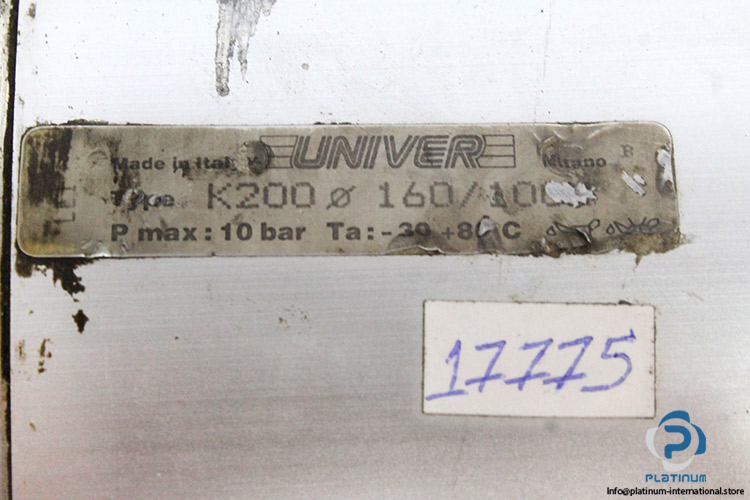

Univer K200-160/1000 Pneumatic Cylinder
Pneumatic Cylinder

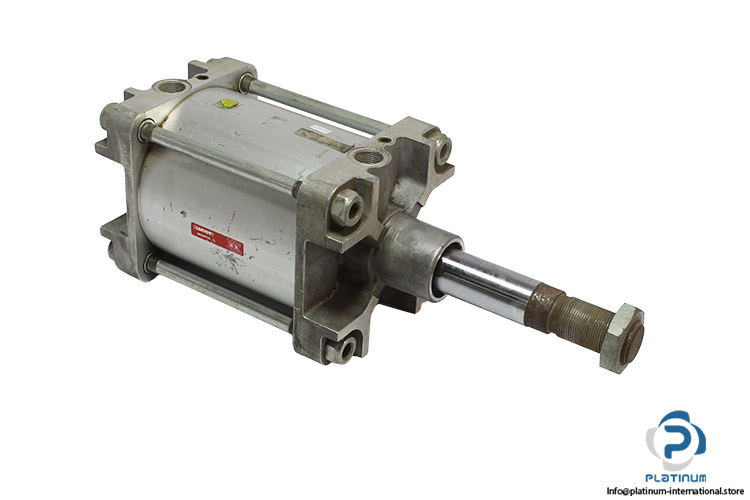

Univer double-acting pneumatic cylinder with 160 mm bore and 1000 mm stroke, designed for heavy-duty industrial automation applications.Univer K200 160/1000 Pneumatic Cylinder
A heavy-duty pneumatic cylinder engineered by Univer for high-force linear motion in industrial automation applications. Featuring a square body design and long 1000 mm stroke, this double-acting cylinder delivers reliable performance, precise motion control, and durability under demanding operating conditions. Manufacturer: Univer
Type: Pneumatic Cylinder
Model: K200 160/1000
Recommendation:
This Univer pneumatic cylinder is ideal for heavy-duty automation tasks such as pressing, lifting, clamping, and positioning. For optimal performance and extended service life, it is recommended to use this cylinder with high-quality Air Filters, reliable Position Sensors, and compatible pneumatic control components available at Platinum International.
| Operating Medium | Compressed Air |
| Stroke Length | 1000 mm |
| Piston Diameter | 160 mm |
| Rod Diameter | 40 mm |
| Operating Pressure | Max. 10 bar |
| Frame Dimension | 178 × 280 mm |
| Piston Rod End | Male Thread |
| Variants | Piston Rod at One End |
| Shape | Square |
| Mode of Operation | Double Acting |
| Operating Temperature | -30 °C to +80 °C |
| Pneumatic Connection | G 3/4 |
