Univer K2003250M ISO Cylinder
Utilisé
En stock1 unitéPrêt à être expédié
ISO Cylinder
UNIVER K2003250M ISO Cylinder is a high-performance pneumatic actuator designed for industrial automation. With a 32 mm bore, 50 mm stroke, and double-acting operation, it delivers efficient motion control and durability. Featuring a square-shaped frame and a male piston rod end, it ensures reliability in demanding applications.1/81032mm50mmActuatorAutomationbarboreconnectionControlCylinderdouble-actingframeGhigh-performanceIndustrialISOK2003250MMotionpPneumaticPressureSquareStrokeUniver
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

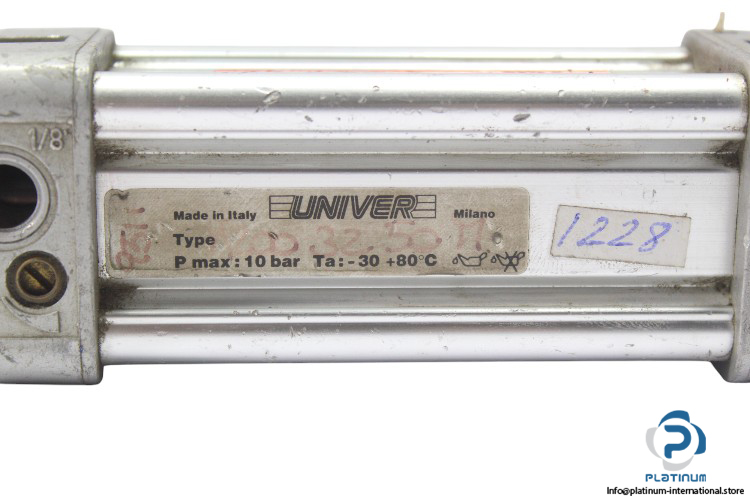

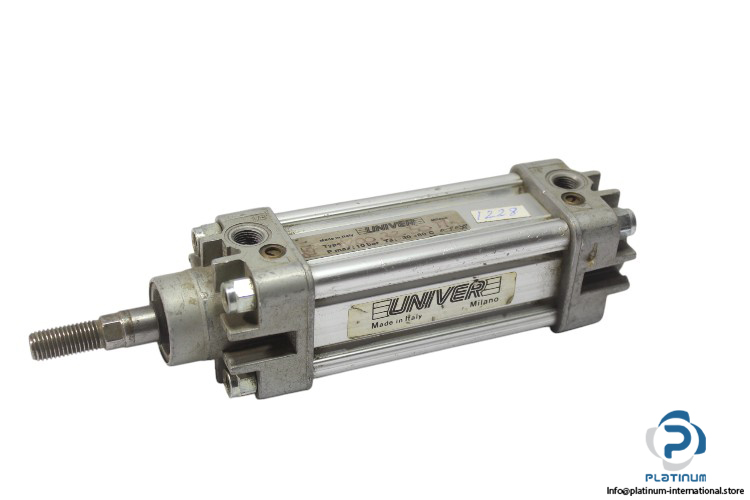

UNIVER K2003250M ISO Cylinder
The UNIVER K2003250M ISO Cylinder is a high-precision pneumatic actuator designed for industrial applications requiring reliability, efficiency, and compliance with ISO standards. With a robust square-shaped frame, this double-acting cylinder ensures consistent performance and long service life in various automation and mechanical systems.
Manufacturer: UNIVER
Type: ISO Cylinder
Model: K2003250M
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 50 mm |
| Bore x Stroke | 32 x 50 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 49 x 165 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
