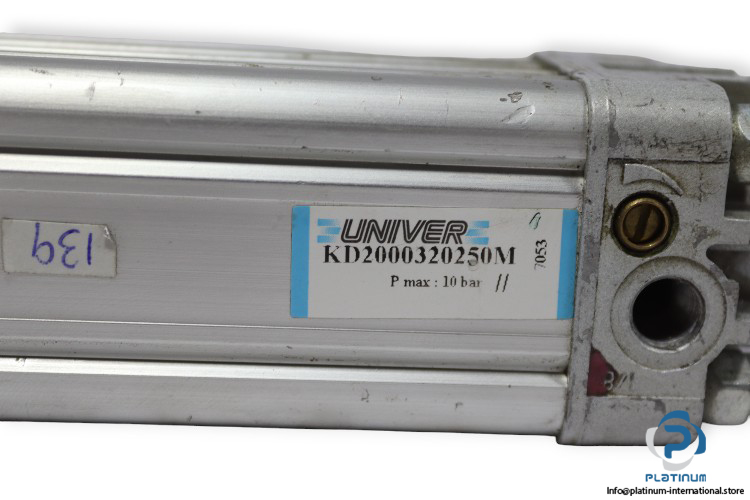

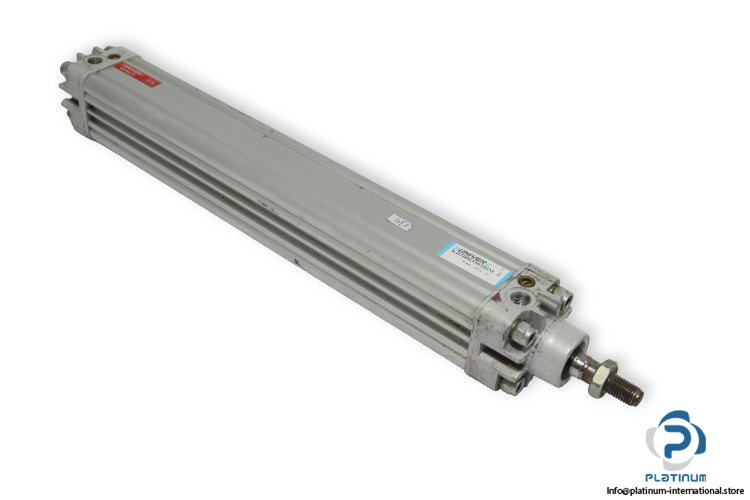

Univer KD2000320250M ISO Cylinder
Manufacturer: Univer
Type: ISO Cylinder
Model: KD2000320250M
Media: Compressed Air
Stroke (mm): 250
Bore diameter (mm): 32
BorexStroke (mm): 32×250
Rod diameter (mm): 12
Fram Dimensions (mm): 48×364
Maximum pressure (bar): 10
Pneumatic connection: G1/8
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
