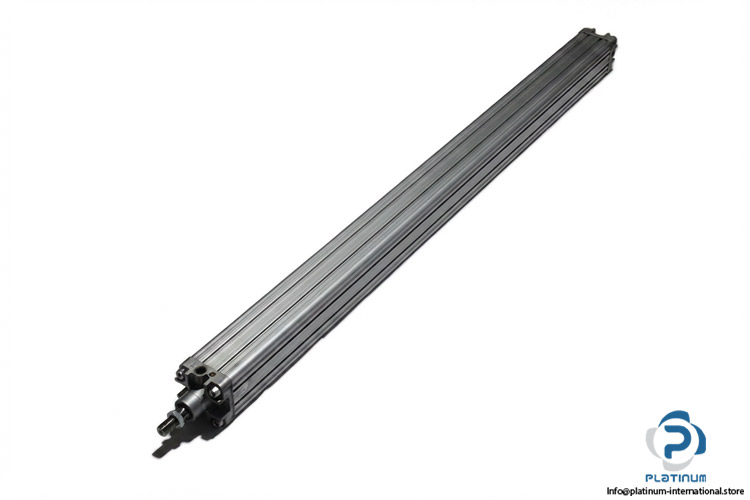

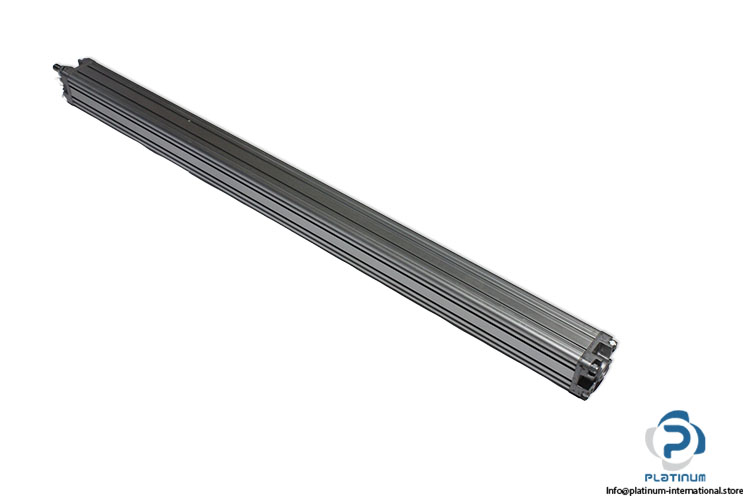

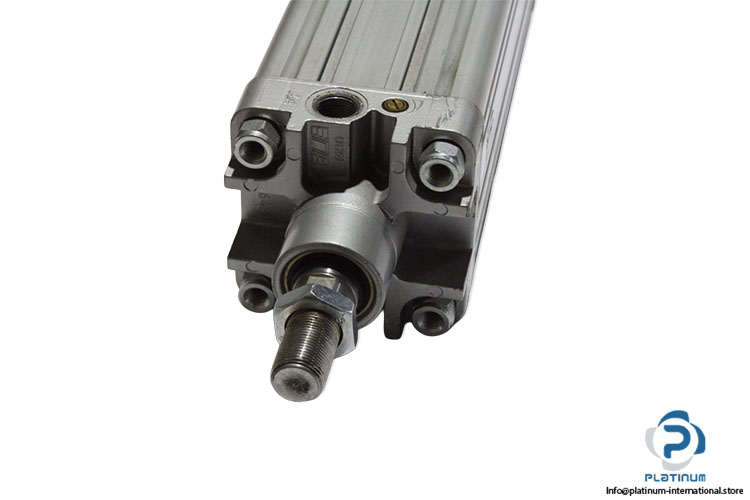

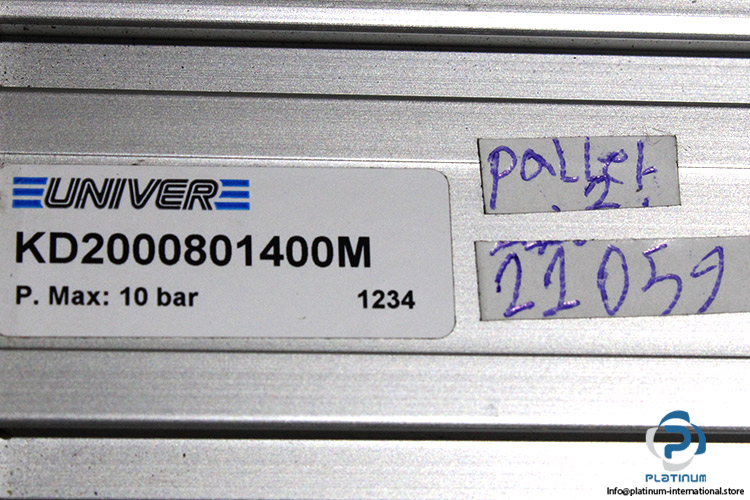

Univer KD2000801400M ISO Cylinder
Nouveau
En stock2 unitésPrêt à être expédié
ISO Cylinder Univer magnetic ISO cylinder designed for precise linear motion, double-acting pneumatic operation, and reliable performance in industrial automation systems.
ActingActuatorAirAutomatAutomationComponentsControlCylinderDoubleIndustrialISOLinearMagneticMotionPneumaticUniver
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Code | 1234 |
| Series | K |
| Fluid | filtered air |
| Stroke | 1400 mm |
| Bore Size | 80 mm |
| Fram Dimensions | 97x1565 mm |
| Rod diameter | 25 mm |
| Operating Mode | Double-acting |
| Operating pressure | 1,5/ 10 bar |
| Cushioning Type | pneumatic adjustable |
| Piston rod end | Male thread |
| Variants | Piston rod at one end |
| Port size | G3/8 |
| Material Guide slide | acetylic resin |
| Material Seals | nitrile rubber |
| Material piston rod | chromium-plated steel |
| Ambient temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097544 |
| Weight | 17,64 |
