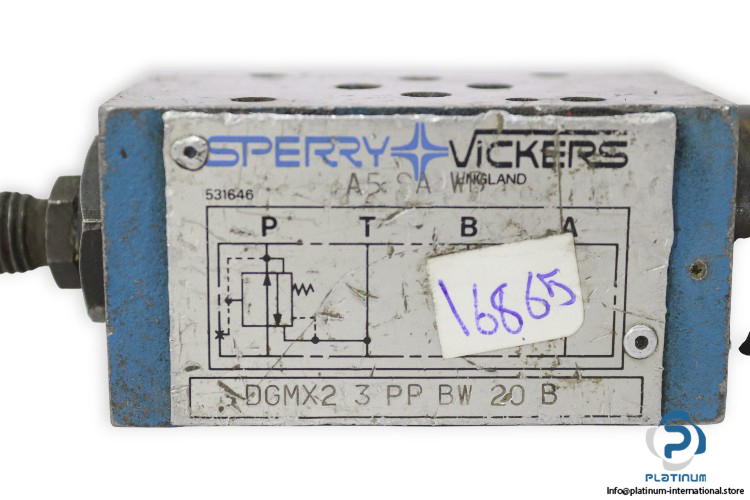

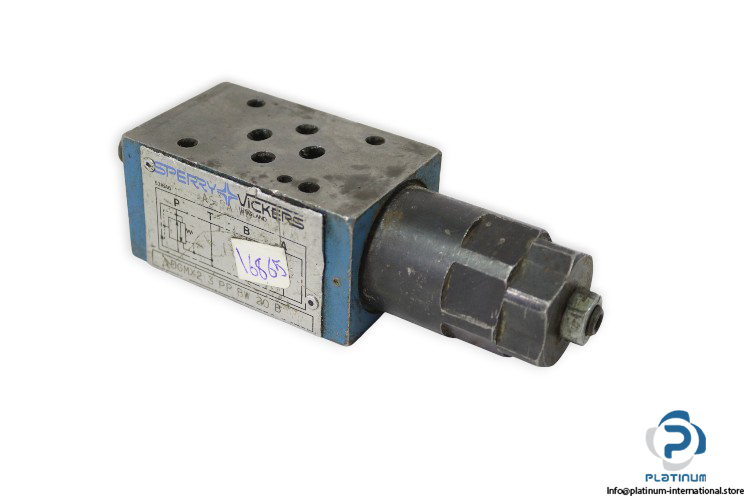

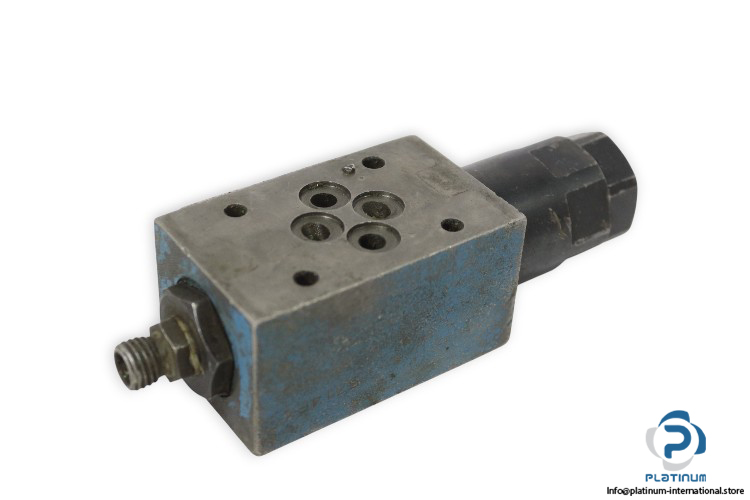

Vickers DGMX2 3 PP BW 20 B Pilot-Pressure Reducing Valve
77,77$
Pilot-Pressure Reducing Valve
Vickers / Sperry pilot-pressure reducing valve with adjustable pressure range up to 70 bar, designed for precise hydraulic pressure control.Vickers / Sperry DGMX23PPBW20B Pilot-Pressure Reducing Valve
A high-performance pilot-pressure reducing valve manufactured by Vickers / Sperry, designed to deliver precise and stable pressure reduction in hydraulic systems. This valve ensures controlled downstream pressure while maintaining reliable performance under high operating pressures, making it suitable for demanding industrial and mobile hydraulic applications. Manufacturer: Vickers / Sperry
Type: Pilot-Pressure Reducing Valve
Model: DGMX23PPBW20B
Code: 531646
Recommendation:
This pilot-pressure reducing valve is ideal for hydraulic circuits requiring accurate pressure control and system protection. For enhanced performance and extended system life, it is recommended to use this valve together with high-quality Hydraulic Filters, reliable Pressure Sensors, and compatible hydraulic control components available at Platinum International.
| Maximum Flow Rate | 60 L/min |
| Maximum Operating Pressure | 315 bar (4500 psi) |
| Pressure Adjustment Range | 3.5 to 70 bar (51“1000 psi) |
| Pressure Adjustment / Locking Method | Screw and Locknut |
| Connection | Sub-Plated, G 1/8 |
