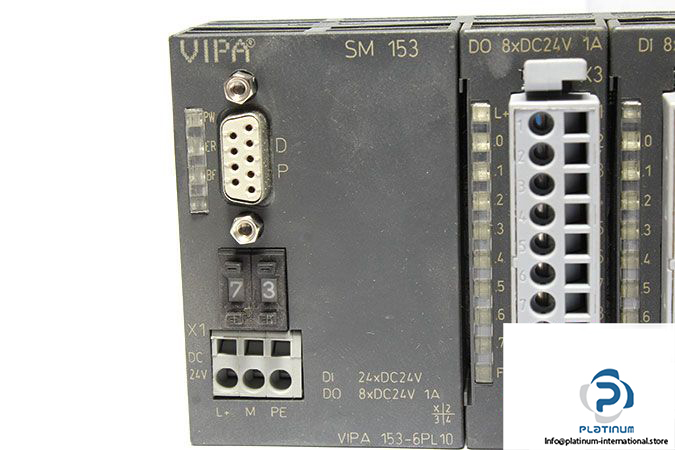

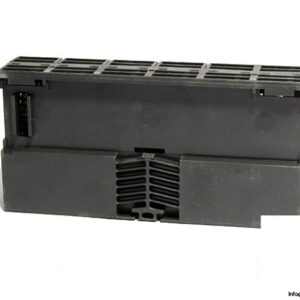

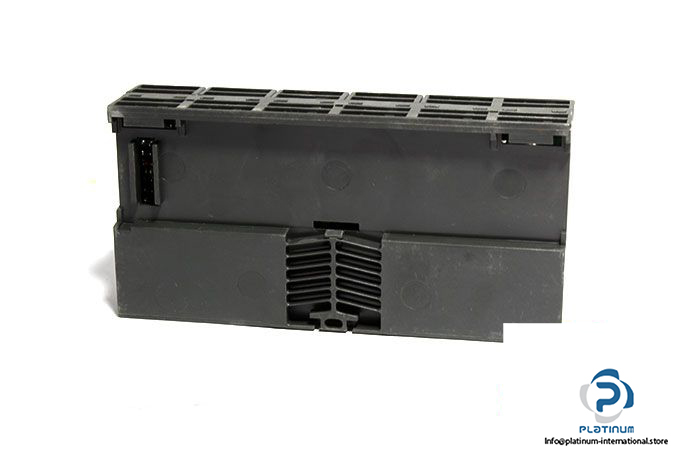

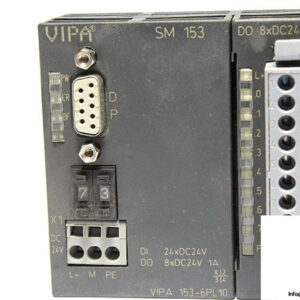

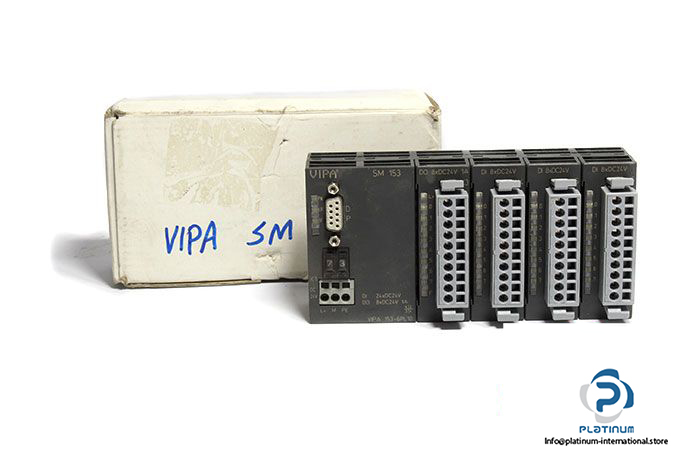

Vipa 153-6PL10 Slave Module‎

Manufacturer: VIPA ‎

Type: Slave Module

Model:  SM 153

Order Code: 153-6PL10

No of Digital Inputs: 24

No Of Digital Outputs: 8

Power Supply: 24 V DC

Current consumption: 55 mA

Actuation of digital input: yes

Switching frequency with resistive load :max. 1000 Hz

Switching frequency with inductive load: max. 0.5 Hz

Switching frequency on lamp load: max. 10 Hz

Output data size: 1 Byte

Communication

Fieldbus: PROFIBUS-DP to EN 50170

Type of interface: RS485 Connector Sub-D, 9-pin, female Topology: Linear bus with bus termination at both ends Electrically isolated: yes

Number of participants: max. 125

Node addresses: 1 – 99

Transmission speed: min. 9.6 kbit/s

Transmission speed: max. 12 Mbit/s

Address range inputs: max. 3 Byte

Address range outputs: max. 1 Byte

Material: PPE/PA 6.6

Weight: 0.3 kg
