Vipa CPU 314SB Compact CPU Module
Nouveau
En stock1 unitéPrêt à être expédié
999,99$
Compact CPU Module
VIPA Yaskawa CPU314SB from the 300S series with MPI, Ethernet, and PROFIBUS DP master interface, 24 V DC supply, 512 KB integrated work memory, expandable to 1 MB, and SD/MMC card slot up to 2 GB.300SAutomationCompactControllerCPUCPU314SBDPEthernetIndustrialInterfacemasterModuleMPIPLCProfibusSeriesVipaYaskawa
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

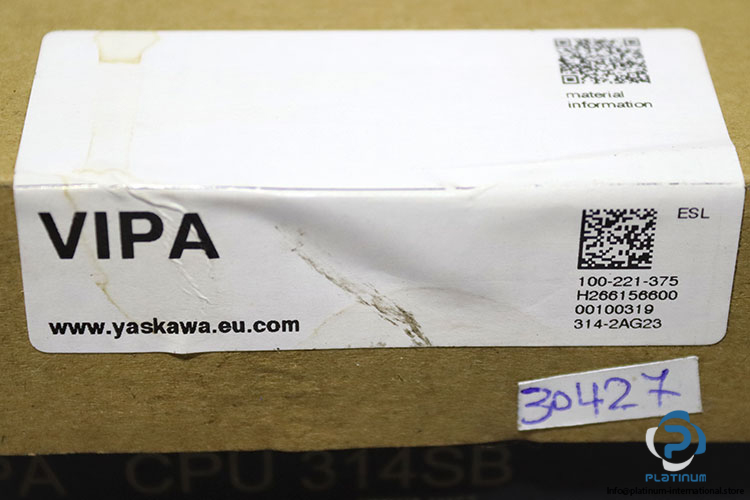

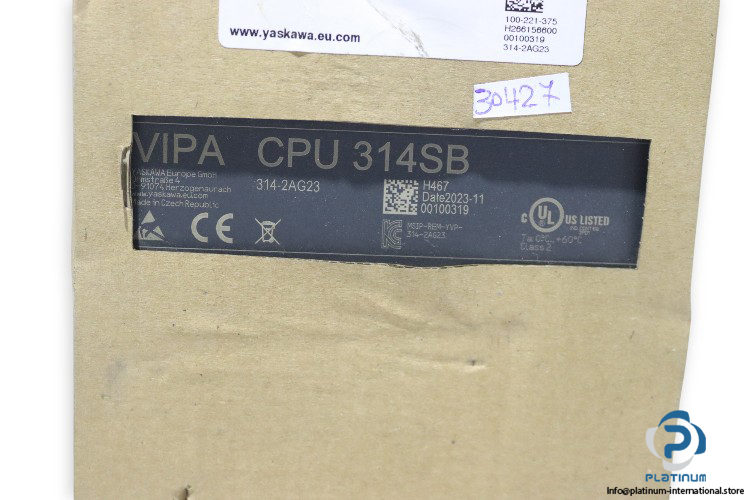

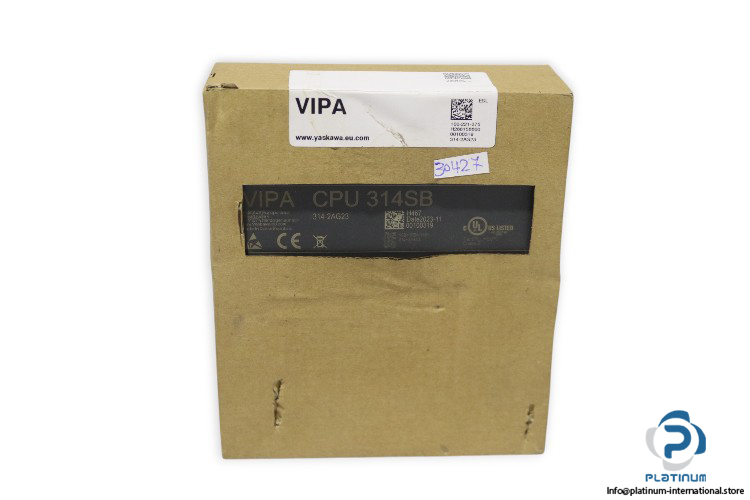

VIPA Yaskawa CPU314SB Compact CPU Module
The VIPA Yaskawa CPU314SB is a high-performance compact CPU module from the 300S series, designed for industrial automation applications. It provides advanced connectivity and reliable operation with integrated MPI, Ethernet, and PROFIBUS DP interfaces.
Manufacturer: VIPA Yaskawa
Type: Compact CPU Module
Model: CPU314SB
Part Number: 314-2AG23
Series: 300S
| Interfaces | MPI interface, card slot, real time clock, Ethernet interface for PG/OP, PROFIBUS DP master |
| Power Supply (Rated Value) | DC 24 V |
| Power Supply (Permitted Range) | DC 20.4...28.8 V |
| Current Consumption (No-Load Operation) | 200 mA |
| Current Consumption (Rated Value) | 1 A |
| Inrush Current | 5 A |
| I²t | 0.5 A²s |
| Max. Current Drain at Backplane Bus | 2.5 A |
| Work Memory (Integrated) | 512 KB |
| Work Memory (Maximal) | 1 MB |
| Memory Card Slot | SD/MMC-Card with max. 2 GB |
| Modules per Rack (Max.) | 8 in multiple, 32 in a single rack |
| Number of Integrated DP Master | 1 |
| Number of DP Master via CP | 4 |
| Operable Function Modules | 8 |
| Operable Communication Modules PtP | 8 |
| Operable Communication Modules LAN | 8 |
