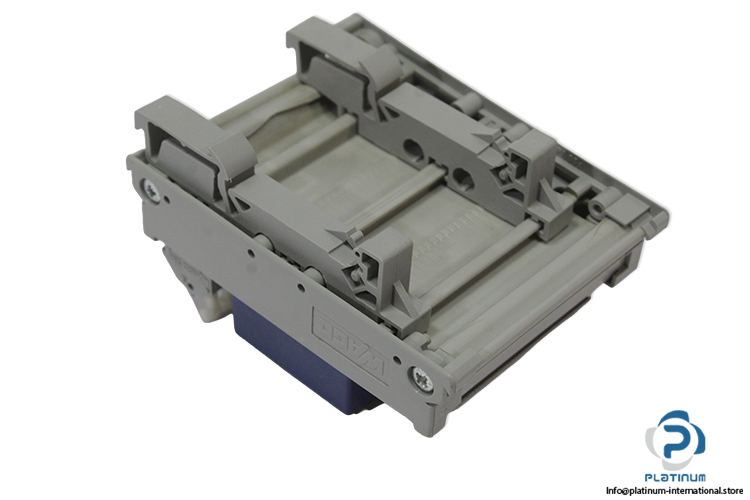

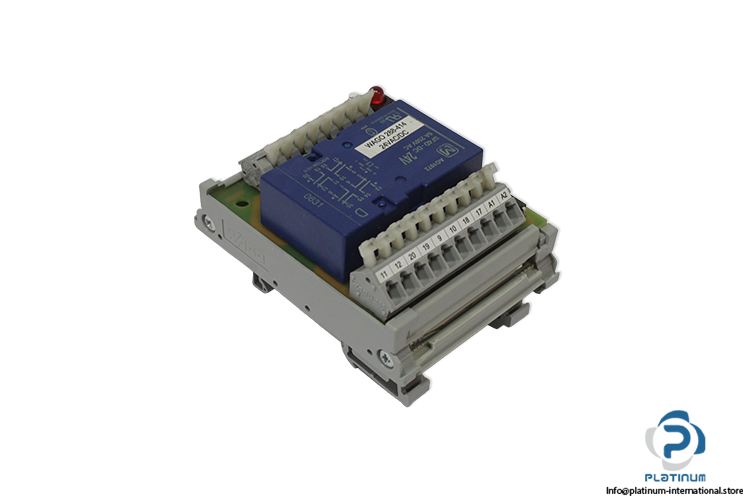

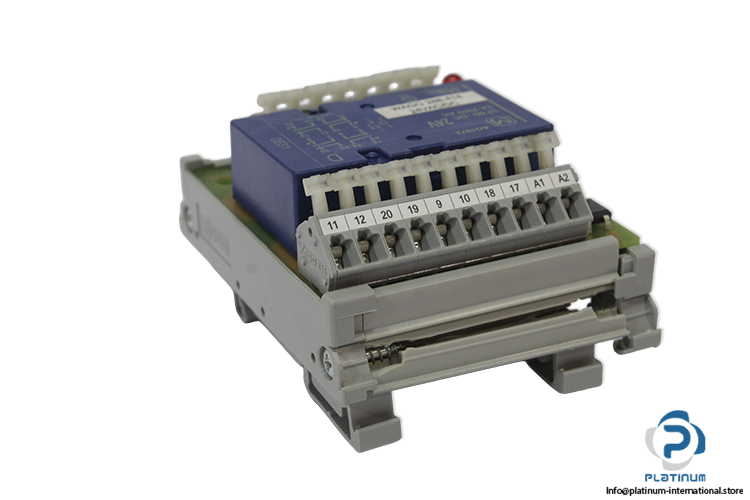

Wago 288-414 Relay Module
Module relais Module relais WAGO avec contacts pilotés conçu pour l'automatisation industrielle et les systèmes de contrôle. Prend en charge une entrée 24 V AC/DC, montage sur rail DIN et commutation fiable avec contacts AgSnO2.
WAGO Relay Module With Driven Contacts
The WAGO Relay Module with Driven Contacts is a reliable industrial relay interface designed for safe switching and control applications in automation systems and electrical panels. Engineered with high-quality components and WAGO™s trusted connection technology, this relay module provides stable operation, efficient signal switching, and easy DIN-rail installation for industrial environments.
Manufacturer: WAGO
Type: Relay Module With Driven Contacts

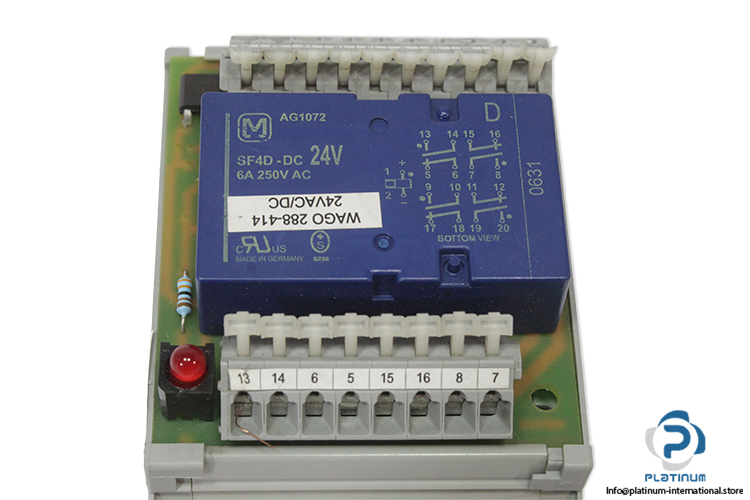

Relay Model: SF4D-DC
Base Part No.: 288414

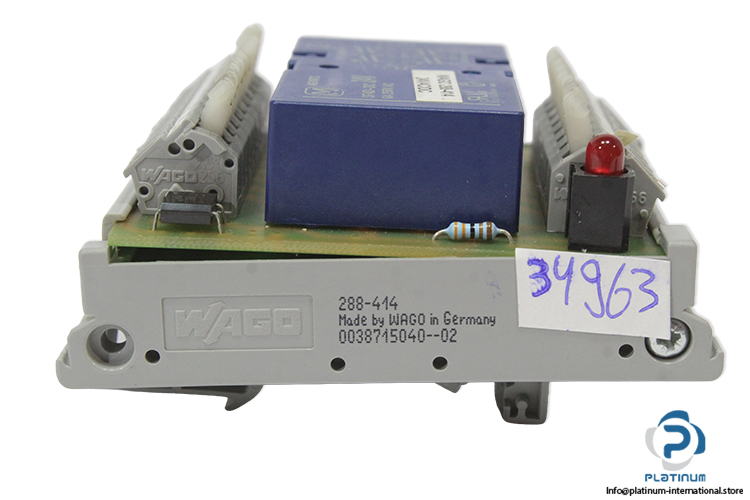

Code: 0038745040 “ 02 / AG1072 / 0631
Load Circuit
| Nominal Input Voltage | 24 V AC/DC |
| Nominal Input Current At Un | 26 mA |
| Number Of Break Contacts / Switch Off Contacts | 4 |
| Number Of Make Contacts / Switch On Contacts | 4 |
| Contact Material (Relay) | AgSnO2 |
| Limiting Continuous Current | 6 A |
| Max. Make Current (Resistive) | 20 A (AC) |
| Max. Switching Voltage | 250 VAC |
| Max. Switching Power (Resistive) | 1500 W |
| Recommended Minimum Load | 10 V / 10 mA |
| Rated Voltage | 250 V |
| Rated Impulse Voltage | 2.5 kV |
| Pollution Degree | 2 |
| Pull-In Time (Typ.) | 18 ms |
| Drop-Out Time (Typ.) | 21 ms |
| Bounce Time (Typ.) | 4 ms |
| Connection Technology | CAGE CLAMP® |
| WAGO Terminal | WAGO 256 Series |
| Type Of Mounting | DIN-35 Rail |
| Operating Temperature | -40 To 70 °C |
| Dimensions | 63.5 × 40 × 85 mm |
| Recommendation | Ideal for industrial control panels and automation systems requiring reliable switching performance, compact DIN-rail installation, and maintenance-friendly wiring. |
