Weidmuller UR20-4AO-UI-16 U-Remote
Nouveau
En stock2 unitésPrêt à être expédié

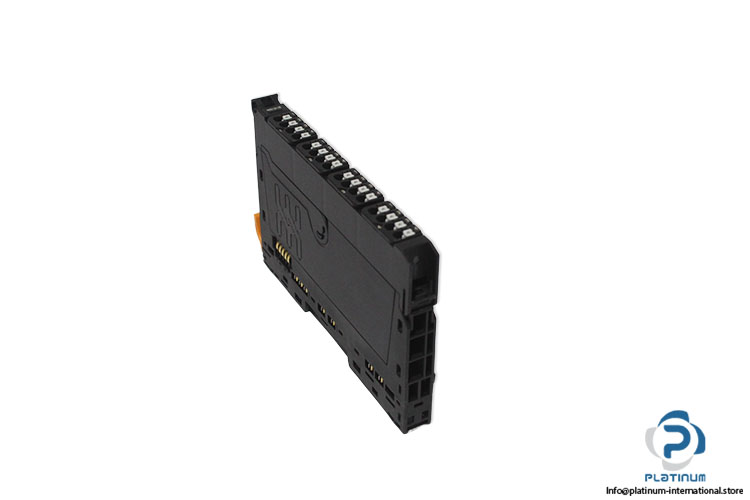

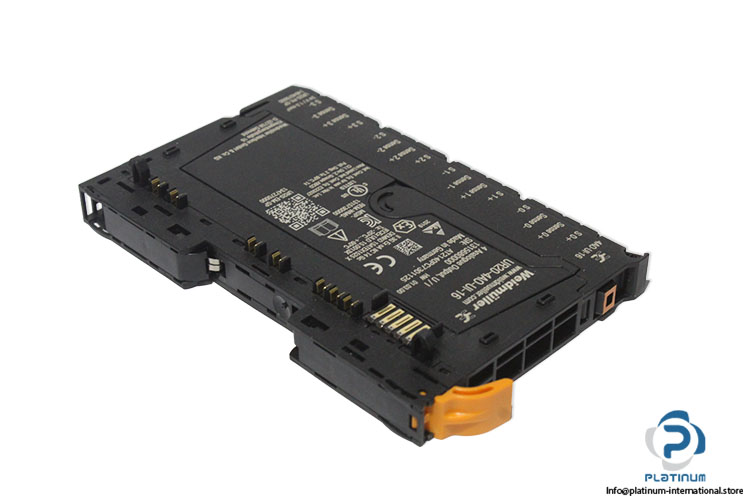

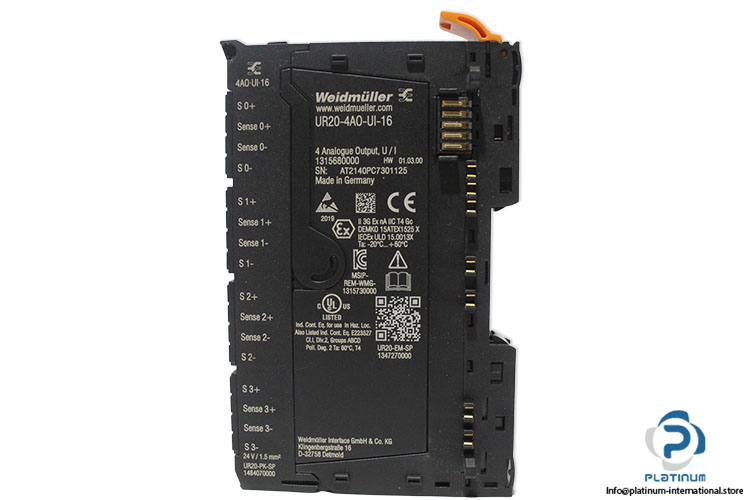

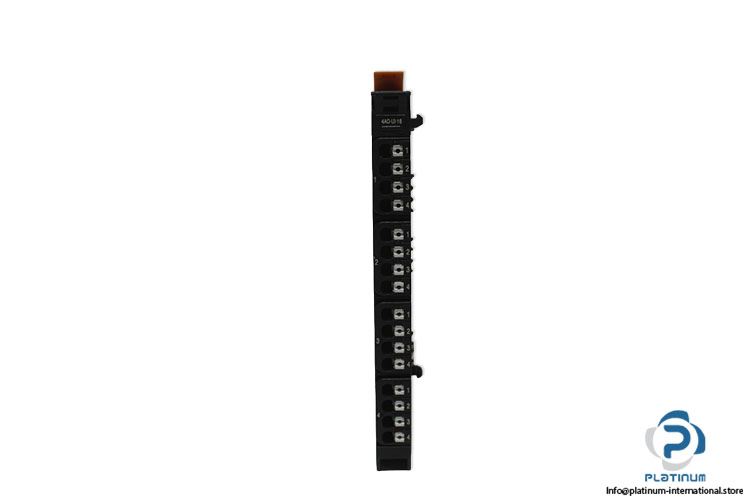

U-Remote Module The Weidmüller UR20-4AO-UI-16 is a compact 24 V DC U-Remote module designed for reliable remote I/O and industrial automation applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

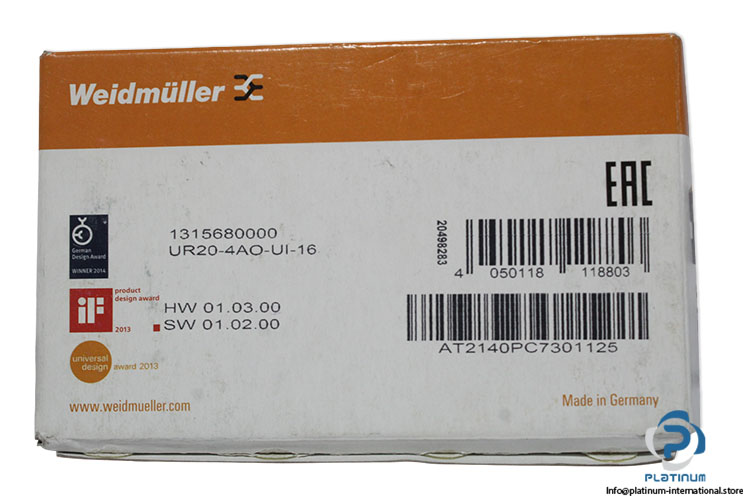

| Part No. | 1315680000 |
| HW | 01.03.00 |
| SW | 01.02.00 |
| Code | AT2140PC7301125/4050118118803 |
| Resolution | 16 Bit |
| Response time | 1 ms / 4 channels |
| Actuator supply min. | 0 Ma,nominal:185 mA,max.:185 mA |
| Load impedance current | 600 O |
| load impedance voltage | > 1 kO (at >50 °C ambient temperature, max. total sensor current = 25 mA) |
| Max. error between T min. and T max. in FSR | 220 % |
| Number analogue output | 4 |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions | 76 x 120 x 11.5 mm |
| Explosion proof | ex |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100807 |
| Weight | 0,11 |
