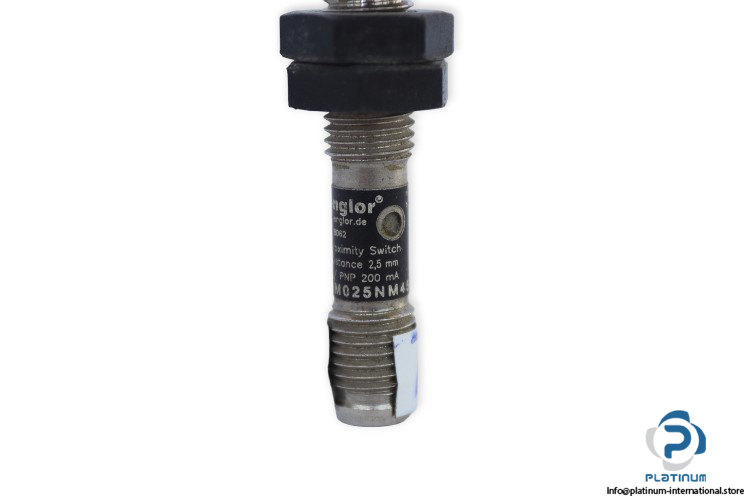

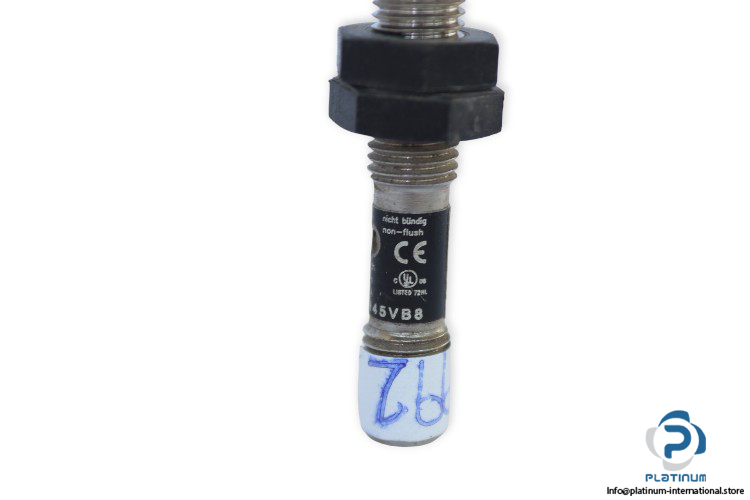

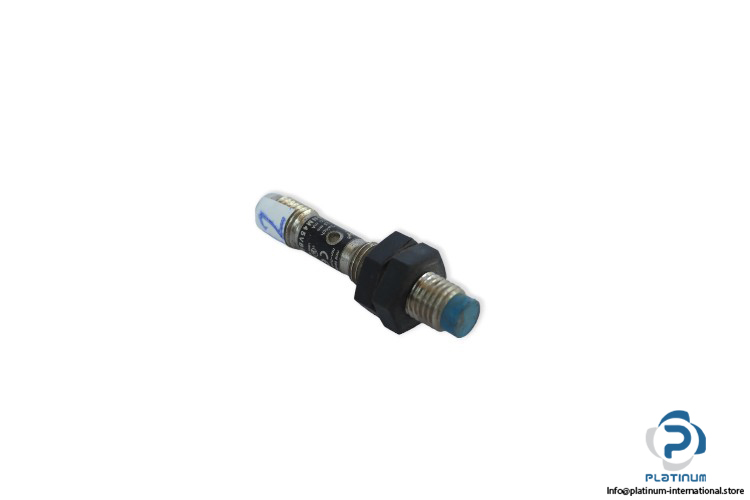

Wenglor IM025NM45VB8 Inductive Proximity Sensor
Manufacturer: WENGLOR
Type: Inductive Proximity Sensor
Model: IM025NM45VB8
Part No.: 1040763
Sensing Range: 2.5 mm
Supply Voltage: 10 … 30 V DC
Switching Output: PNP Normally Open (NO)
Switching Output Current: 200 mA
Connection Type: Connector M8x1, 3-Pin
Housing Material: CuZn, Nickel-Plated
Protection Class: IP67
Length, Diameter: 45, 8 mm
Operating Temperature: -25 … 80 °C
