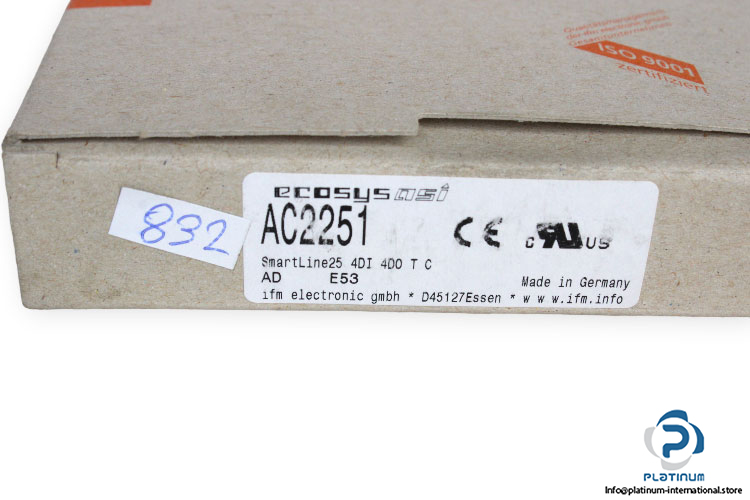

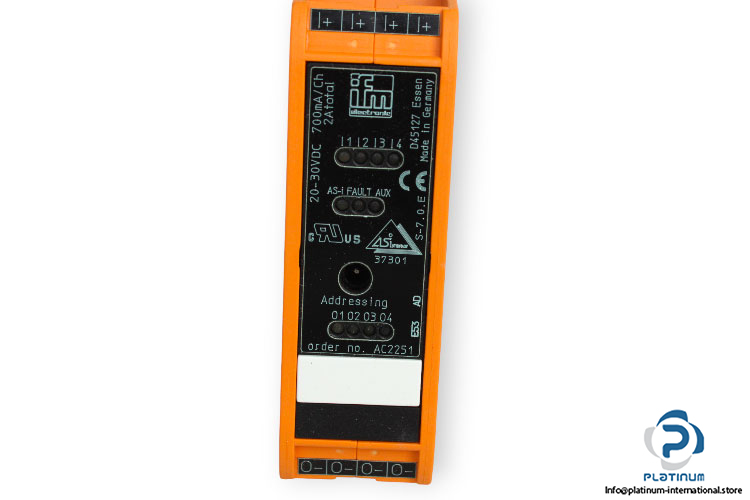

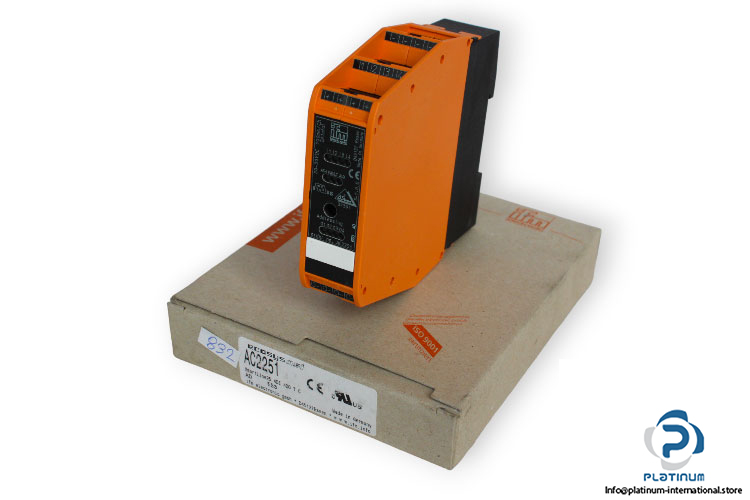

IFM AC2251 Interface Control Cabinet Module
Manufacturer: IFM
Type: Interface Control Cabinet Module
Model: AC2251
Features:
–For use in control cabinets
-Simple and fast wiring by means of cage clamps
-Particularly space-saving design
-Double terminals for looping through the voltage supply
-Clearly visible powerful LEDs for displaying operation, switching status and function
Operating voltage: 26.5 … 31.6 V DC
Max. current consumption from AS-i [mA]: 250 mA
Voltage supply: 20 … 30 V DC
Input current High: 6 … 10 mA
Input current Low: 0 … 2 mA
No. of digital input (DI): 4
No. of digital output (DO): 4
Input circuit of digital inputs: PNP
Pollution degree: 2
Ambient temperature: -25 … 70°C
Protection degree: IP20
Type of mounting: mounting on DIN rail
