Rosemount 1151GP9S22D6L4B9C6 Gage Pressure Transmitter
इस्तेमाल किया हुआ
स्टॉक में उपलब्ध2 यूनिट्सभेजने के लिए तैयार
449,00$
Gage Pressure Transmitter
The Rosemount 1151GP9S22D6L4B9C6 Gage Pressure Transmitter offers precise pressure measurement up to 3000 PSI, 4“20 mA output, and includes the 1151 SMART Electrical Insert for enhanced compatibility and performance.01151-0934-00041151GP9S22D6L4B9C6207003000316L4-2042.4AluminumElectricalFillFluidGageHousingIndustrialinsertInstIP66kPamAMeasurementOutputPressureProtectionPSIRosemountSiliconSmartSSTTransmitterVDC
नया
स्टॉक में उपलब्ध 595,00$
यह उत्पाद ब्रांड न्यू भी उपलब्ध है
नई संस्करण देखें →
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी

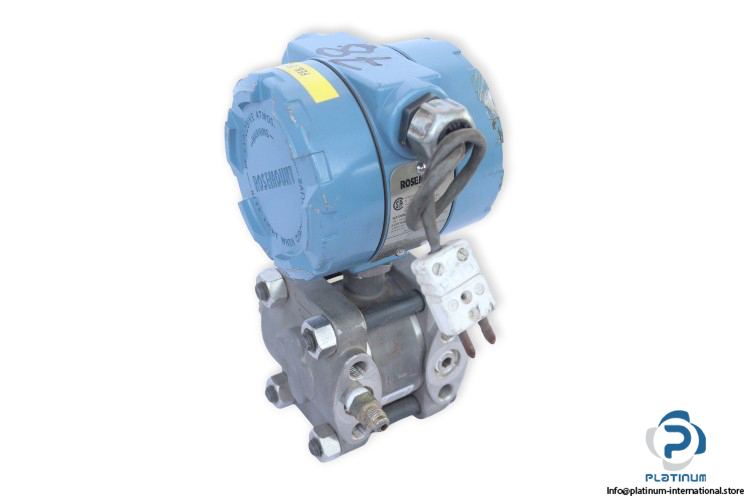

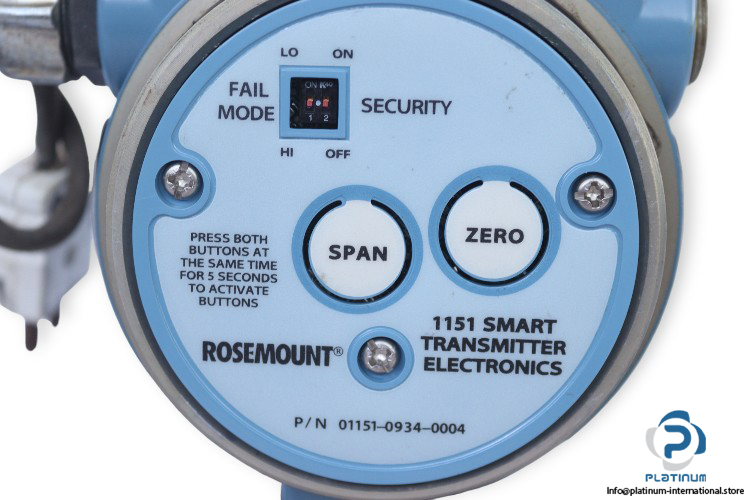

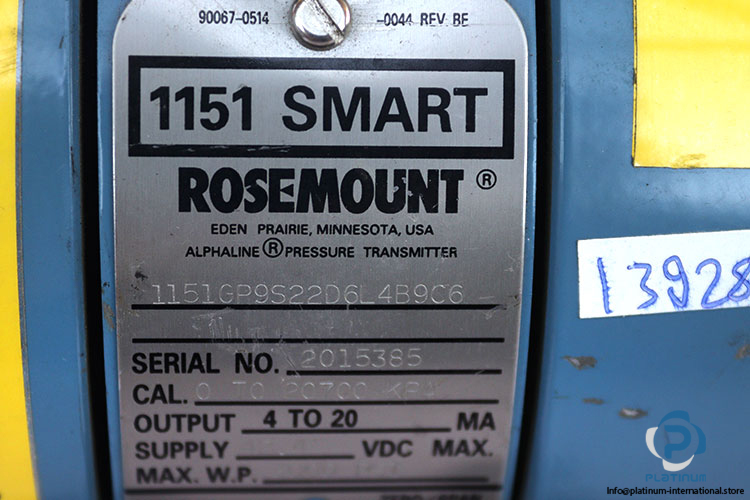

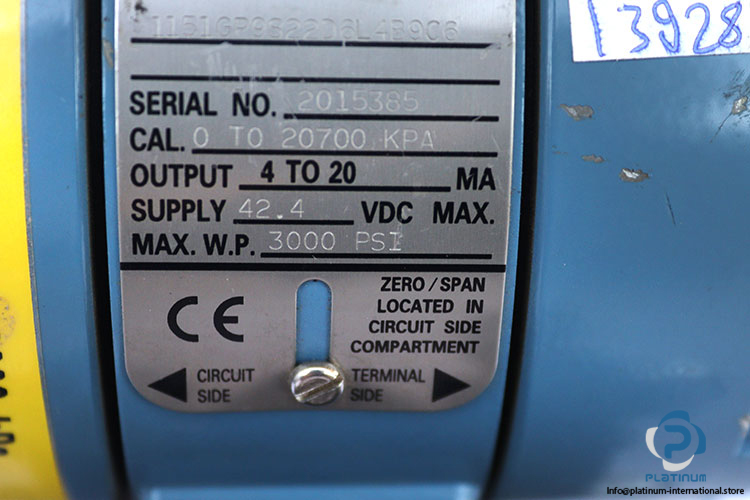

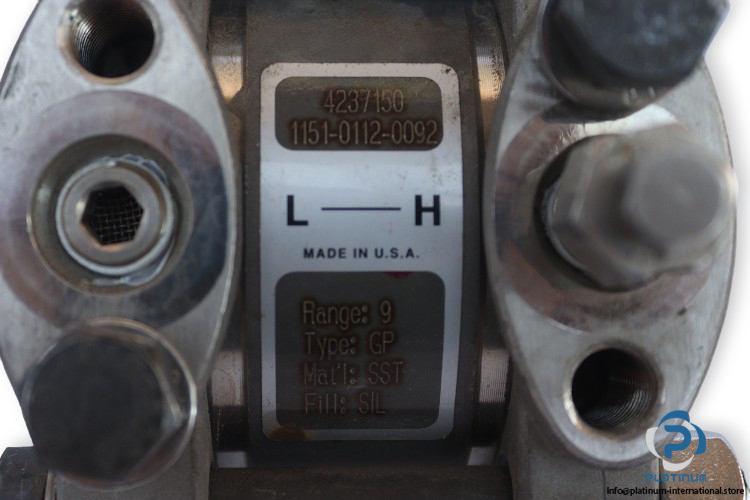

Rosemount 1151GP9S22D6L4B9C6 Gage Pressure Transmitter with 1151 SMART Electrical Insert
The Rosemount 1151GP9S22D6L4B9C6 is a high-accuracy gage pressure transmitter designed for industrial pressure measurement in demanding environments. It includes a Rosemount 1151 SMART Electrical Insert, ensuring enhanced performance and compatibility.
Manufacturer: ROSEMOUNT
Type: Gage Pressure Transmitter
Model: 1151GP9S22D6L4B9C6
Material:
Attachment:
| Measure Pressure Limit | 3000 PSI / 20700 kPa |
| Supply Voltage | 42.4 V DC |
| Output Current | 4 / 20 mA |
| Fill Fluid | Silicon |
| Housing | Aluminum |
| Isolating Diaphragm | 316L SST |
| Flanges/Adapters | 316 SST |
| O-Ring/Bolting | 316L SST |
| Protection Class | IP66 |
| Temperature Range | -40 / 85°C |
| Dimensions | 229 x 114 x 114 mm |
| Part No. | 01151-0934-0004 |
