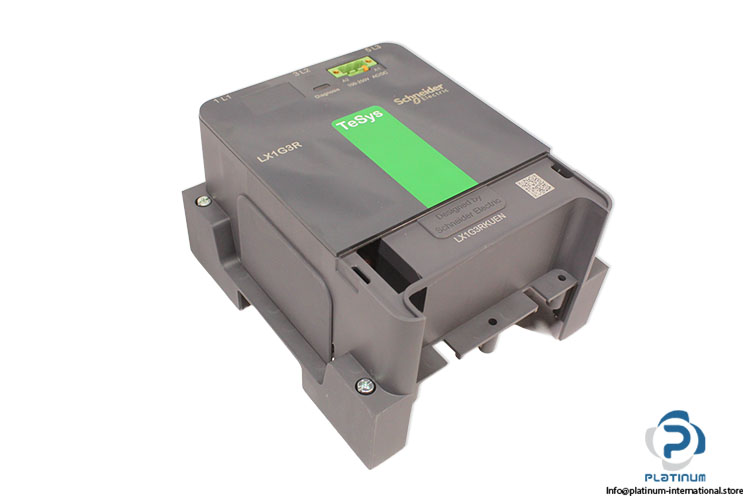

Schneider LX1G3RKUEN Control Module
नया
स्टॉक में उपलब्ध1 यूनिटभेजने के लिए तैयार
Control Module Schneider TeSys LX1G3RKUEN control module with 3P contactor coil design, wide AC/DC control voltage range, and durable construction for industrial control and automation systems.
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी
| SN | 3606481946317 |
| Code | LJ-2024-W45-4/LX1G3RKUEN |
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1G |
| Poles description | 3P |
| Range compatibility | TeSys G LX1G contactor coil |
| Product compatibility | LC1G265...330 |
| [Uc] control circuit voltage | 100...250 V AC/DC 50/60 Hz |
| Operating time | 20...35 ms opening/40...55 ms closing |
| Mechanical durability | 5 Mcycles |
| Maximum operating rate | 600 cyc/mn 60 °C |
| Coil technology | Built-in bidirectional peak limiting |
| Control circuit voltage limits | Operational: 0.8...1.1 Uc (at 60 °C) |
| Drop-out | 0...0.45 Uc (at 60 °C) |
| Immunity to radiated radio-electrical interference - test level | 20 V/m conforming to EN/IEC 61000-4-3 |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Ambient air temperature for operation | -25…60 °C |
| Height | 167.0 mm |
| Width | 140.0 mm |
| Depth | 93.0 mm |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099241 |
| Weight | 2 |
