West MLC9000+Z4660 Single Loop Controller Module
नया
स्टॉक में उपलब्ध1 यूनिटभेजने के लिए तैयार
Single Loop Controller Module
WEST MLC9000+Z4660 single loop controller supporting thermocouple, RTD, and DC linear inputs, designed for precise temperature and process control in industrial applications.
विशाल भंडार
वैश्विक शिपिंग
विशेषज्ञ सहायता
गुणवत्ता की गारंटी

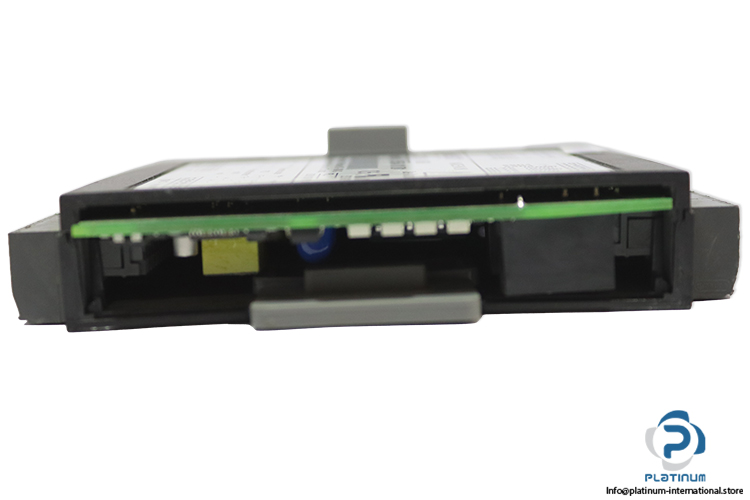

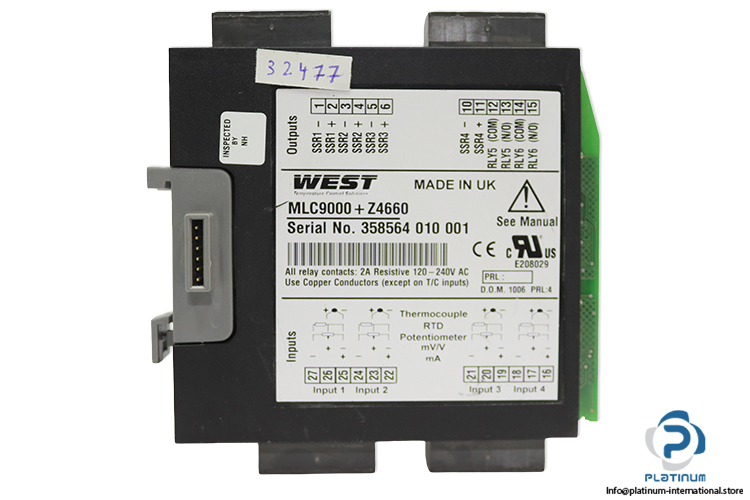

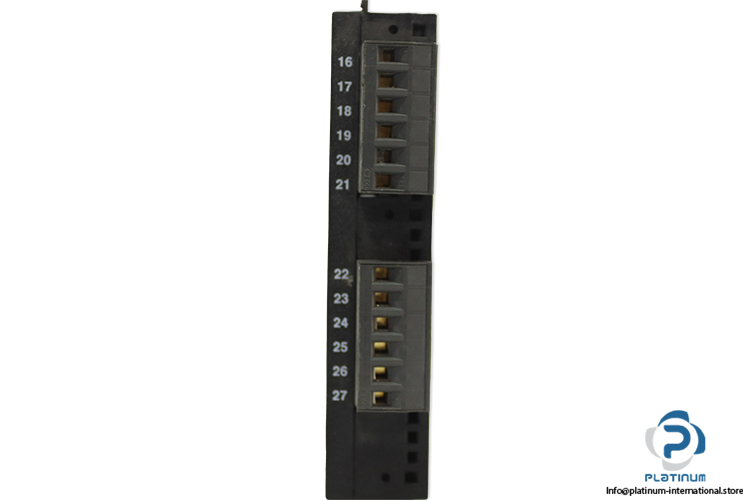

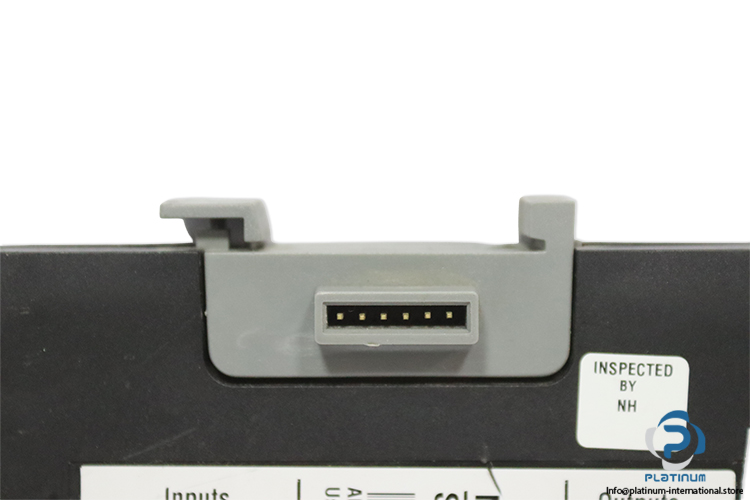

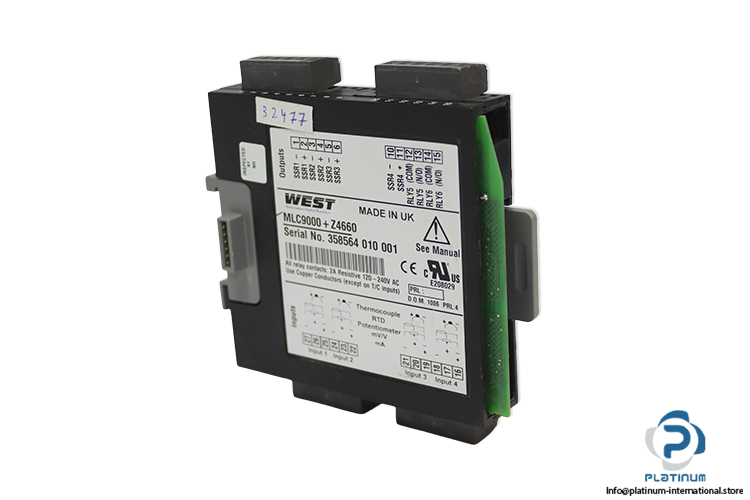

WEST MLC9000+Z4660 Single Loop Controller Module
The WEST MLC9000Z4660 is a versatile single loop controller module designed for precise temperature and process control applications. It supports a wide range of sensor inputs and control outputs, making it suitable for industrial automation, thermal processes, and DC signal control systems.
Manufacturer: WEST
Type: Single Loop Controller Module
Model: MLC9000+Z4660
Part No.: C412.00.016.041 / HL3 1223 313859
| Function | One loop temperature or DC process input, type and scale user selectable |
| Thermocouple Inputs | B, N, J, R, K, S, L, T |
| Thermocouple Range | -240 / 1759°C (-400 / 3198°F), dependent on T/C type |
| RTD Inputs | 3-Wire PT100, NI120 |
| RTD Range | -199.9 / 800.3°C (-327.3 / 1472.5°F) |
| DC Linear Inputs | 0“20 mA, 4“20 mA, 0“50 mV, 10“50 mV, 0“5 V, 1“5 V, 0“10 V, 2“10 V |
| DC Linear Scale | -32000 / 32000 |
| Input Sample Rate | 10 Hz (100 msec) |
| Sensor Break Detection | Detected within two seconds; control outputs turn off (0% power); alarms activate except heater break alarms |
| Heater Break Alarm Function | Optional; monitors heater current for high, low, or short circuit conditions |
| Heater Current Input | 0 / 50 mA, 0 / 60 mA sinusoidal RMS from current transformer |
| Heater Current Scaling | 0.1 / 1000 AAC |
| Relay Outputs | SPST contact |
| Relay Rating | 2 A resistive @ 120 / 240 VAC |
| SSR Driver Outputs | 12 VDC nominal (10 V minimum), up to 20 mA |
| SSR Isolation | Isolated from process input and relay outputs; not isolated from similar or linear outputs in the same system |
| Linear Output | Available only on 3-output models |
| Linear Output Resolution | 8 bits in 250 msec, 10 bits in 1 second (typical) |
| Ambient Temperature | 0 / 55 °C |
| Dimensions | 100 x 22 x 120 mm |
