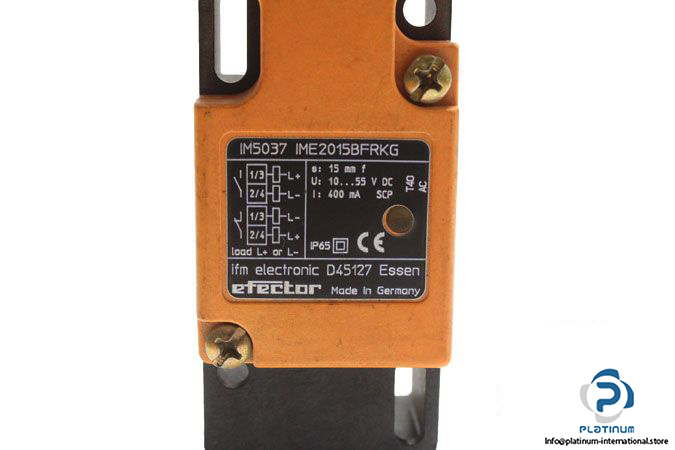

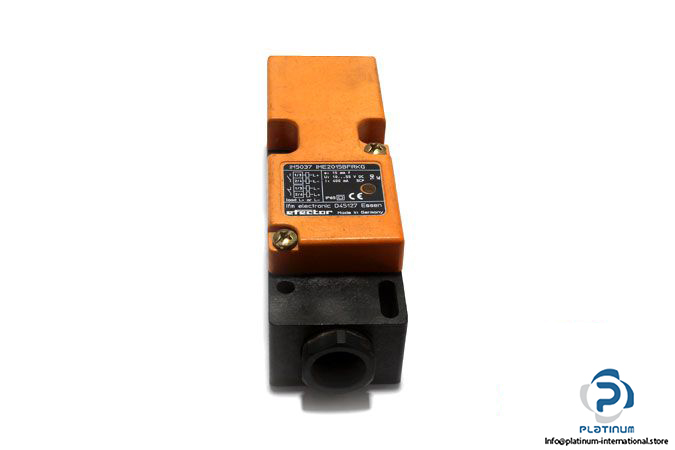

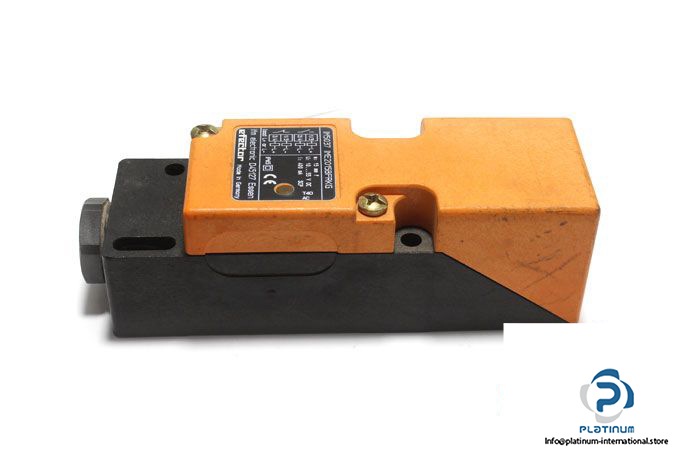

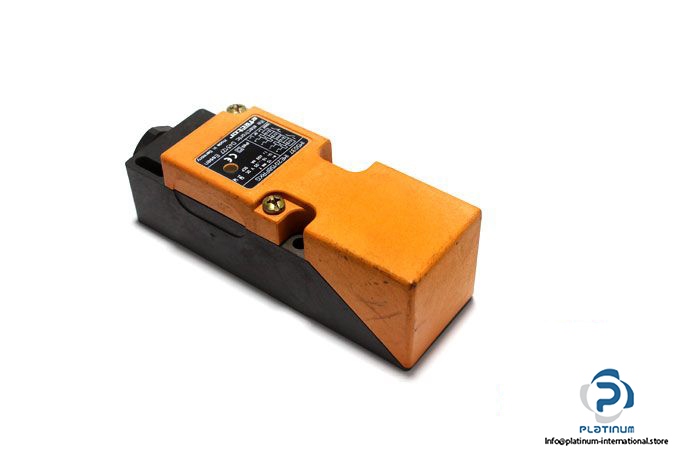

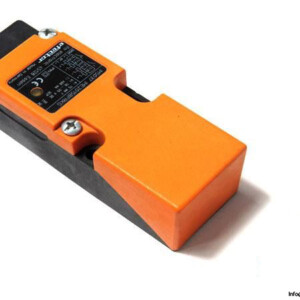

IFM IM5037 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IM5037

MRN: IME2015BFRKG

Sensing Range: 15 mm

Real Sensing Range:  15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 10 … 55 V DC

Voltage Drop max.: 4.6 V

Switching output current: 400 mA DC

Switching frequency: 250 Hz

Electrical Design: PNP/NPN

Output Function: Normally open, normally closed (selectable)

Connector type: Cable gland: M20 X 1.5

Protection Class: II

Enclosure rating: IP65

Housing: Rectangular

Ambient Operating temperature: -25 … 80 °C

Dimensions: 40 x 40 x 120 mm

Material: PPE

Mounting: Flush mountable

Weight: 189 g
