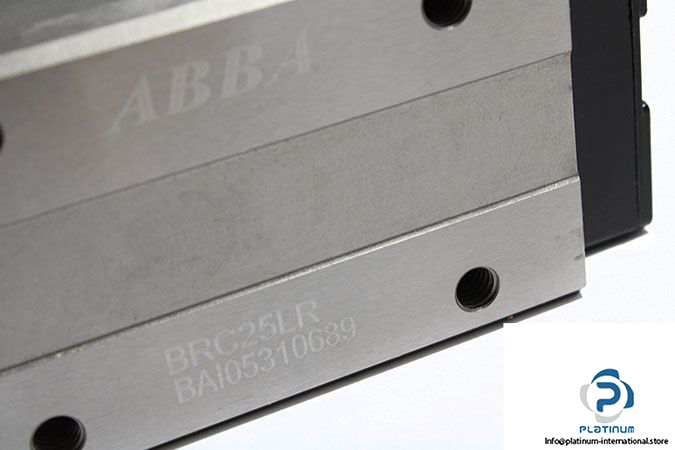

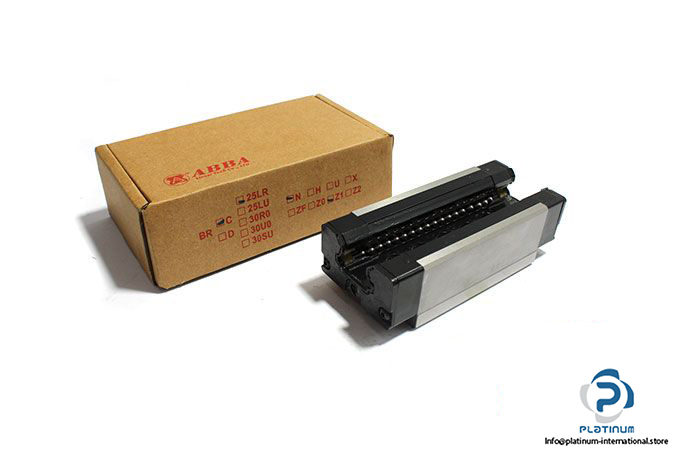

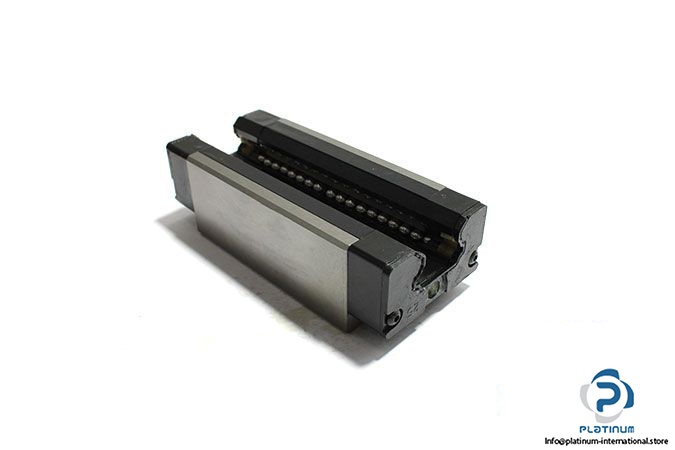

Abba BRC25LR Linear Guideway Block

Manufacturer: ABBA

Type: Linear Guideway Block BRC

Model: BRC 25 LR

Size: 25 mm

Block Type: Slim-line block, Extended length, Extended height

Preload class: Z1, Light preload

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

Basic Load Ratings:

Dynamic C: 2600 kgf

Static C₀: 4600 kgf

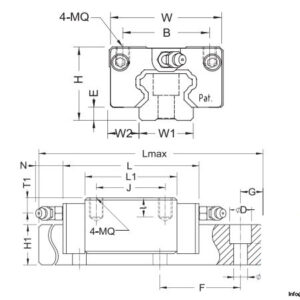

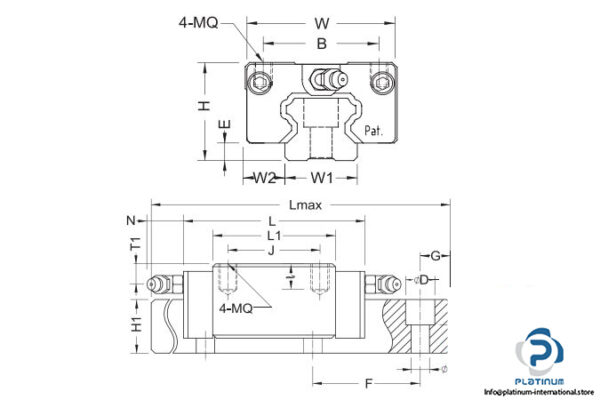

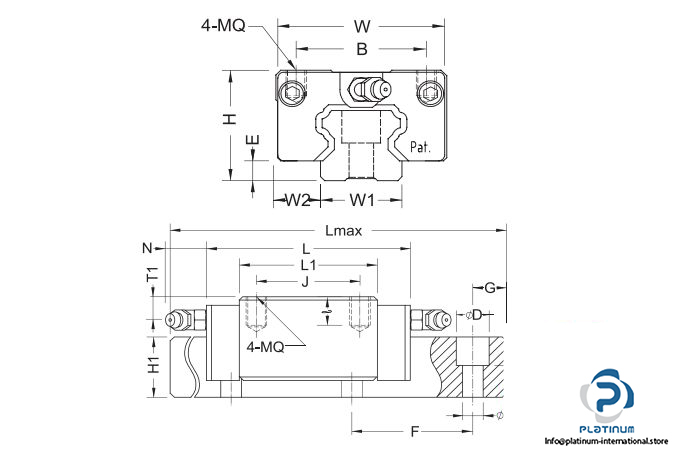

Dimensions

Total Height H: 40 mm

Block Width W: 48 mm

Block Length L: 110.1 mm

Weight: 0.73 kg
