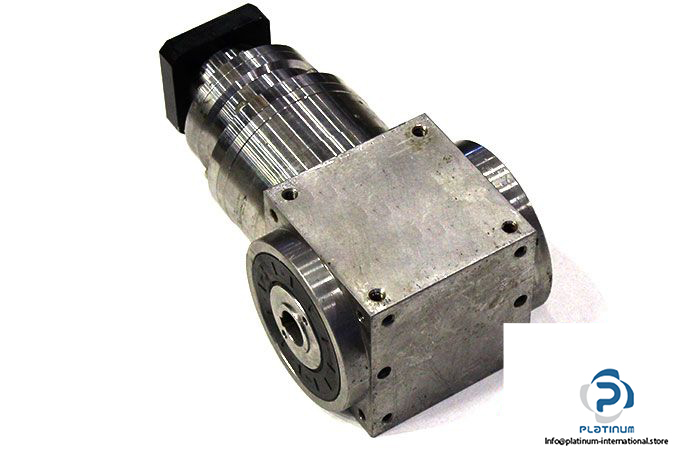

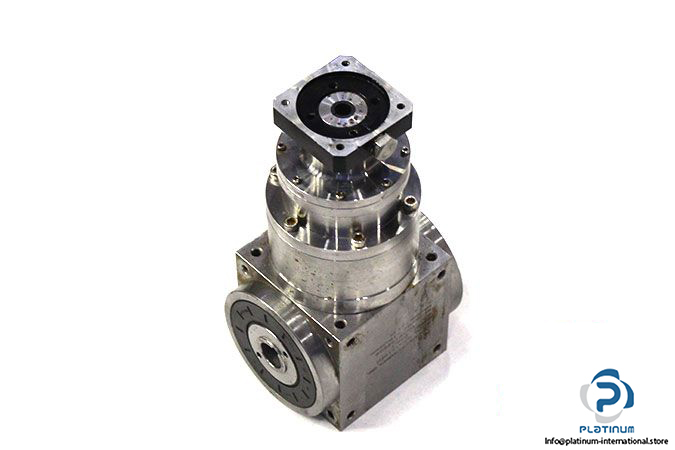

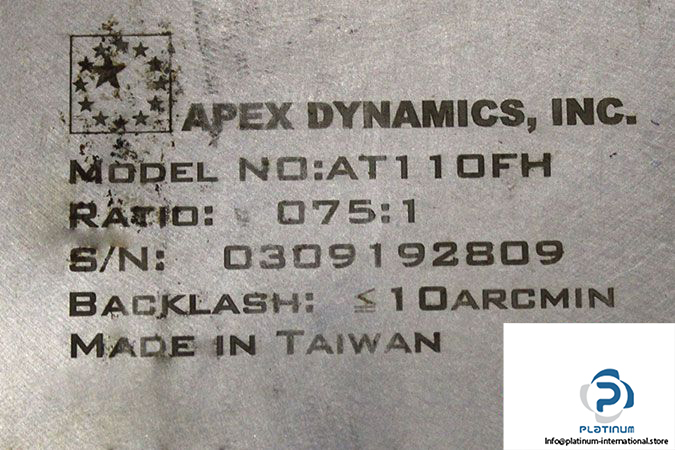

Apex Dynamics AT110FH 75:1 Stainless Steel Spiral Bevel Gearbox
Manufacturer: Apex Dynamics
Type: Stainless Steel Spiral Bevel Gearbox
Model: AT170FH
Features
- Spiral bevel gearbox with output hollow shaft thru with keyway. Input with motor adapter
- Stainless steel housing, aluminum black anodized motor adapter plate
- Stainless steel hollow output shaft with thru keyway
- Spiral bevel gears, planetary part with spur gears
Stages: 3-stage
Size:
Nominal Output Torque: 120 Nm
Low Backlash: ≤ 10 arcmin
High Efficiency: ≥ 94%
Max. Acceleration Input Speed: 8000 Revolution Per Minute (rpm)
Mass Moment of Inertia: 2.80 kg*cm2
Ratio: 075:1
Operating Temperature: -10…90 °C
Weight: 14.17 kg
