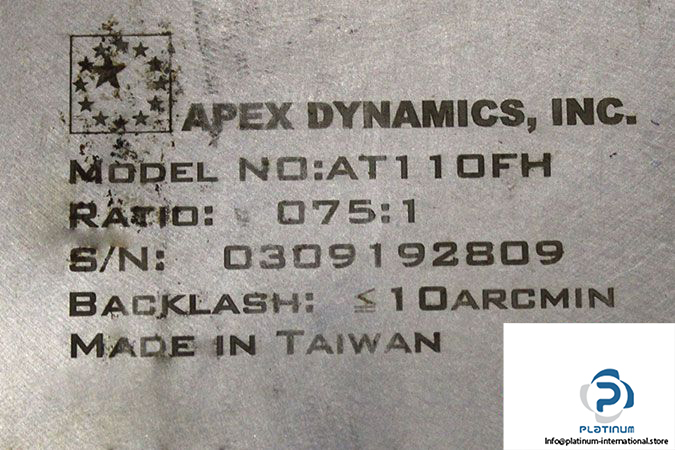

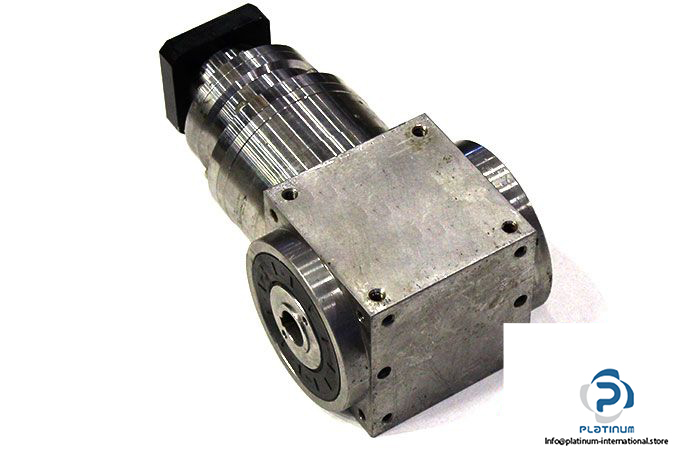

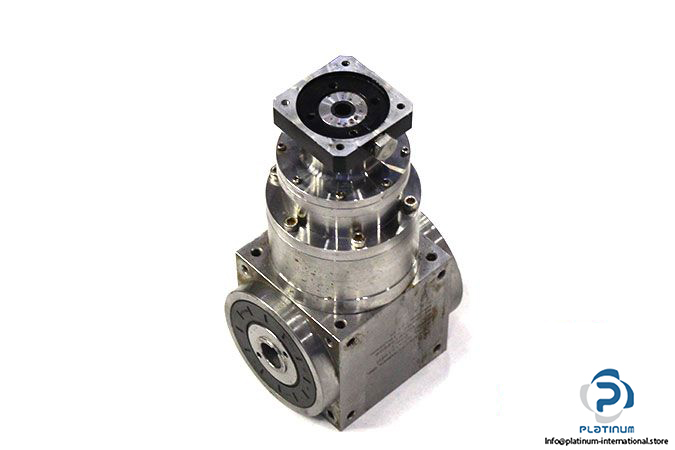

Apex Dynamics AT110FH 75:1 Stainless Steel Spiral Bevel Gearbox

Manufacturer: Apex Dynamics

Type: Stainless Steel Spiral Bevel Gearbox

Model: AT170FH

Features

• Spiral bevel gearbox with output hollow shaft thru with keyway. Input with motor adapter
• Stainless steel housing, aluminum black anodized motor adapter plate
• Stainless steel hollow output shaft with thru keyway
• Spiral bevel gears, planetary part with spur gears

Stages: 3-stage

Size:

Nominal Output Torque: 120 Nm

Low Backlash: ≤ 10 arcmin

High Efficiency: ≥ 94%

Max. Acceleration Input Speed: 8000 Revolution Per Minute (rpm)

Mass Moment of Inertia: 2.80 kg*cm²

Ratio: 075:1

Operating Temperature: -10…90 °C

Weight: 14.17 kg
