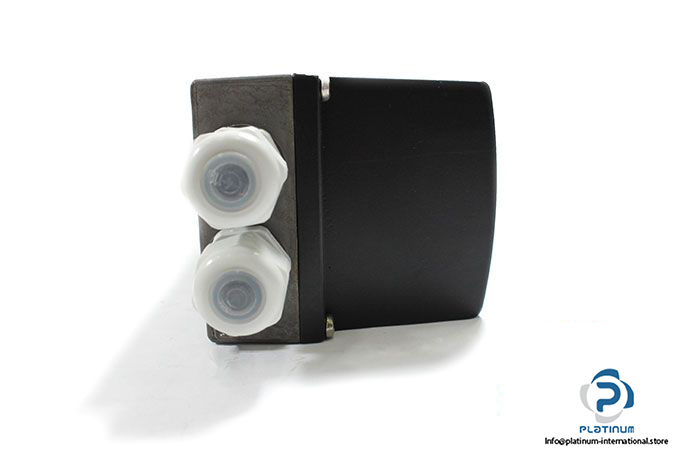

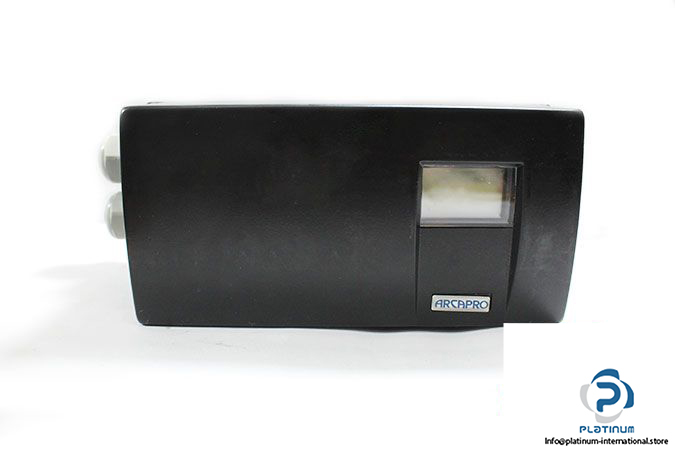

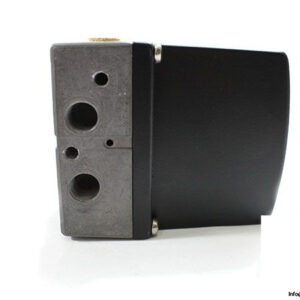

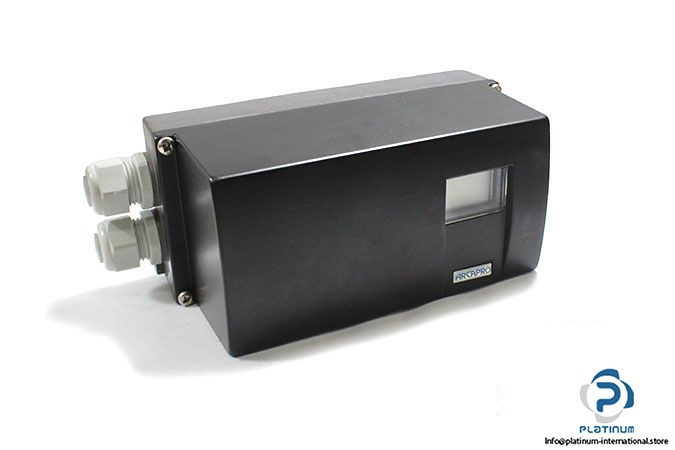

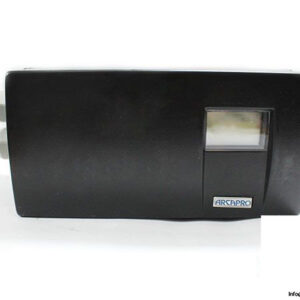

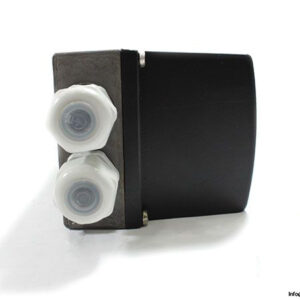

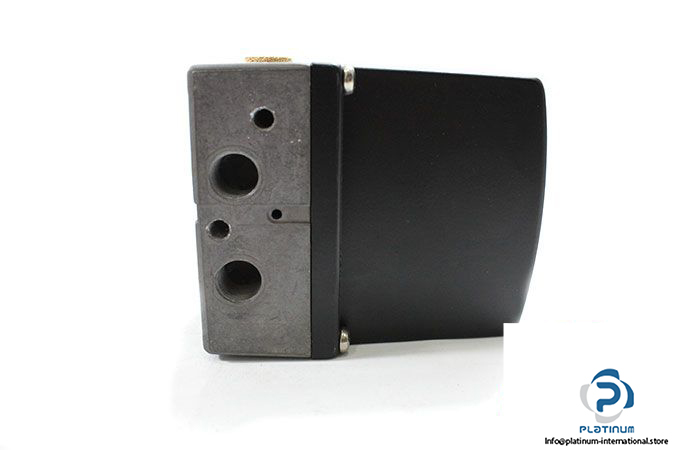

Arca 827A.E2-A00-M10-G Positioner

Manufacturer: ARCA REGLER

Type: ELECTROPNEUMATIC POSITIONER

Series: 827A

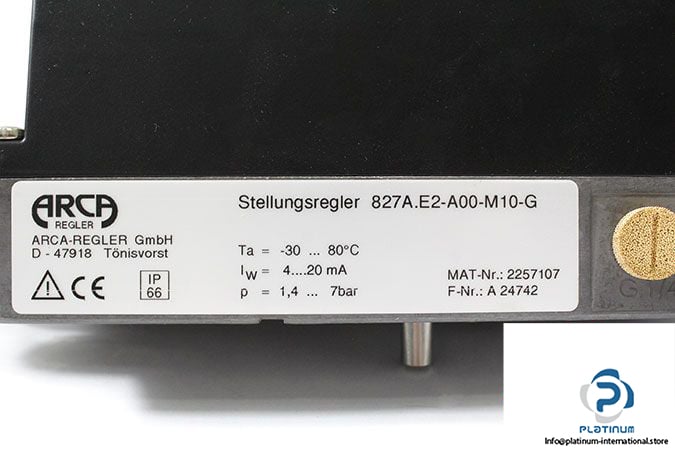

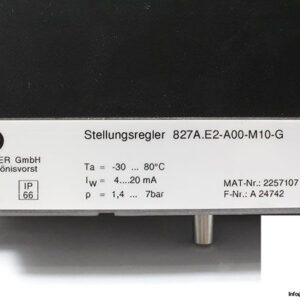

Model: 827A.E2-A00-M10-G

MAT. No.: 2257107

Fab. No.: A 24742



Used for: Specific Control Tasks

Features:

• Compact design
• High mechanical strength
• No sensitive piping
• No hysteresis
• Minimal wear
• All diagnostic data readable on the device or in
• Self-monitoring of the complete valve
• Precise planning of maintenance

Housing material: Aluminium, stainless steel, polycarbonate

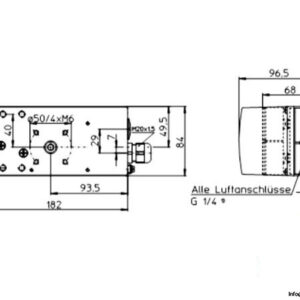

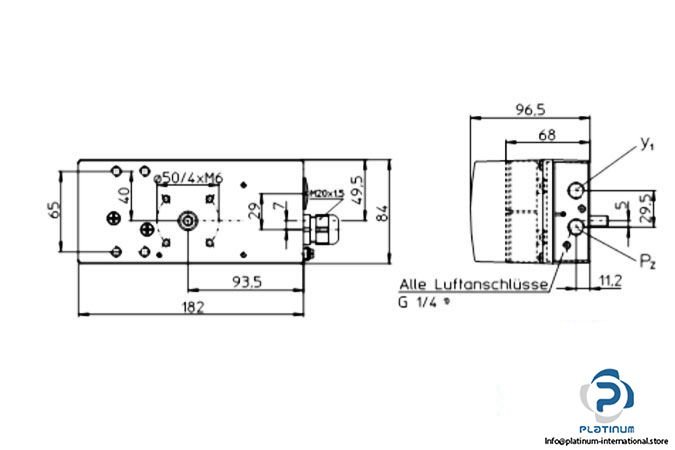

Dimensions ( Length x Width x Height ): 182 mm x 84 mm x 96.5 mm

Air supply Pressure: 1.4 … 7 bar

Input signal range ( Iw ): 4 … 20 mA

Sampling time: 10 ms

Pneumatic Connection: G 1/4

Basic device connection: 2- Wire

Analogue output: analog module

Mechanical actuator: Standard

Protection Class: IP66

Temperature: -30 … 80 °C

Weight: 1.46 kg
