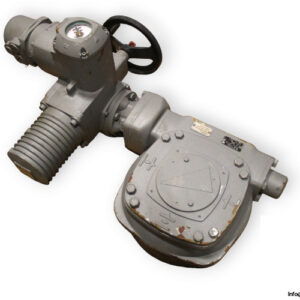

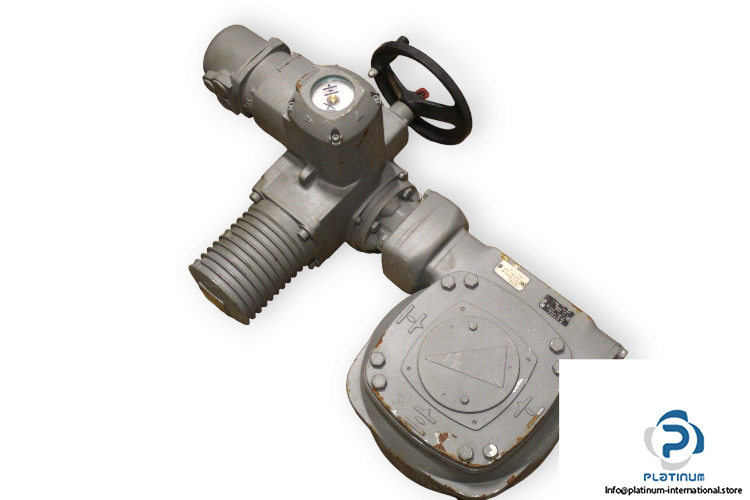

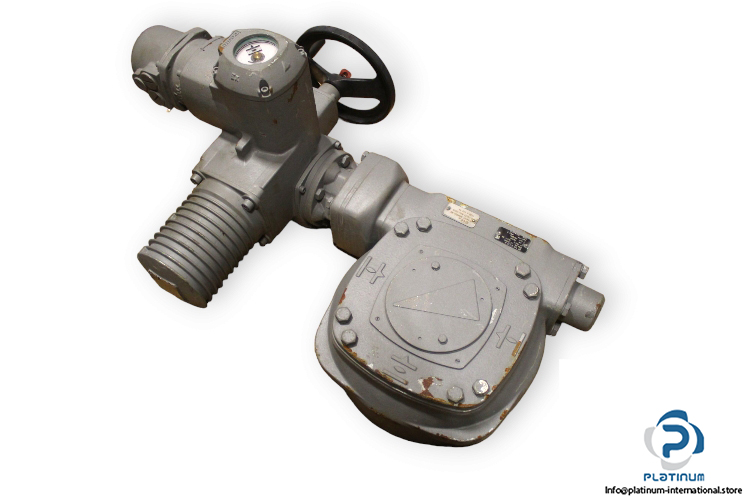

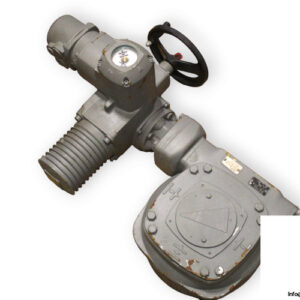

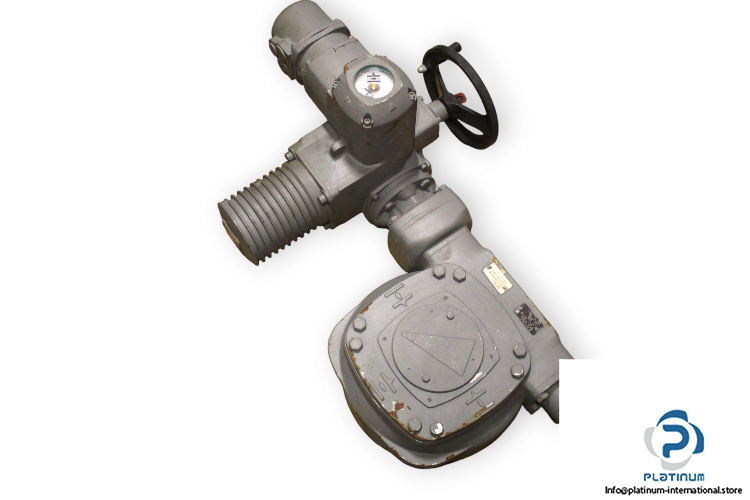

AUMA SAExC 10.1-F10 MULTI-TURN ACTUATOR

Name: AUMA SAExC 10.1-F10 MULTI-TURN ACTUATOR
SKU: 2005410
Availability: LimitedAvailability

auma-gs-125-3-f25-n-lever-actuator-used_1

auma-gs-125-3-f25-n-lever-actuator-used_2

auma-gs-125-3-f25-n-lever-actuator-used_3

auma-gs-125-3-f25-n-lever-actuator-used_4

auma-gs-125-3-f25-n-lever-actuator-used_5

auma-gs-125-3-f25-n-lever-actuator-used_6

Used

Available on request

Manufacturer:

Auma

Type:

Multi-Turn Actuator

Model:

SAExC10.1-F10

Part No.:

13100887

Manufacturer

AUMA

SKU

2005410

Category

Electric Rotary Actuator

Condition

Used

Actuator Auma Electric Explosion IVR Multi-Turn Valve valves

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SAExC10.1-F10
Part No.: 13100887

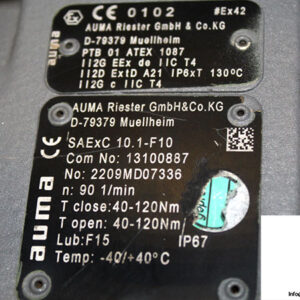

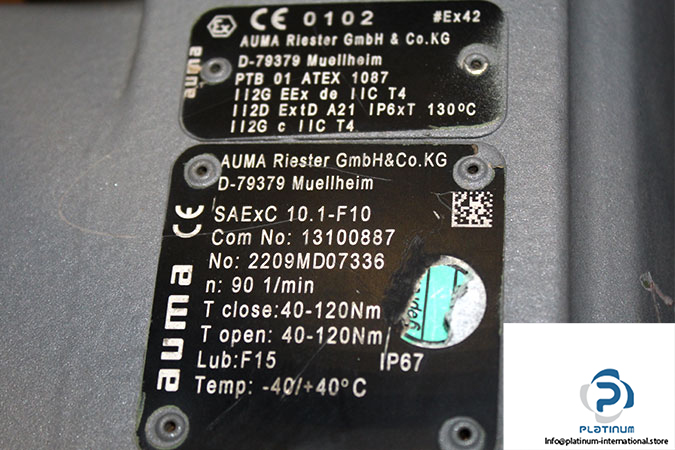

EX Actuator: PTB 01 ATEX 1087 (Ex)

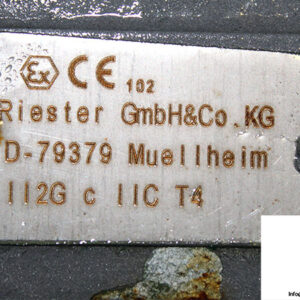

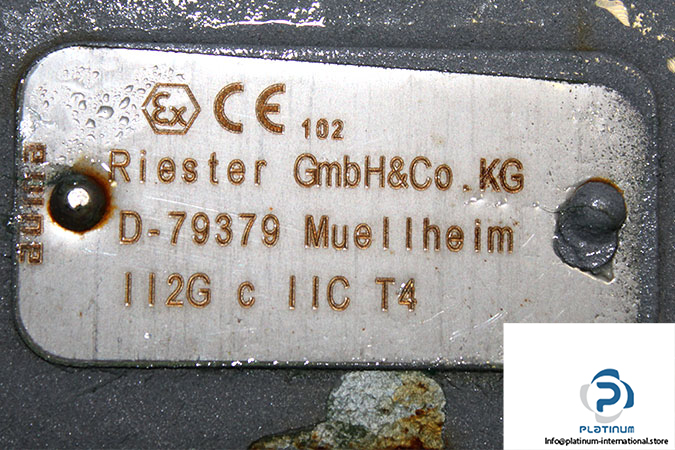

Explosion Protection Actuator: II2G c IIC T4
Type and Size Actuator: SAExC 10.1
Flange Size: F10
Rated Speed [rpm]: 90
Torque Range in Direction Close [Nm]: 40-120
Torque Range in Direction Open [Nm]: 40-120
Enclosure Protection [IP]: 67
Lubrication: F15
Ambient Temperature Range [°C]: -40…+40
EX Actuator: PTB 01 ATEX 1087
Temperature [°C]: 130°

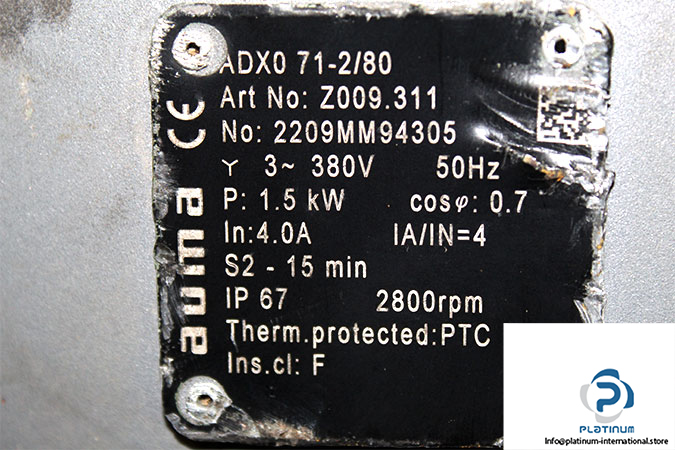

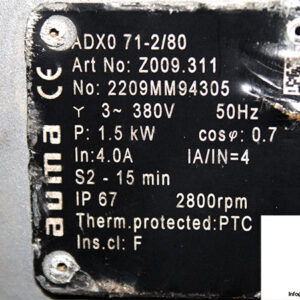

Type AC Motor: ADX0 71-2/80
Article Number: Z009.311
Mains Voltage [V]: 380
Mains Frequency [Hz]: 50
Rated Power [kW]: 1.5
Rated Current [A]: 4.0
Power Factor: 0.70
Rated Speed [rpm]: 2800
Duty: S2 – 15 min
Enclosure Protection [IP]: 67
Thermal Protection: PTC
Insulation Class: F

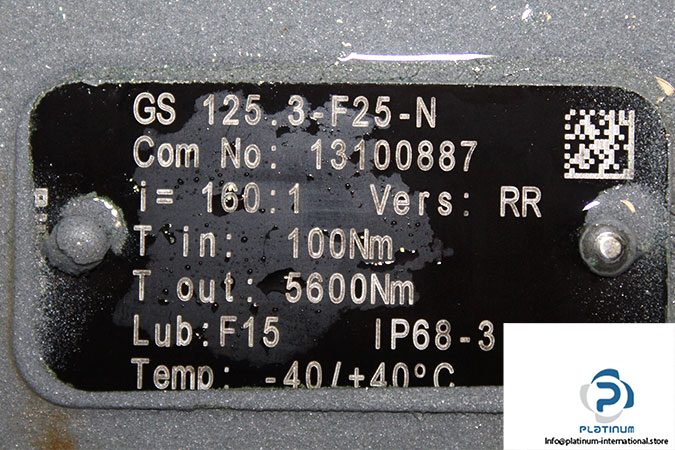

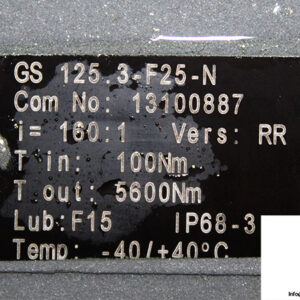

Type Gearbox: GS 125.3-F25-N
Ratio [i]: 160
Versions: RR
Input Torque [Nm]: 100
Output Torque [Nm]: 5600
Protection Class [IP]: 68
Ambient Temperature Range [°C]: -40…+40
