Balluff BES01AW BES 516-324-S49-C Inductive Sensor

In stock1 unitReady to ship

Inductive Sensor

Balluff BES 516 inductive proximity sensor with 1.5 mm sensing range, PNP normally open output, M8 3-pin connector, and stainless steel housing with IP68 protection.

Manufacturer
BALLUFF
SKU
1092185
Category
Others
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

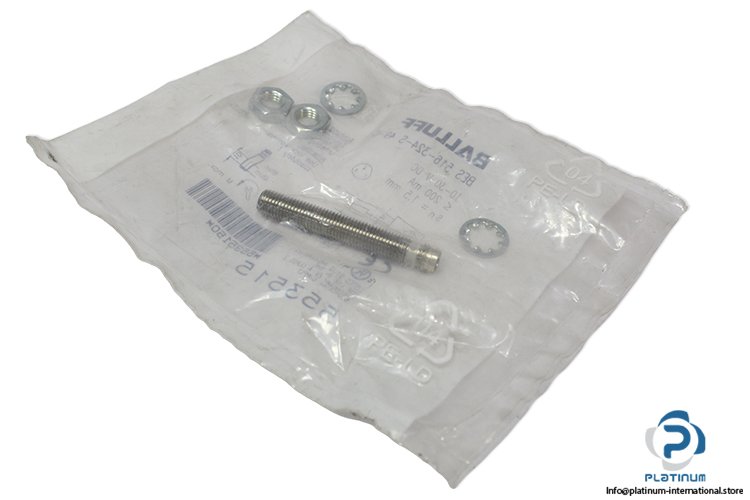

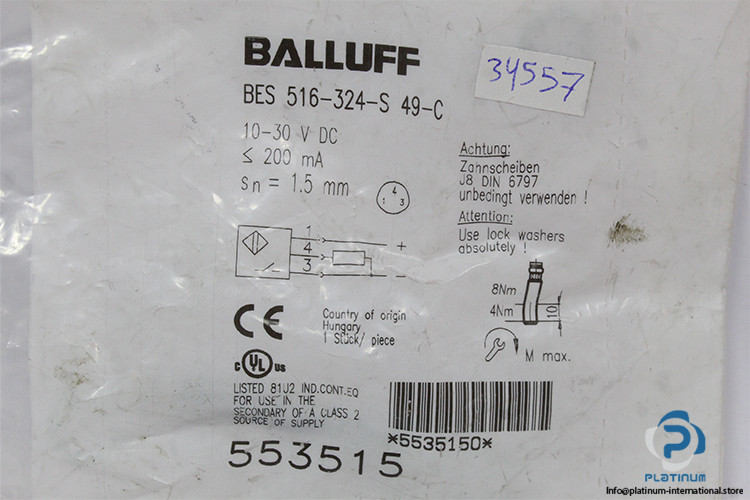

Balluff BES01AW BES 516-324-S49-C Inductive Sensor

The Balluff BES01AW BES 516-324-S 49-C is an inductive proximity sensor designed for precise non-contact detection in industrial automation systems. It features stainless steel housing, high switching frequency, and reliable performance in harsh environments.

Manufacturer: Balluff

Type: Inductive Sensor

Model: BES01AW BES 516-324-S 49-C

Order Code: 553515

Series: BES 516

Sensing Range1.5 mm
Rated Operating Voltage10 / 30 V DC
Rated Current200 mA
ContactPNP Normally Open (NO)
Ready Delay Max.21 ms
Switching Frequency5000 Hz
ConnectionMale Connector, M8x1, 3-Pin
Diameter, Length8, 55 mm
MaterialStainless Steel
Protection ClassIP68
Ambient Temperature-40 ... 85 °C
