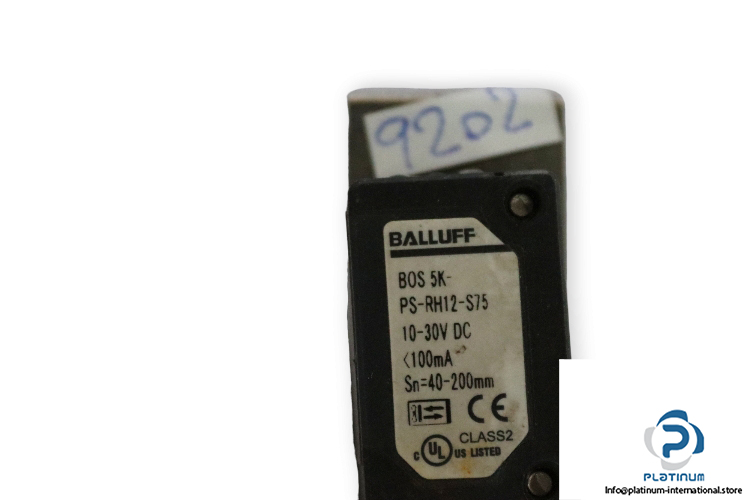

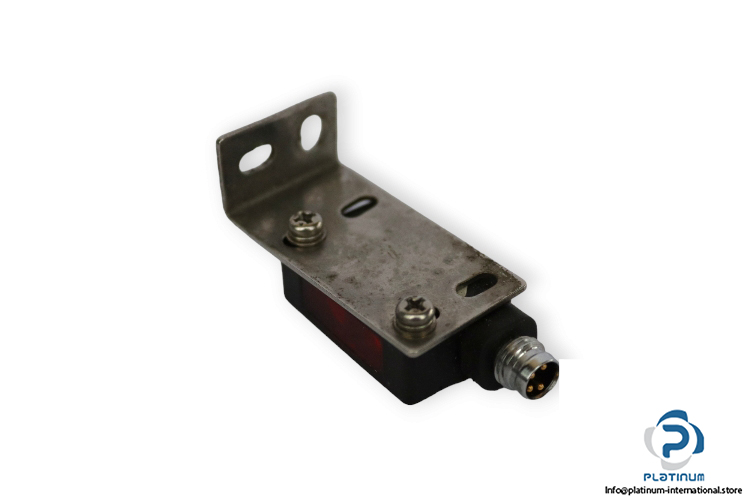

Balluff BOS 5K-PS-RH12-S75 Photoelectric Sensor

Manufacturer: Balluff
Type: Diffuse Photoelectric Sensor with background
Model: BOS 5K-PS-RH12-S75
Order Code: BOS012A
Series: 5K

Operating voltage: 10 … 30 V DC
Rated operating current Ie: 100 Ma
No-load current Io max. at Ue: 30 mA
Sensing range Sn: 40 … 200 mm
Connection: Connector, M8x1-Male, 4-pin
Switching output: normally open (NO) contact
Electrical design: PNP
Principle of optical operation: Diffuse sensor, triangulation
Special optical feature: Background suppression
Housing material: PC,PBT
Light type: LED, red light
Material sensing surface: PMMA
Mounting part: Screw M3
Ambient temperature: -25 … +55°C
Protection Degree: IP67
Dimensions: 10.8 x 43.2 x 19.5 mm
