Beckhoff EL 1002 Digital Input Terminal
New
In stock4 unitsReady to ship
Digital Input Terminal
A compact and explosion-proof digital input terminal designed for precise signal detection in industrial automation systems, supporting reliable operation in harsh and regulated environments.AutomationBeckhoffComponentsControlDigitalEL1002EtherCATExplosionIIndustrialInputModuleØPLCProofSystemsterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

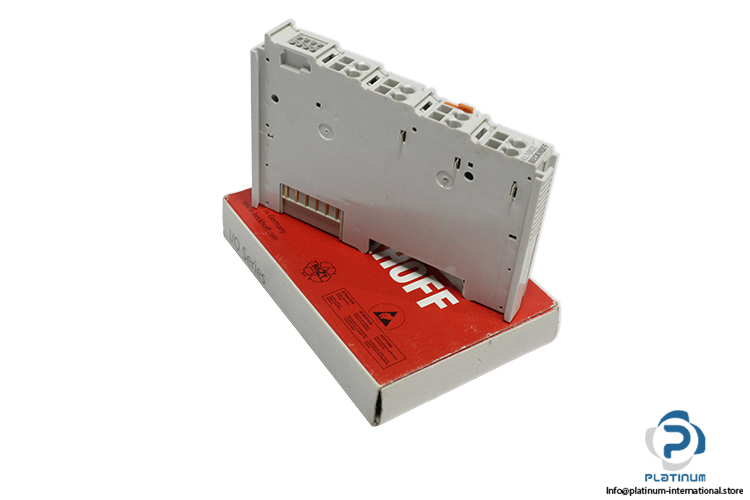

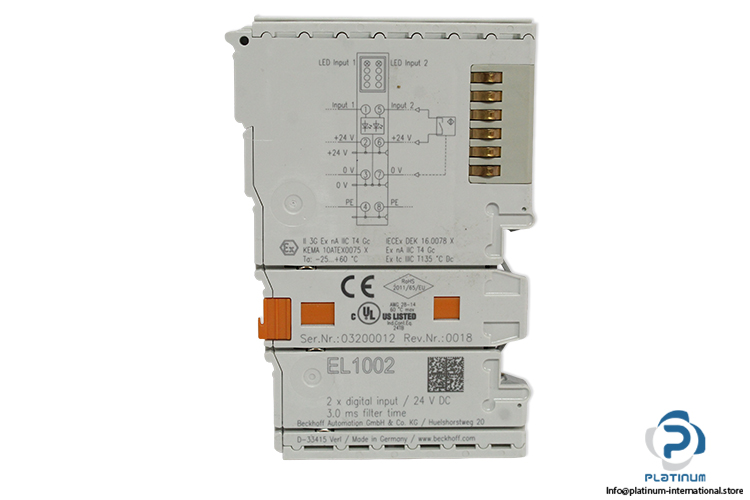

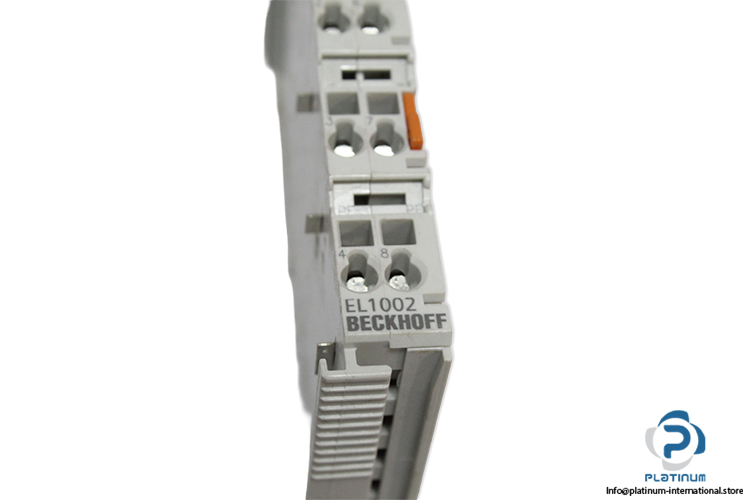

Beckhoff EL1002 Digital Input Terminal
A compact and reliable digital input terminal designed for industrial automation systems requiring precise signal acquisition and robust electrical isolation. The EL1002 supports standard PLC applications and harsh industrial environments, making it suitable for control cabinets and distributed I/O systems. Manufacturer: Beckhoff
Type: Digital Input Terminal
Model: EL1002

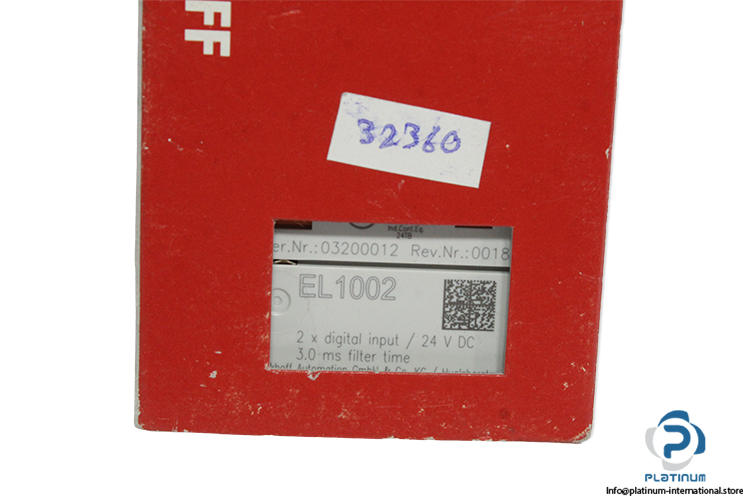

Serial No.: 03200012
Revision No.: 0018
| Connection Technology | 4-wire |
| Specification | EN 61131-2, Type 1/3 |
| Number of Inputs | 2 |
| Nominal Voltage | 24 V DC |
| œ0 Signal Voltage | -3 / +5 V |
| œ1 Signal Voltage | 11 / 30 V |
| Input Current | Typical 3 mA |
| Input Filter | Typical 3 ms |
| Distributed Clocks | “ |
| Current Consumption Power Contacts | Typical 2 mA + load |
| Current Consumption E-Bus | Typical 90 mA |
| Electrical Isolation | 500 V (E-Bus / Field Potential) |
| Configuration | No address or configuration setting |
| Special Features | 4-wire connection |
| Weight | Approx. 50 g |
| Operating Temperature | -25 / +60 °C |
| Storage Temperature | -40 / +85 °C |
| Relative Humidity | 95%, no condensation |
| Vibration / Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity / Emission | EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating / Installation Position | IP20 / variable |
| Plug-In Wiring Level | For all ESxxxx terminals |
| Approvals / Markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Explosion Proof | Yes |
