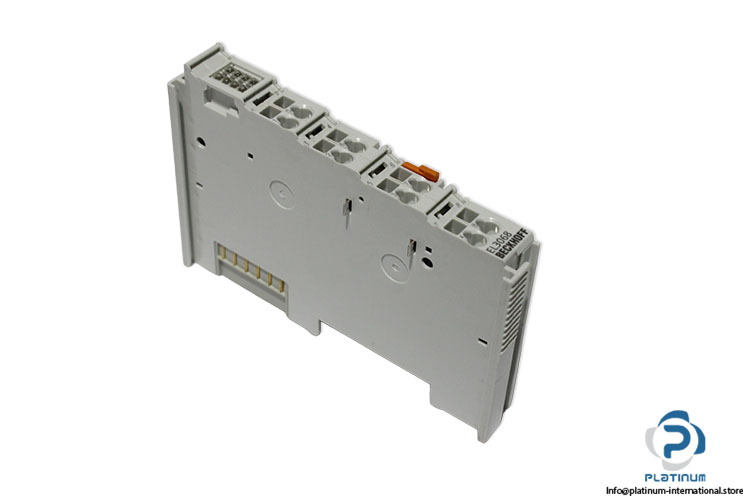

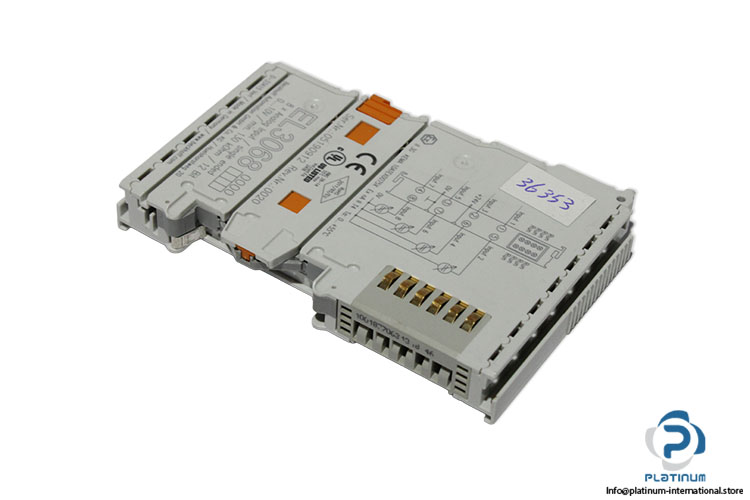

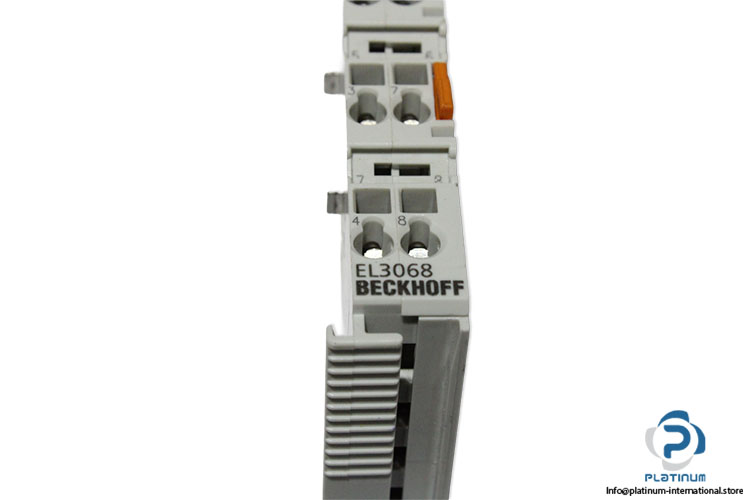

Beckhoff EL3068 Ethercat Terminal
New
In stock3 unitsReady to ship
139,99$
EtherCAT Terminal Beckhoff EL3068 8-channel analog input EtherCAT terminal designed for precise signal acquisition, voltage measurement, and advanced industrial automation applications.
8AcquisitionAnalogAutomationBeckhoffchannelComponentsControlDINEL3068EtherCATI/OIndustrialInputModulePLCrailSignalSystemterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

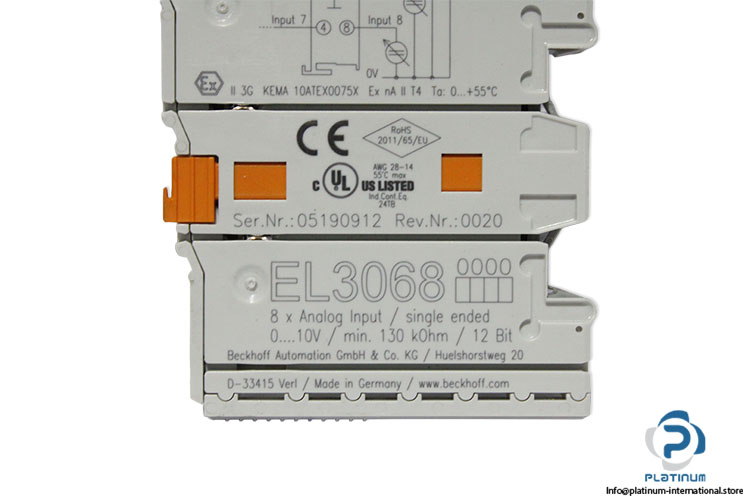

| Serial No. | 05190912 |
| Rev. No. | 0020 |
| No. of analog input (AI) | 8 |
| Ground reference | single-ended (input) |
| Nominal voltage | via the E-bus |
| Signal voltage | 0-10 V |
| Internal resistance | > 130 kohm |
| Input filter limit frequency | 1 kHz |
| Dielectric strength | max. 30 V |
| Conversion time | 1.25 ms default setting, configurable, multiplex |
| Resolution | 12 bits |
| Protection degree | IP20 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption E-bus | typ. 130 mA |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55°C |
| Certificate | CE, cULus |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |

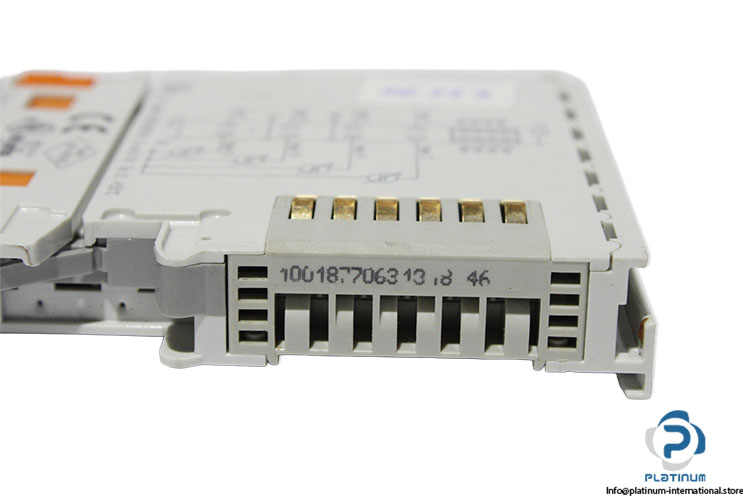

| Terminal No. | 100187706313 18 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097587 |
| Weight | 0,05 |
