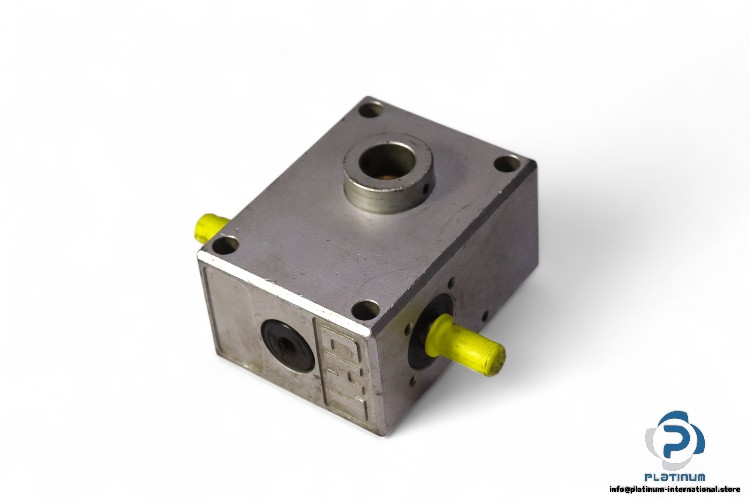

Chiaravalli CHS1 Screw Jack
Used
In stock1 unitReady to ship
screw jack
The CHIARAVALLI CHS1 Screw Jack offers a 500 kg load capacity, 5:1 and 20:1 gear ratios, and reliable performance with a 25.5% efficiency at fast speed for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
CHIARAVALLI CHS1 SCREW JACK
The CHIARAVALLI CHS1 Screw Jack is designed for efficient lifting and load movement, offering high reliability and performance. With a load capacity of 500 kg and gear ratios of 5:1 and 20:1 for fast and normal speeds, this screw jack provides precise control and is built to operate in various industrial conditions.
Manufacturer: CHIARAVALLI
Type: SCREW JACK
Model: CHS1
Technical Specifications
- LOAD daN: 500 Kg
- Tpn Screw Diameter: 18 mm
- Pitch: 4 mm
- Gear Ratios:
- Fast Speed: 5:1
- Normal Speed: 20:1
- Stroke For INPUT REV:
- Fast Speed: 0.80
- Normal Speed: 0.20
- Efficiency:
- Fast Speed: 25.5 %
- Normal Speed: 23.8 %
- Case Material: G25
- Grease Type: Agip Gr Mu Ep2
- Operating Temperature: -5 to 80° C
