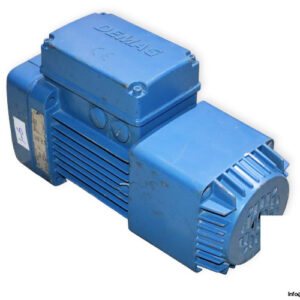

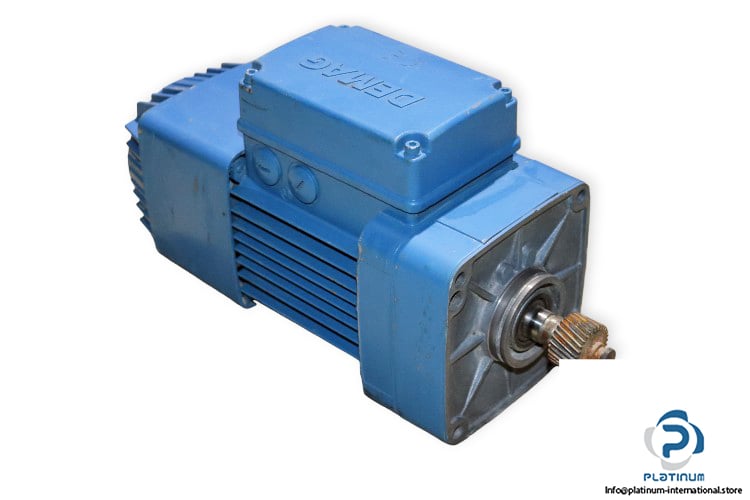

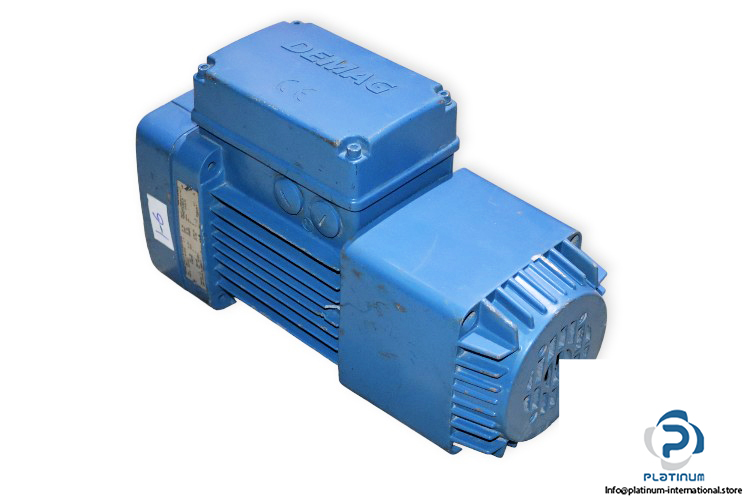

Demag ZBF 71 A 8/2 B003 AC Motor
Manufacturer: Demag
Type: AC Motors

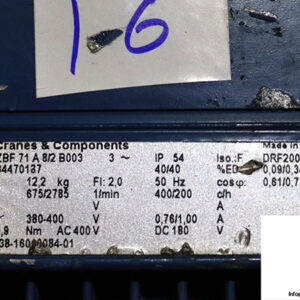

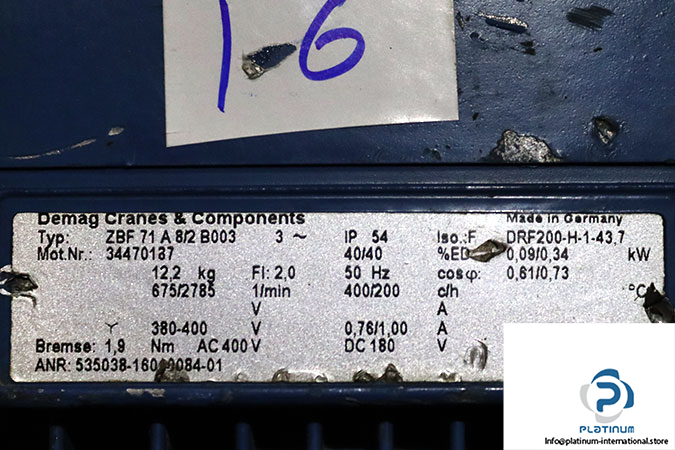

Model: ZBF71A8/2B003
Motor Nr.: 34470187
Motor Speed [r/min]: 675/2785
Motor Power [kW]: 0.09/0.34
Rated Voltage [V]: 380/400 Delta/Star
Nominal Current [A]: 0.76/1.0
Motor Frequency [Hz]: 50
Cos Phi: 0.68
Thermal Class: F
Protection Class [IP]: 54
Brake Voltage [VAC]: 400
Brake Voltage [VDC]: 180
Brake Current [A]: 0.11
Brake Torque [Nm]: 1.9
