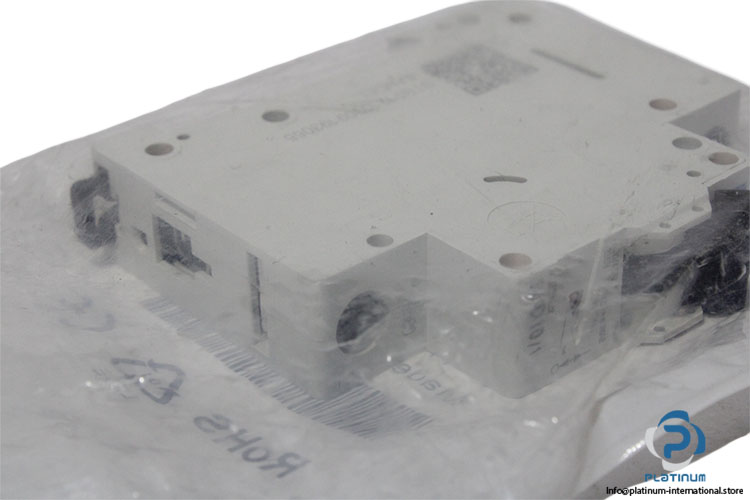

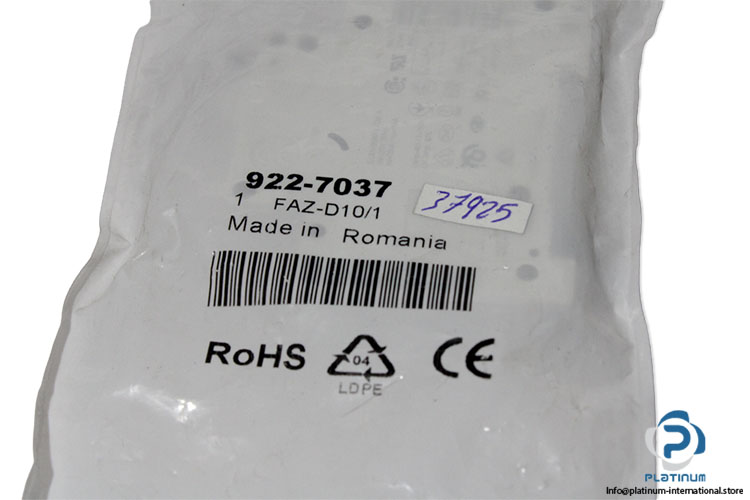

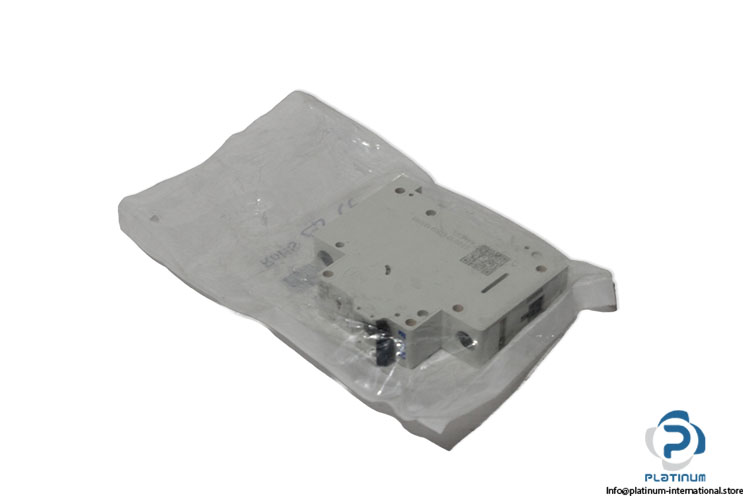

Eaton FAZ-D10/1 Miniature Circuit Breaker
New
In stock1 unitReady to ship
Miniature Circuit Breaker Single-pole EATON miniature circuit breaker with D tripping characteristic, 10 A rated current, and high short-circuit breaking capacity for industrial electrical protection applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 278580 |
| Number of poles | 1 |
| Tripping characteristic | D |
| Rated current | 10 A |
| Rated operational voltage | 230 V |
| Rated insulation voltage | 440V |
| Rated switching capacity (Icu) | 15 kA |
| Rated short-circuit breaking capacity Icn at 400 V | (EN 60898: 10 kA), (IEC 60947-2: 15 kA) |
| Frequency | 50 – 60 Hz |
| Mounting width per pole | 17,5 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093859 |
| Weight | 0,1 |
