FAG H317 Adapter Sleeve
New
In stock1 unitReady to ship
Adapter Sleeve
The FAG H317 adapter sleeve enables secure mounting of tapered bore bearings on cylindrical shafts. It features a 75 mm bore, M85x2 thread, and includes KM17 locknut and MB17 fuse for reliable fit and performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

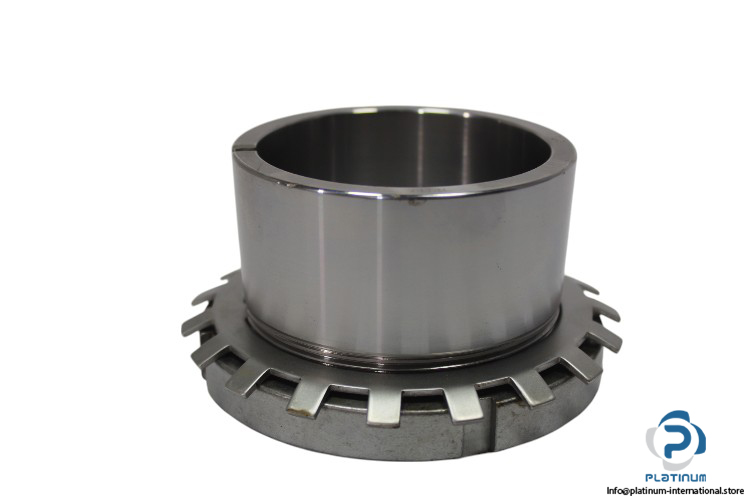

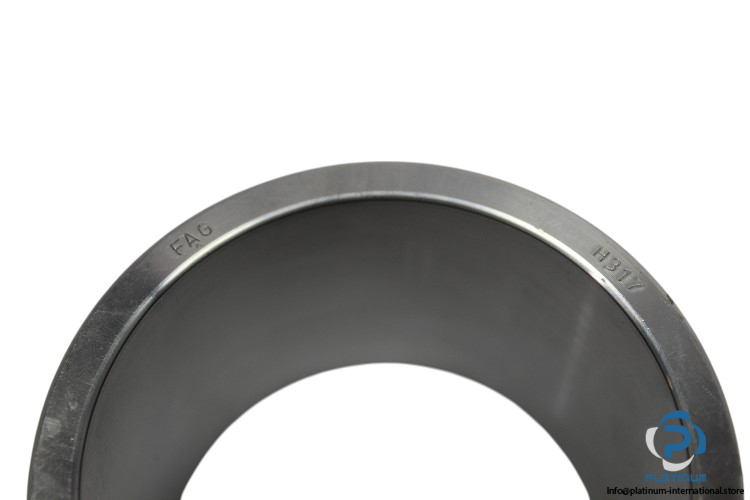

FAG H317 Adapter Sleeve
The FAG H317 Adapter Sleeve is a precision mounting component used for securing bearings with a tapered bore onto cylindrical shafts. Designed for high reliability and easy installation, it includes all required locking elements for safe, vibration-resistant fitting in various industrial machinery applications.
Manufacturer: FAG
Type: Adapter Sleeve
Model: H317
| Bore Diameter (d1) | 75 mm |
| Bore Diameter (Bearing) | 85 mm |
| Outer Diameter (Lock Nut) | 110 mm |
| Sleeve Length | 63 mm |
| Width (Nut and Lock) | 17.75 mm |
| Thread (G) | M85x2 |
| External Taper | 1:12 |
| Locknut | KM17 |
| Fuse | MB17 |
