FYH Ucfl 206 Oval Flange Ball Bearing Unit

Name: FYH UCFL 206 OVAL FLANGE BALL BEARING UNIT
SKU: 1005317
Availability: LimitedAvailability

fyh-UCFL-206-oval-flange-ball-bearing-unit-(new)-(carton)-1

fyh-UCFL-206-oval-flange-ball-bearing-unit-(new)-(carton)-2

New

In stock12 unitsReady to ship

Manufacturer:

FYH

Type:

Oval flange ball bearing unit

Model:

UCFL 206J

Manufacturer

FYH

SKU

1005317

Category

Plummer Block Housing Units

Condition

New

30 bearing bearings flanged FYH Housing mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FYH
Type: Oval flange ball bearing unit
Model: UCFL 206J

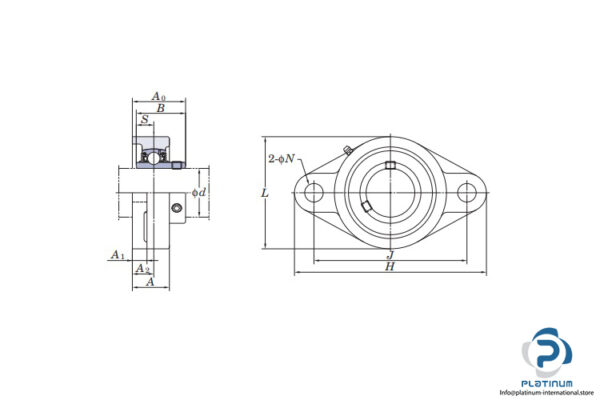

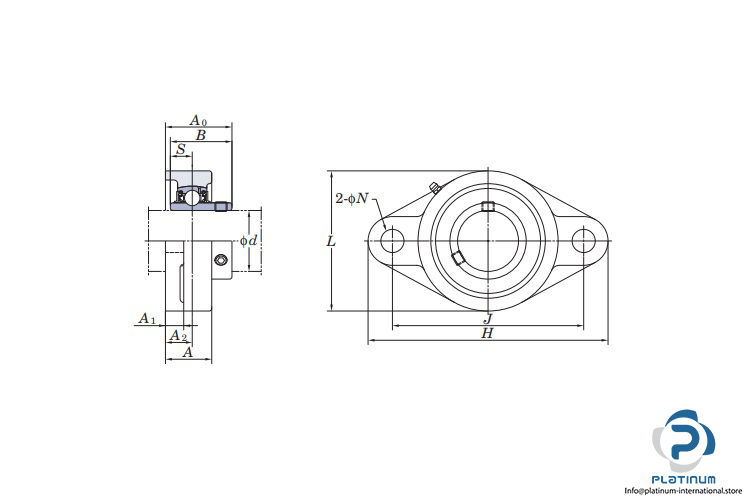

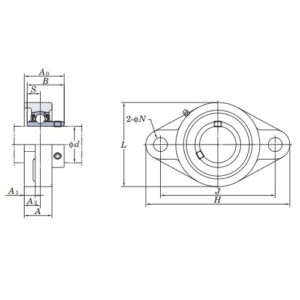

Dimensions
Bore Diameter d: 30 mm
Overall Length L: 80 mm
Overall Height H: 148 mm
Width of inner ring B: 38.1 mm
Distance Between Attachment Bolts J: 117 mm
Overall unit width A₀: 40.2 mm
Basic load rating:
Dynamic Cr: 19500 N
Static C0r: 11300 N
Mounting: Oval Flange
Locking device: Set Screw
Bore type: cylindrical
