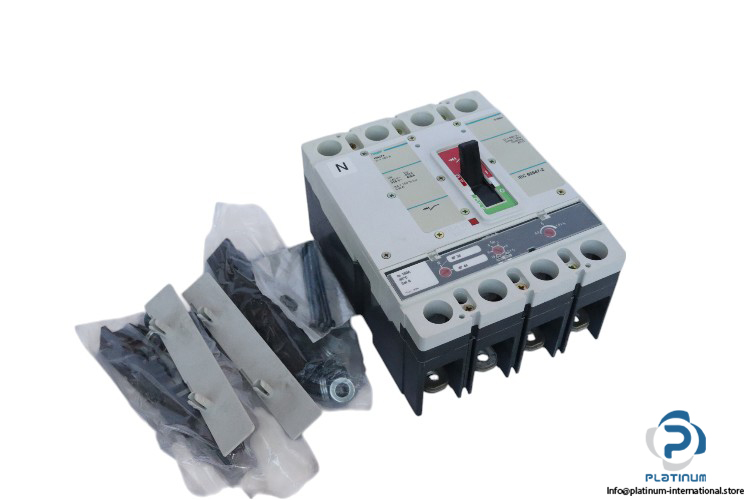

Hager HN274/H160N Circuit Breaker
New
In stock1 unitReady to ship
Hager Molded Case Circuit Breaker (MCCB) HN274 / H160N with a 160 A nominal current, 415 V operational voltage, and 40 kA short circuit breaking capacity at 415 V AC. Compliant with IEC 60947-2 standards.
1604-pole4041560947-28aACBreakerBreakingCapacityCaseCircuitHagerIECImpulseIndustrialIP20kAkVMccbMoldedProtectionRatedShortVvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Hager Molded Case Circuit Breaker (MCCB) HN274 / H160N
Hager Molded Case Circuit Breaker (MCCB) HN274 / H160N is designed for reliable protection and control of electrical circuits in industrial and commercial applications. It offers high breaking capacities, robust protection, and compatibility with IEC standards, ensuring efficient operation and protection of electrical systems. Below are the key technical specifications:
- Manufacturer: Hager
- Type: Molded Case Circuit Breaker (MCCB)

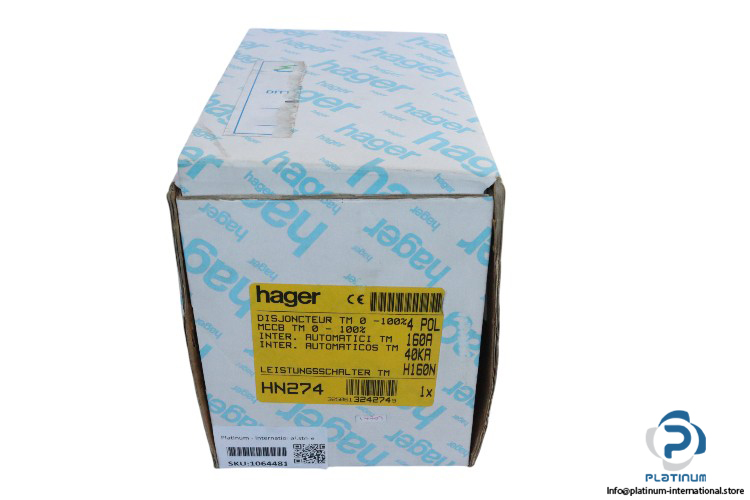

- Model: HN274 / H160N
- Part No.: 324274
Technical Data:

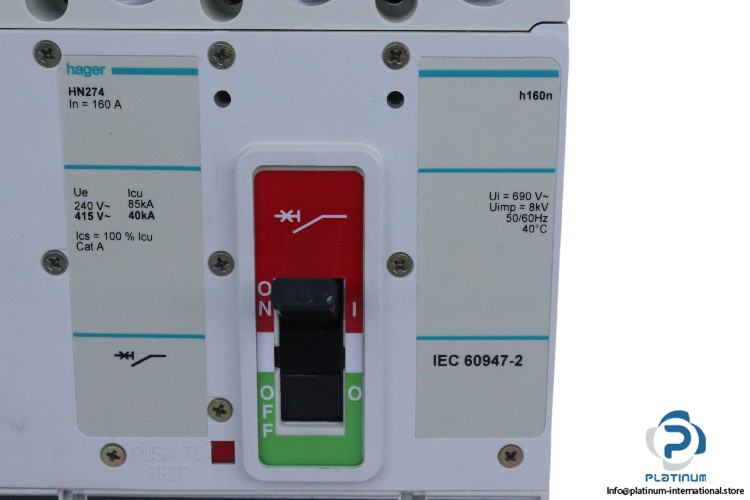

- Rated Operational Voltage: 415 V AC

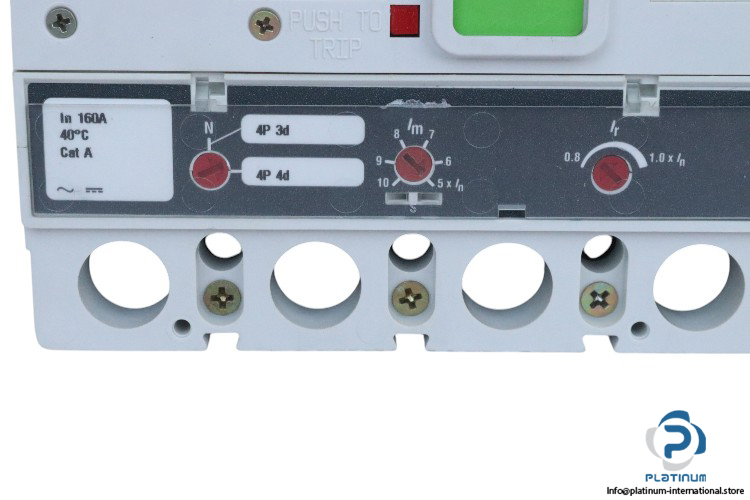

- Nominal Current (In): 160 A
- Frequency: 50/60 Hz
- Rated Insulation Voltage (Ui): 690 V AC
- Rated Impulse Voltage (Uimp): 8 kV
- Rated Short Circuit Breaking Capacity (Icn): 40 kA at 415 V AC, 85 kA at 240 V AC
- Poles No.: 4-Pole
- Protection Class: IP20
- Standard: IEC 60947-2
- Temperature Range: -25 to 70 °C
