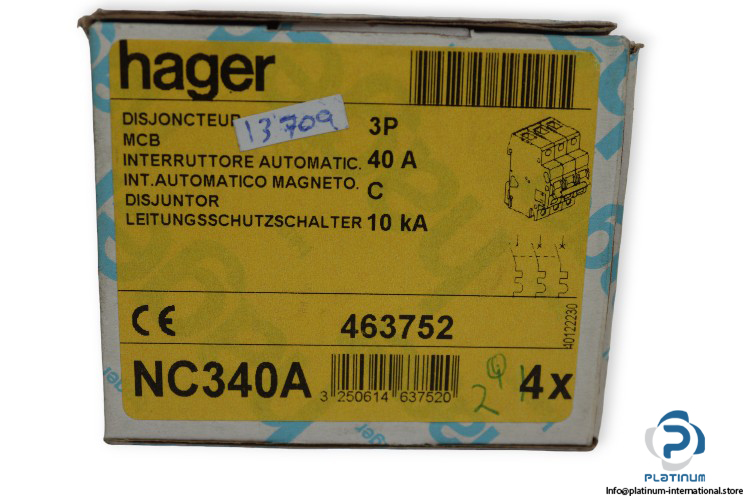

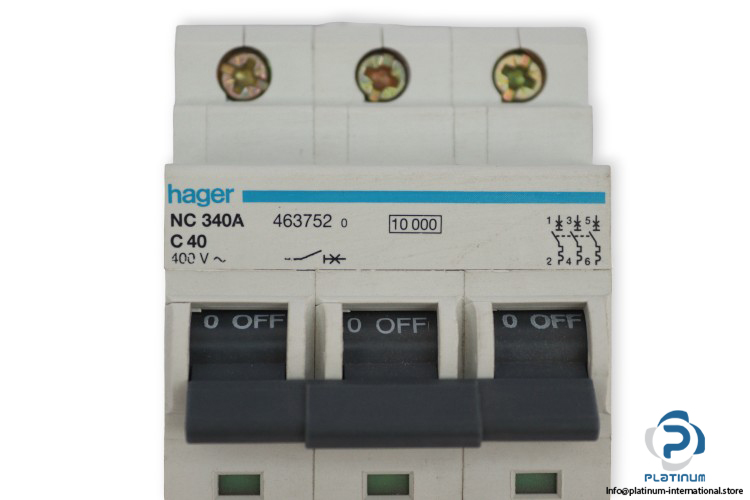

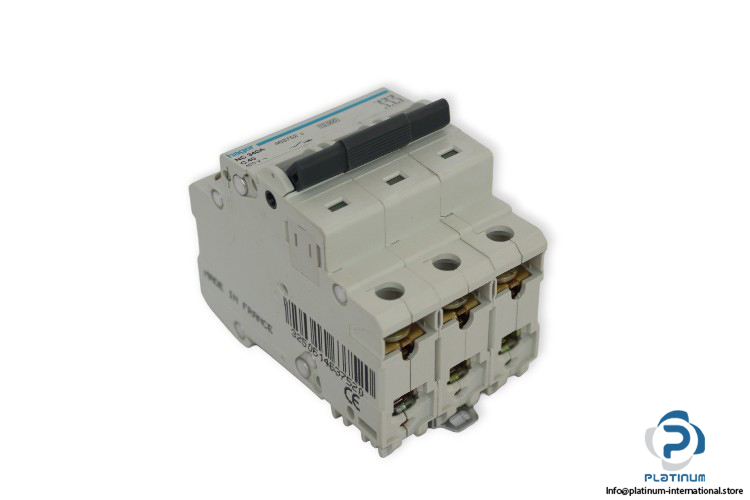

Hager NC340A Miniature Circuit Breaker
Manufacturer: HAGER
Type: Miniature Circuit Breaker
Model: NC340A
Part No.: 463752
Rated Operational Voltage: 400 V AC
Rated Current: 40 A
Frequency: 50 … 60 Hz
Rated Insulation Voltage: 500 V
Rated Impulse Voltage (Uimp): 4 kV
Rated Short Circuit Breaking Capacity Icn: 10 kA
Curve: C
Poles No.: 3-Pole
Protection Class: IP20
Temperature: -25 … 70 °C
Dimensions: 83 x 52.5 x 70 mm
