Hager NCN220A Miniature Circuit Breaker
New
In stock2 unitsReady to ship
Hager Miniature Circuit Breaker (MCB) NCN 220A with 2 poles, 20 A nominal current, and a rated short circuit breaking capacity of 10 kA. Designed for reliable protection in industrial and commercial electrical systems.
10204406aACBreakerBreakingCapacityCircuitDimensionsElectricalHagerImpulseIndustrialInsulationkAkVMiniaturoperationalProtectionRatedSafetyscrewShortterminalVvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

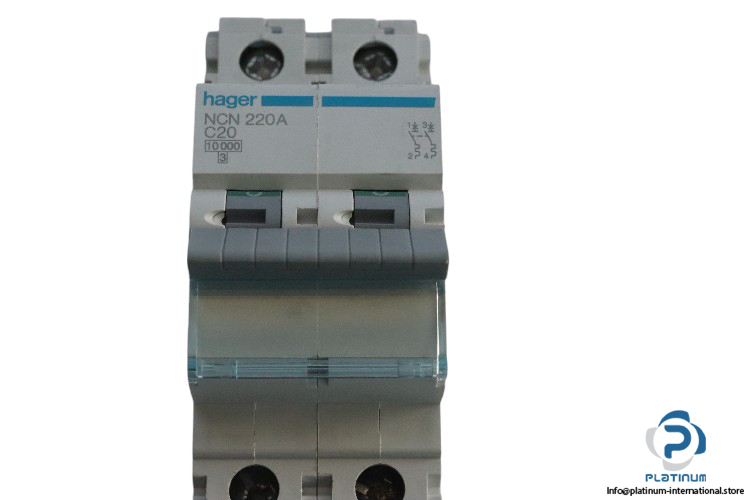

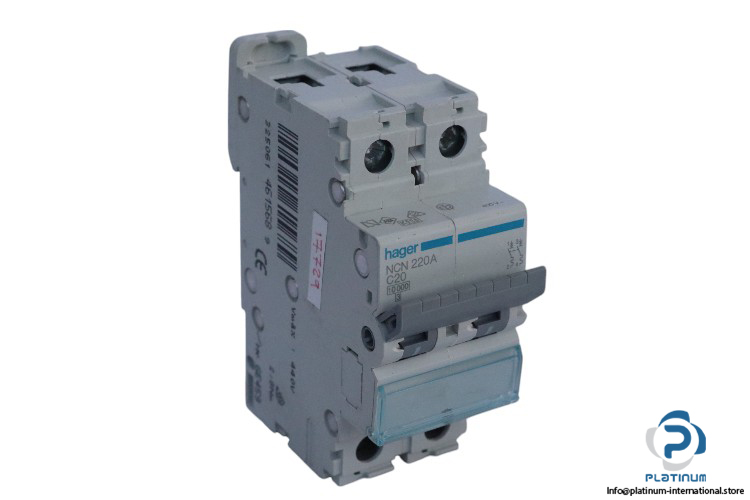

Hager Miniature Circuit Breaker (MCB) NCN 220A
Hager Miniature Circuit Breaker (MCB) NCN 220A is a reliable solution for protecting electrical circuits in various industrial and commercial applications. Designed to handle up to 20 A with high breaking capacities, it ensures safety and reliability in demanding environments.
- Manufacturer: Hager
- Type: Miniature Circuit Breaker (MCB)
- Model: NCN 220A

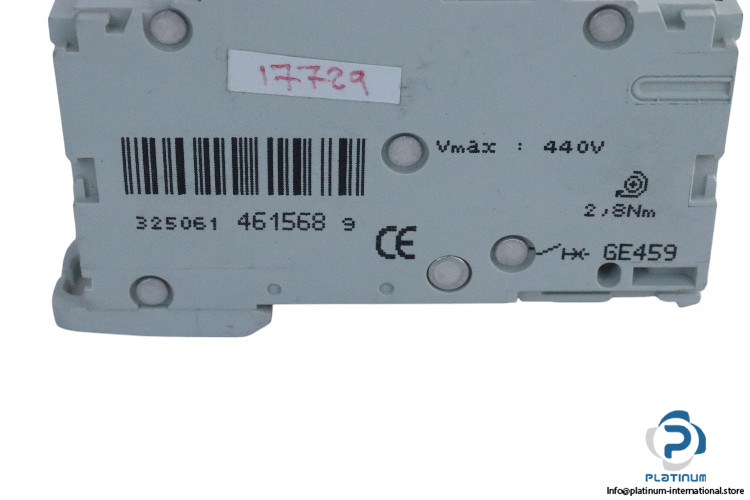

- Part No.: 461568
Technical Data:
- No. of Poles: 2 P
- Curve: C
- Rated Operational Voltage max.: 440 V AC
- Nominal Current (In): 20 A
- Frequency: 50 to 60 Hz
- Rated Insulation Voltage (Ui): 500 V AC
- Rated Impulse Voltage (Uimp): 6 kV
- Rated Short Circuit Breaking Capacity (Icn): 10 kA
- Total Power Loss under In: 5.29 W
- Type of Connection: Screw terminal
- Tightening Torque: 2.8 Nm
- Temperature Range: -25 to 70 °C
- Dimensions: 70 x 83 x 35 mm
