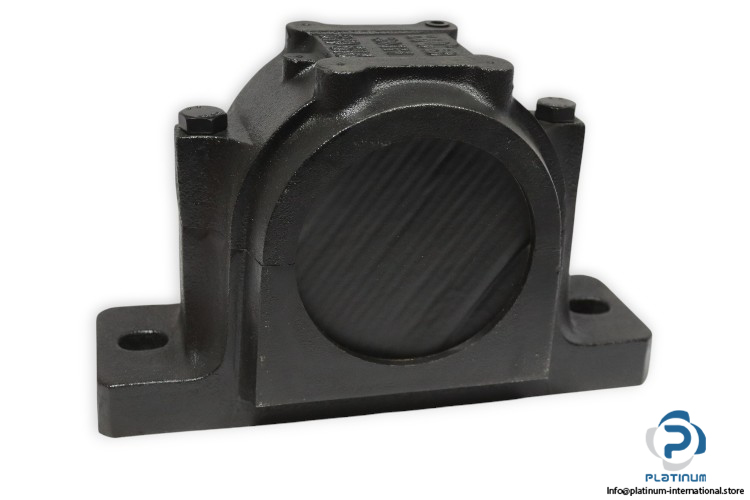

HCB SNH519-616 Plummer Block Housing Unit
New
In stock5 unitsReady to ship
Plummer Block Housing Unit
The HCB SNH 519-616 Plummer Block Housing Unit is a reliable and durable solution with a 70 mm bore diameter, precision alignment, and ASNH 519-616 end cover for industrial applications.519-61670AsnhbearingBlockboreComponentCoverdiameterEndHCBHousingIndustrialMachinerymmplummerPrecisionreliablerobustSNHUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HCB SNH 519-616 Plummer Block Housing Unit
The HCB SNH 519-616 Plummer Block Housing Unit is a highly durable and precision-engineered solution for industrial applications. Designed for reliability, this housing unit offers excellent stability and performance, making it suitable for a wide range of demanding environments.
Manufacturer: HCB
Type: PLUMMER BLOCK HOUSING UNIT
Model: SNH 519-616
Built to meet the demands of industrial systems, the HCB SNH 519-616 Plummer Block Housing Unit ensures precise alignment, durability, and exceptional performance for optimal system reliability.

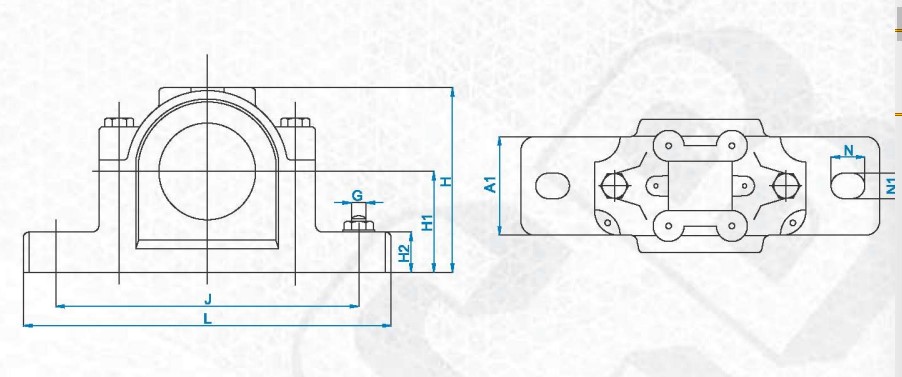

| Bore Diameter (d) | 70 mm |
| Overall Length (L) | 345 mm |
| Height | 210 mm |
| Distance Fixing Bore (J) | 290 mm |
| N | 28 mm |
| H1 | 112 mm |
| G | 20 mm |
| Width (Base) (A1) | 100 mm |

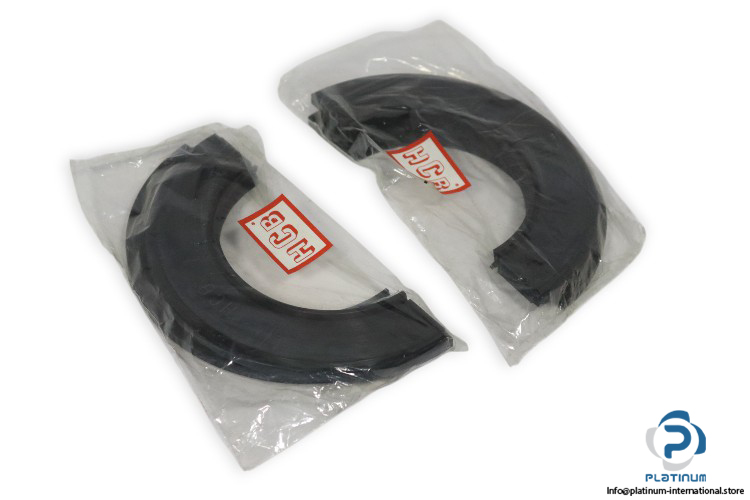

| End Cover | ASNH 519-616 |
