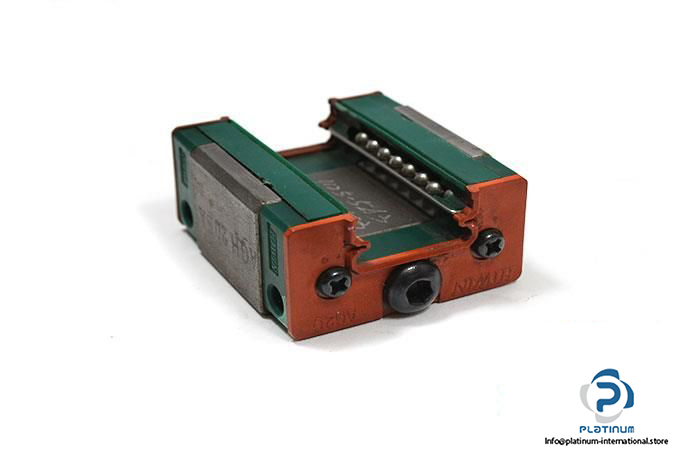

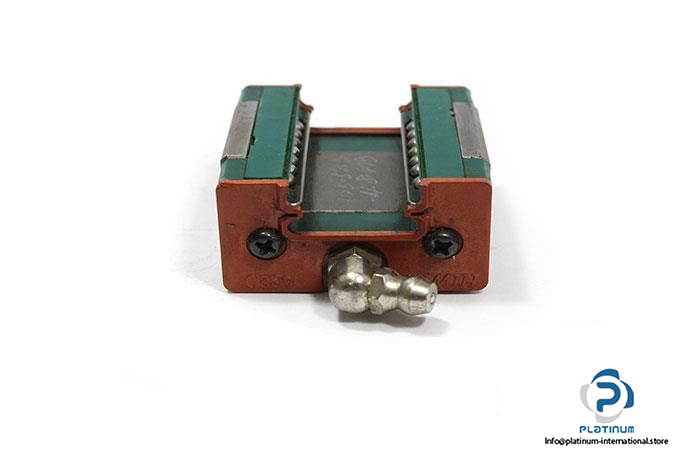

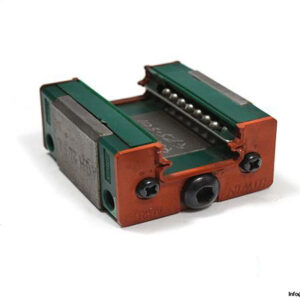

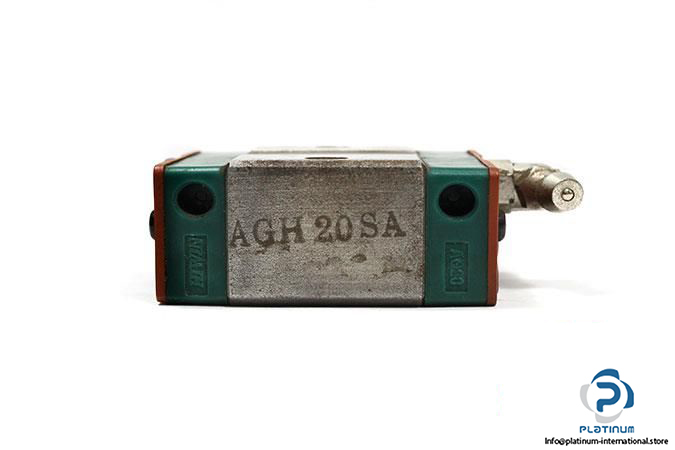

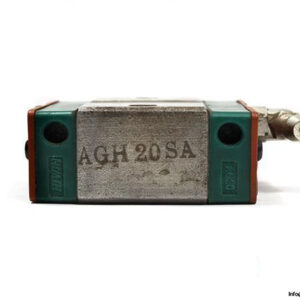

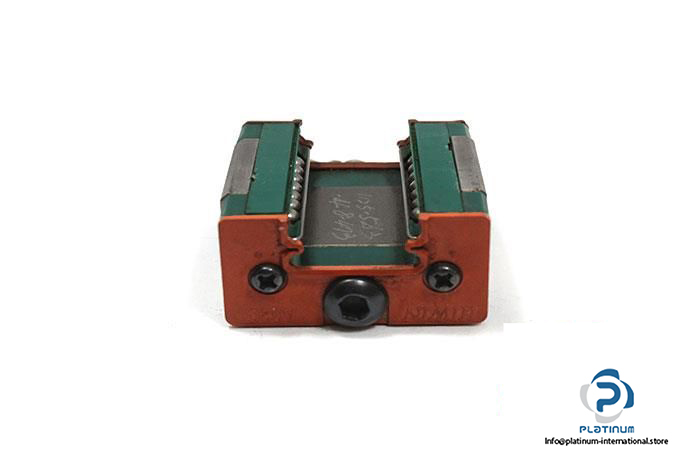

Hiwin AGH20SA Linear Guideway Block

In stock2 unitsReady to ship

LINEAR GUIDEWAY BLOCK

Square-type Hiwin AGH20SA linear block for 20 mm rails, designed for medium load applications with high rigidity and top mounting, ideal for compact automation systems.

Manufacturer
HIWIN
SKU
965328
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HIWIN AGH20SA LINEAR GUIDEWAY BLOCK

The Hiwin AGH20SA is a square-type linear guideway block engineered for medium load applications, offering excellent rigidity and smooth linear motion. Designed for top mounting, it fits 20 mm rails and delivers high load capacity in compact spaces, ideal for automation and precision equipment.

Manufacturer: Hiwin

Type: Linear Guideway Block

MNR: AGH20SA

Size20 mm
Block Height22 mm
Block Width42 mm
Block Length48 mm
Total Height28 mm
Distances Between Holes32 mm
Thread SizeM5 x16
Basic Dynamic Load Rating650 kgf
Basic Static Load Rating920 kgf
Rail Width20 mm
Rail Height15.5 mm
Block TypeSquare
Load TypeMedium Load
Block Mounting TypeFrom Top
