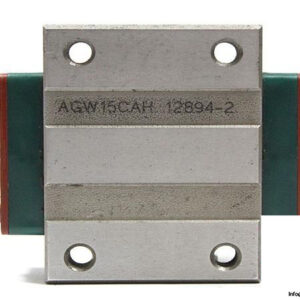

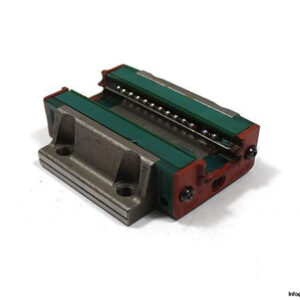

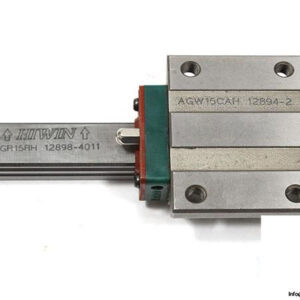

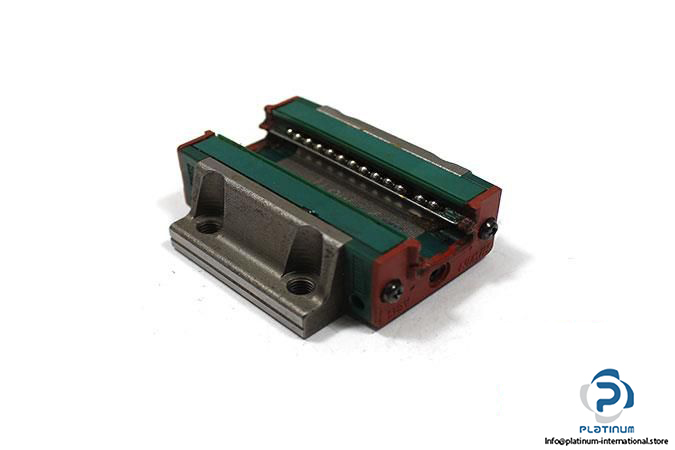

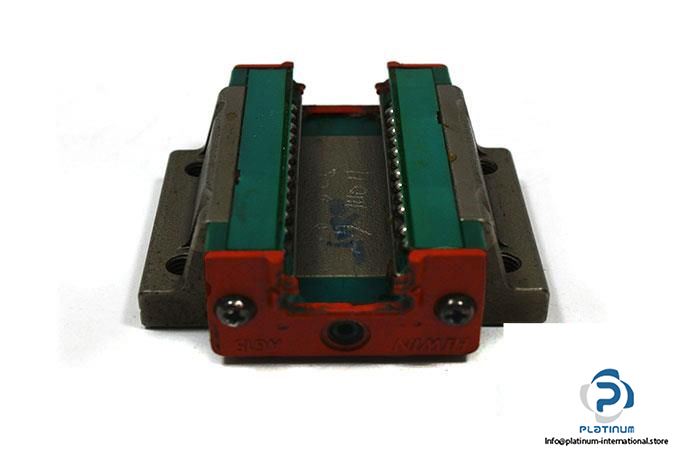

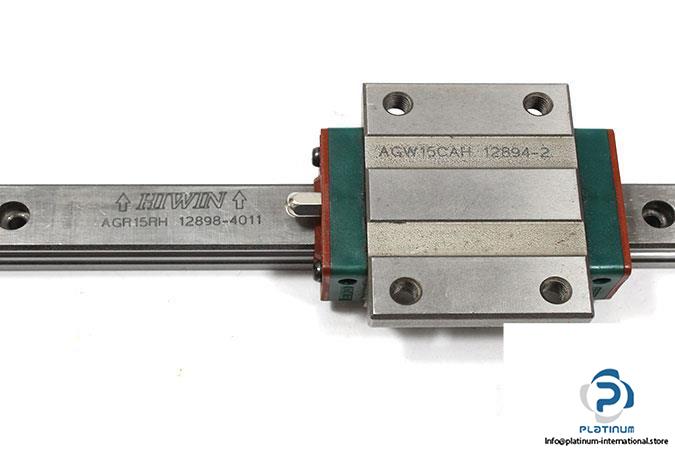

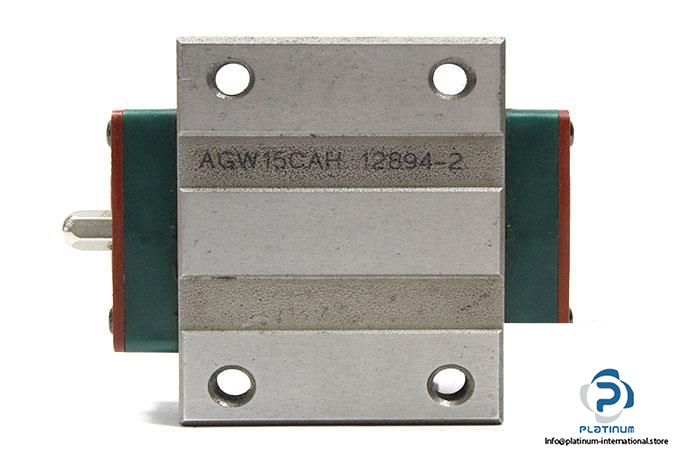

Hiwin AGW15CA Linear Guideway Block

Available on request

LINEAR GUIDEWAY BLOCK

Heavy-load linear guideway block by Hiwin with flange mount, 15 mm size, and top-mounting configuration, designed for high-performance precision systems.

Manufacturer
HIWIN
SKU
965612
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HIWIN AGW 15CA LINEAR GUIDEWAY BLOCK

Hiwin™s AGW 15CA linear guideway block is engineered for high-load precision motion systems. Its compact flange design, top-mount configuration, and high dynamic/static load capacities make it suitable for demanding industrial applications.

Manufacturer: Hiwin

Type: Linear Guideway Block

MNR: AGW 15CA

Size: 15 mm

Block Height19 mm
System Height24 mm
Block Width (W)52 mm
Block Length (L)56.9 mm
Thread SizeM3 x16
Rail Width15 mm
Rail Height13.5 mm
Distances Between Holes41 mm, 26 mm
Block TypeFlange
Load TypeHeavy Load
Block Mounting TypeFrom Top
Basic Dynamic Load Rating640 kgf
Basic Static Load Rating1010 kgf
Precision CodeC
