Hiwin LGH15CA Linear Guideway Block
Used
Available on request
76,50$
LINEAR GUIDEWAY BLOCK
Heavy-load linear block from Hiwin, 15 mm size, square type with 1040 kgf dynamic and 1680 kgf static load rating”perfect for precise, high-rigidity motion control systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

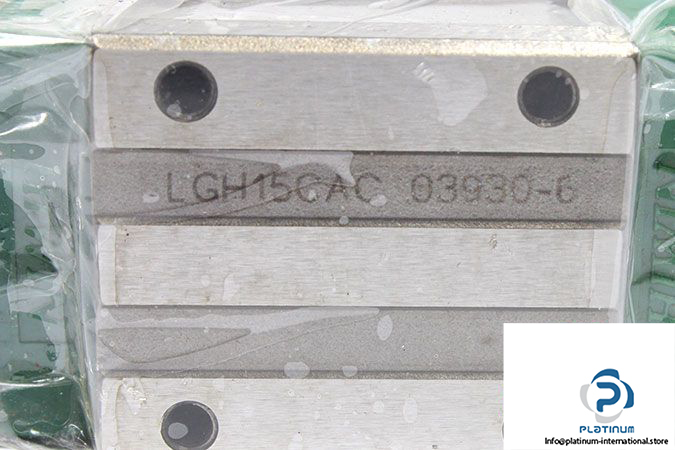

HIWIN LGH 15CAC LINEAR GUIDEWAY BLOCK
The Hiwin LGH 15CAC is a heavy-load square-type linear guideway block designed for high rigidity and precision in demanding motion systems. With a compact 15 mm size and robust load-bearing capacity, it is ideal for automation, machine tools, and high-performance linear motion applications.
Manufacturer: Hiwin
Type: Linear Guideway Block LGH
MNR: LGH 15CAC
Size: 15 mm

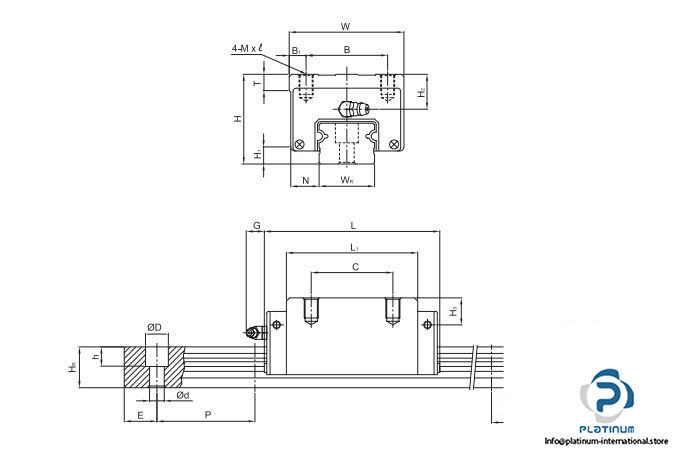

| Total Height H | 28 mm |
| Block Height | 23.5 mm |
| Block Width W | 34 mm |
| Block Length L | 60.6 mm |
| Distance Between Holes | 26, 26 mm |
| Block Type | H (Square Type) |
| Dynamic Load Rating (C) | 1040 kgf |
| Static Load Rating (C0) | 1680 kgf |
| Load Type | C (Heavy Load) |
