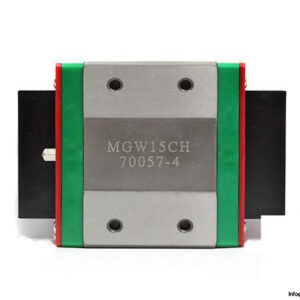

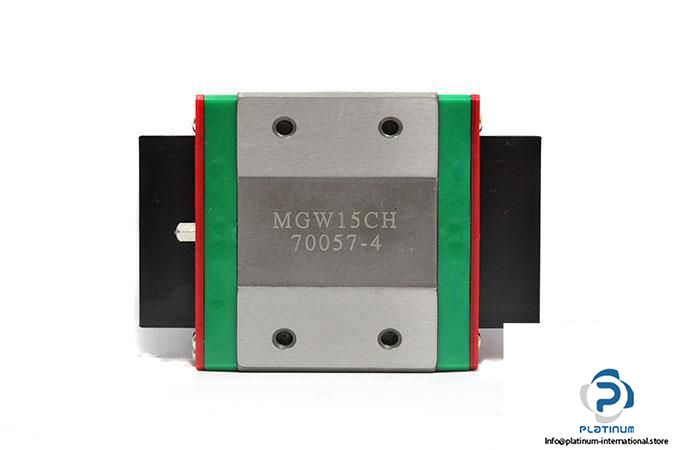

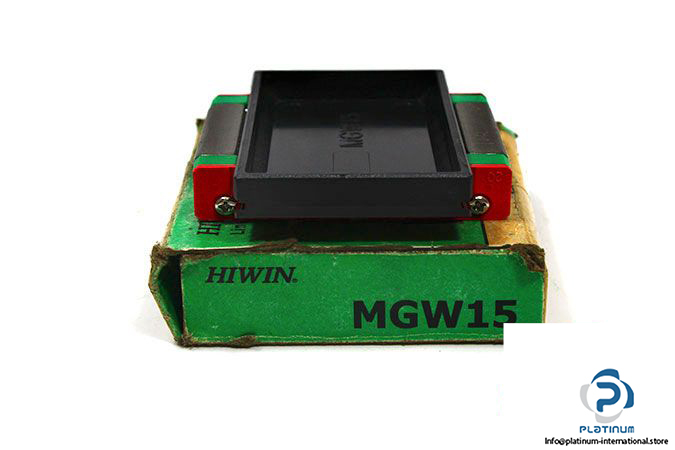

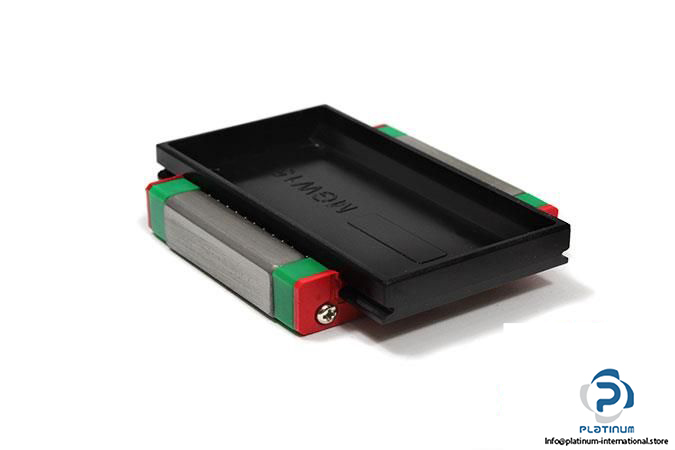

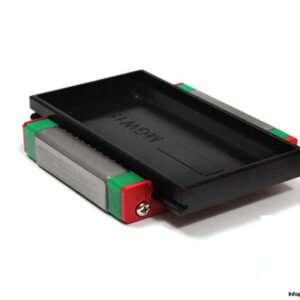

Hiwin MGW15CH Linear Guideway Block
New
In stock41 unitsReady to ship
71,48$
LINEAR GUIDEWAY BLOCK
Hiwin MGW15CH 70057-4 is a compact standard-type linear block with 15 mm size, high load ratings, and H-class precision for reliable motion in automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN MGW15CH 70057-4 LINEAR GUIDEWAY BLOCK
The MGW15CH 70057-4 linear guideway block from Hiwin is a precision-engineered, standard-type carriage designed for smooth linear motion. With its 15 mm size and high load ratings, it supports demanding applications in compact machinery and automation systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGW15CH 70057-4
Size: 15 mm
| Block Height | 12.6 mm |
| System Height | 16 mm |
| Block Width (W) | 60 mm |
| Block Length (L) | 54.8 mm |
| Distances Between Holes | 45 mm, 20 mm |
| Thread Size | M4 × 10 |
| Rail Width | 42 mm |
| Rail Height | 9.5 mm |
| Block Type | Standard |
| Basic Dynamic Load Rating | 6.77 kN |
| Basic Static Load Rating | 9.22 kN |
| Precision Code | H |
