Hiwin QHW35HC Linear Guideway Block
New
In stock5 unitsReady to ship
133,33$
LINEAR GUIDEWAY BLOCK
Hiwin linear guideway block with 35 mm size and flange type, supporting super heavy loads with top or bottom mounting and precision code C for high-performance applications.08695-435BlockBottomCFlangeGuideGuidewayHeavyHiwinLinearLoadmmMotionmountPrecisionQHW35HCCrailSuperTop
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

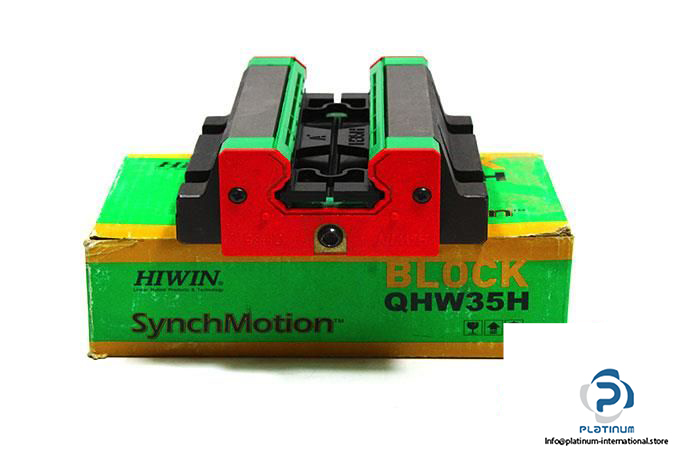

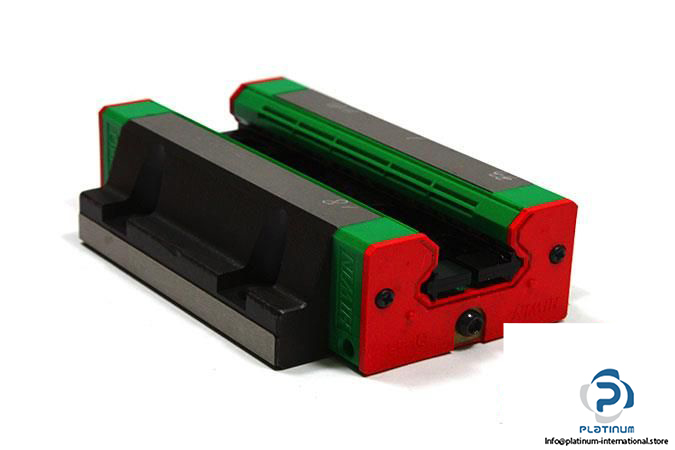

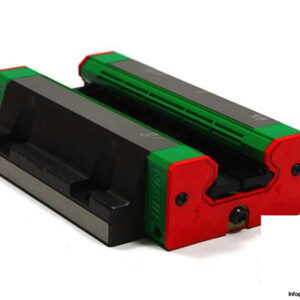

HIWIN QHW35HCC LINEAR GUIDEWAY BLOCK
The Hiwin QHW35HCC Linear Guideway Block is engineered for high-rigidity and super heavy-load linear motion systems. Featuring a wide-flange block and precision grade C, it ensures exceptional stability and load-bearing performance for demanding industrial applications.
Manufacturer: Hiwin
Type: Linear Guideway Block

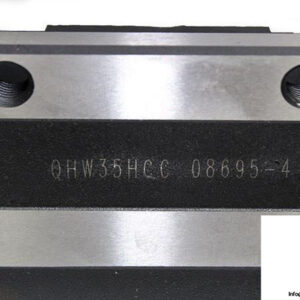

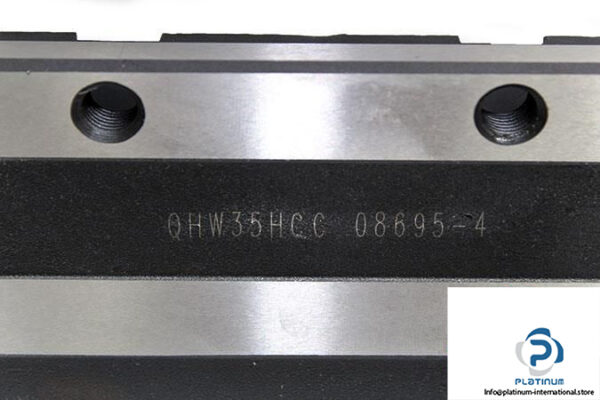

MNR: QHW35HCC 08695-4
| Size | 35 mm |
| Block Height | 40.5 mm |
| System Height | 48 mm |
| Block Width (W) | 100 mm |
| Block Length (L) | 139.4 mm |
| Thread Size | M8x25 |
| Distance Between Holes | 100 mm, 62 mm |
| Rail Width | 34 mm |
| Rail Height | 29 mm |
| Block Type | Flange |
| Load Type | Super Heavy Load |
| Block Mounting Type | Top or Bottom |
| Precision Code | C |
| Basic Dynamic Load Rating | 95.23 kN |
| Basic Static Load Rating | 115.55 kN |
