Hiwin S1205QF-1 Ball Screw

In stock1 unitReady to ship

INTERNAL RECIRCULATION BALL SCREW

Hiwin S1205QF 1 ball screw with 20 mm diameter, 5 mm lead, and right-hand thread offers smooth, high-precision linear motion for industrial applications.

Manufacturer
HIWIN
SKU
1002115
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

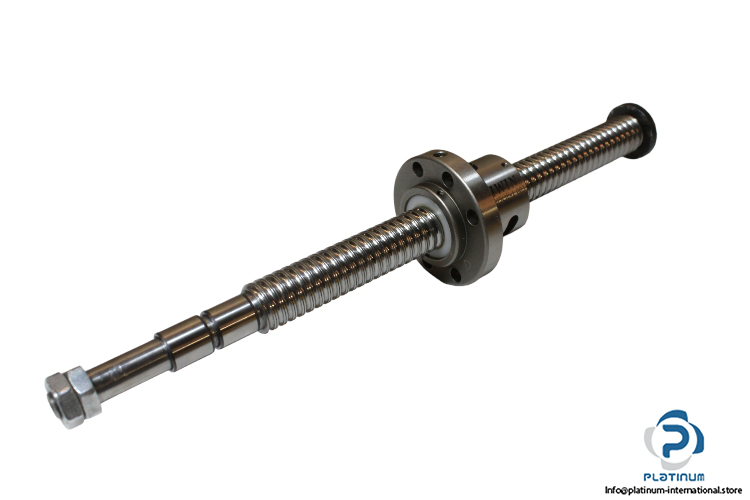

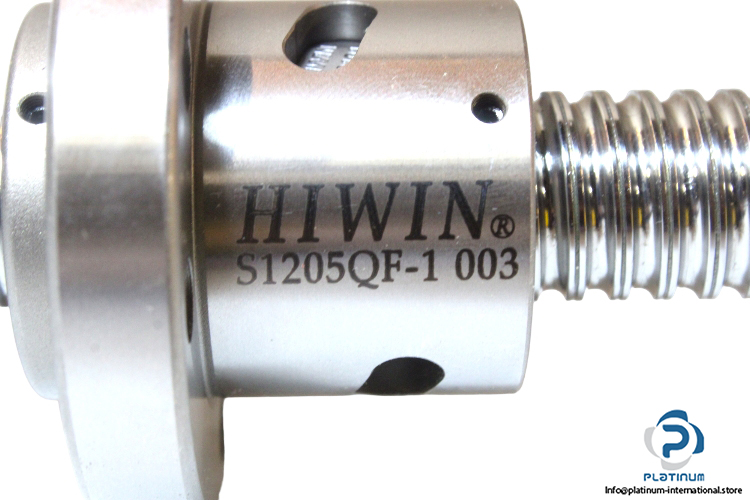

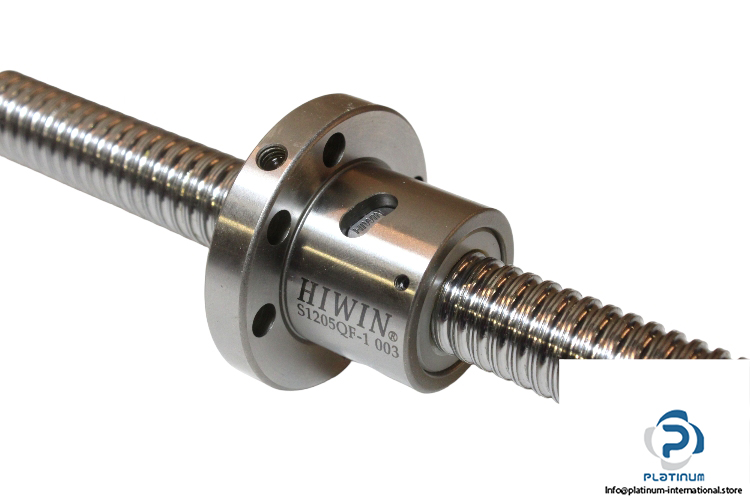

HIWIN S1205QF 1 INTERNAL RECIRCULATION BALL SCREW

This high-precision ball screw from Hiwin is engineered for linear motion systems that demand accuracy, repeatability, and smooth operation. With a compact design and right-hand thread, it offers efficient power transmission in CNC, automation, and industrial machinery applications.

Manufacturer: Hiwin

Type: Internal Recirculation Ball Screw

Model: S1205QF 1

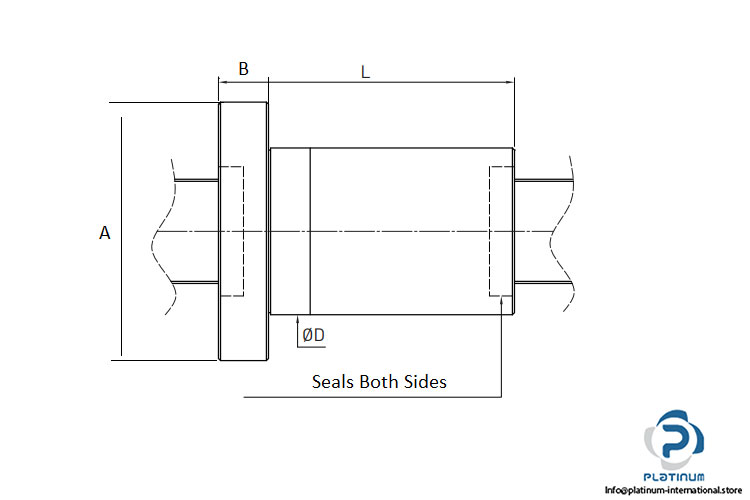

Dimensions

Size20 x 5 R
Nominal Diameter20 mm
Lead5 mm
Direction of LeadRight-Hand Thread
Flange Diameter A58 mm
Nut Diameter D36 mm
Length L38 mm
Flange Thickness B10 mm
Bolt Hole Head Diameter6 x 6.6 mm
Path Length220 mm
Shaft Total Length295 mm
