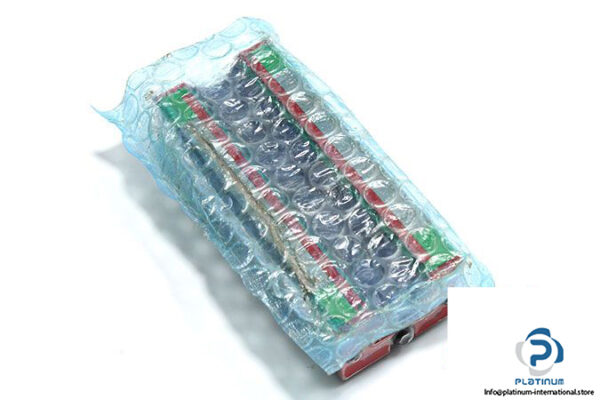

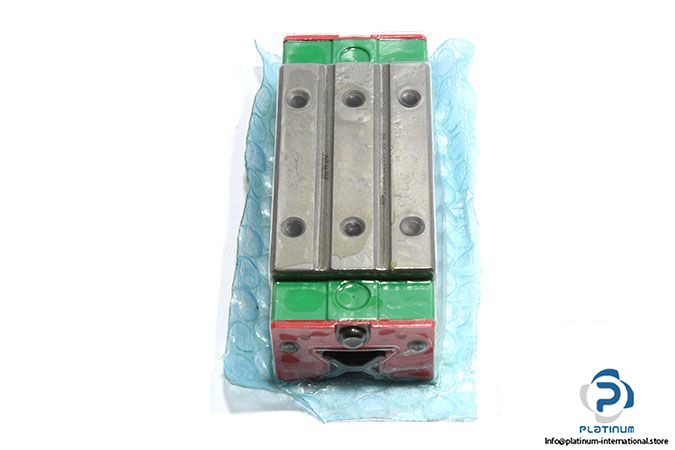

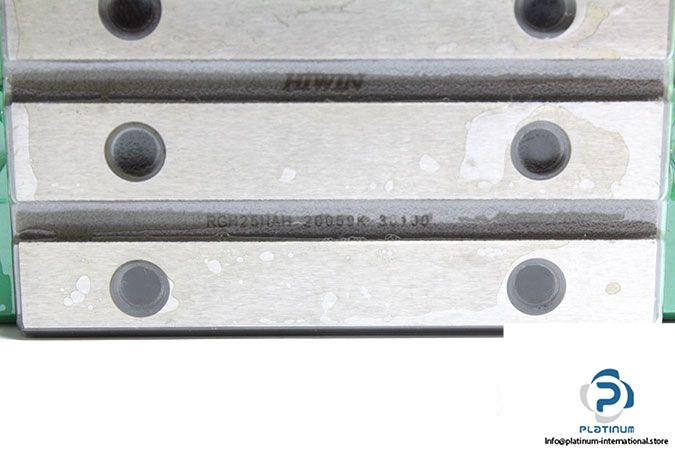

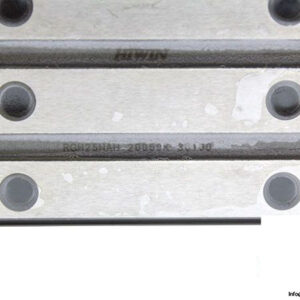

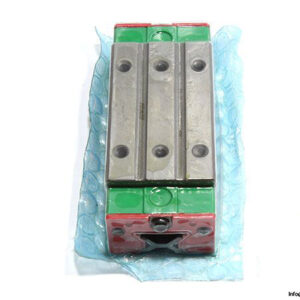

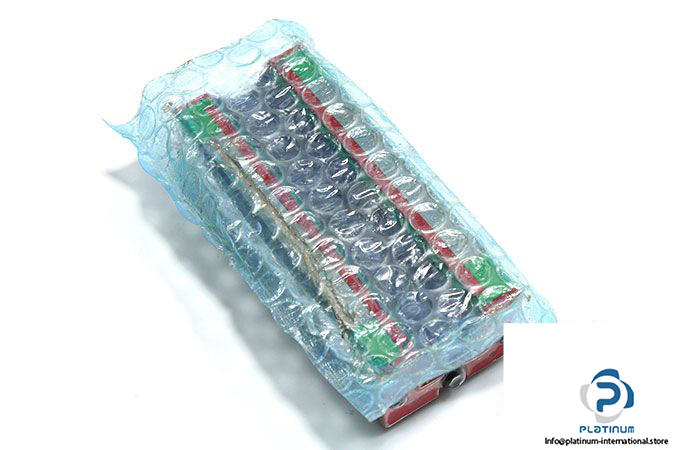

Hiwin RGH25HA Linear Guideway Block

In stock12 unitsReady to ship

119,16$

LINEAR GUIDEWAY BLOCK

High-rigidity roller-type square block from HIWIN RG Series, model RGH25HA, with 25 mm size and super heavy load rating”ideal for demanding precision motion systems.

Manufacturer
HIWIN
SKU
978442
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HIWIN RGH25HA LINEAR GUIDEWAY BLOCK

Engineered for high-rigidity, heavy-load applications, the HIWIN RGH25HA is a precision square-type linear guideway block from the RG Series. It utilizes a roller-based design to deliver superior stiffness and accuracy, making it ideal for demanding industrial automation systems.

Manufacturer: HIWIN

Type: Linear Guideway Block

Model: RGH25HA

MRN: RGH25HAH 20059K 30100

Basic Load Ratings, Linear:

Size25 mm
Total Height H40 mm
Block Width W48 mm
Block Length L114.4 mm
Block Height34.5 mm
Distance Between Holes35, 50 mm
Dynamic Cr33.9 kN
Static C0r73.4 kN
SeriesRG Series; High Rigidity Roller Type Linear Guidway
Block TypeH; Square Type
Load TypeH; Super Heavy Load
Mounting Bolts MM6
