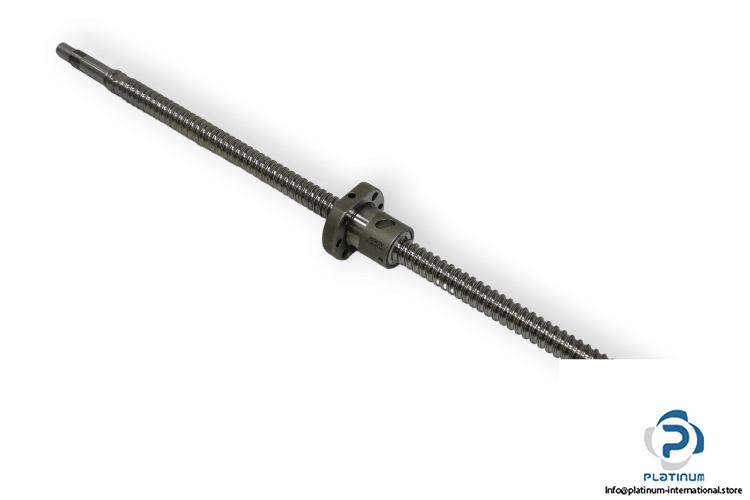

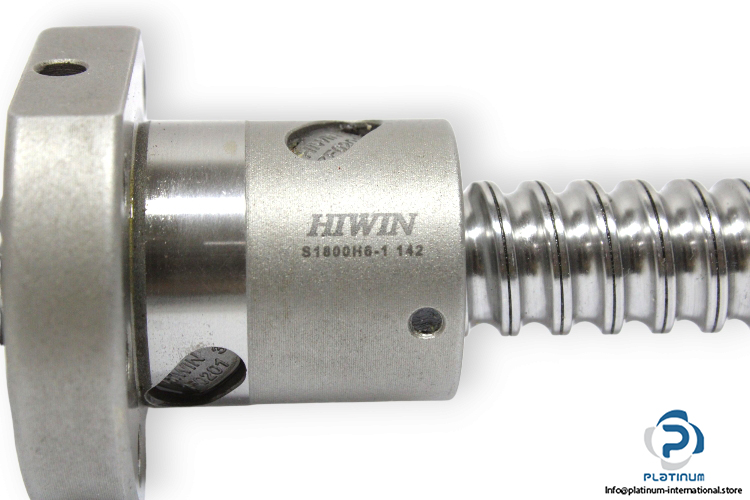

Hiwin S1800H6-1 Ball Screw
Used
In stock1 unitReady to ship
FLANGED NUT BALL SCREW
Hiwin flanged ball screw with 16 mm diameter, 5 mm lead, and 8100 N dynamic load rating, optimized for accurate, high-load linear motion applications in compact mechanical systems.1616055AutomationBallDriveflangedHiwinleadLinearmmMotionnutPitchPrecisionR16-05T3-FSIDINRight-HandscrewThread
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

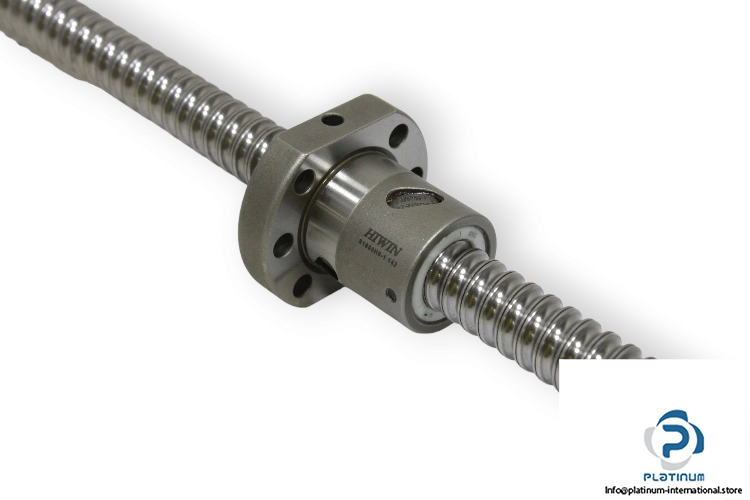

HIWIN R16-05T3-FSIDIN FLANGED NUT BALL SCREW
This precision ball screw from Hiwin is engineered for high-performance linear motion systems. With a 16 mm nominal diameter, right-hand thread, and a 5 mm lead, it delivers excellent accuracy, load capacity, and smooth operation across demanding industrial and automation environments.
Manufacturer: Hiwin
Type: Flanged Nut Ball Screw
Model: R16-05T3-FSIDIN

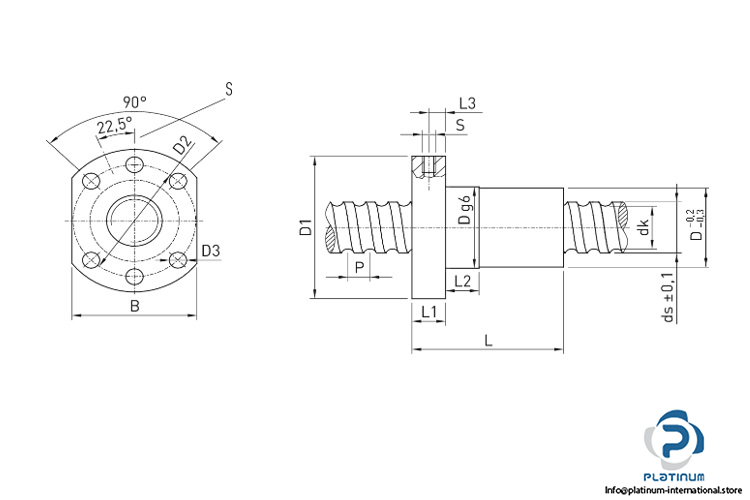

| Size | 1605R |
| Nominal Diameter | 16 mm |
| Lead | 5 mm |
| Direction of Lead | Right-Hand Thread |
| Flange Diameter (D1) | 48 mm |
| Nut Diameter (D) | 28 mm |
| Nut Length (L) | 40 mm |
| Flange Thickness (L1) | 10 mm |
| L2 | 10 mm |
| B | 48 mm |
| D2 | 38 mm |
| D3 | 5.5 mm |
| Dynamic Load Rating | 8100 N |
| Static Load Rating | 11700 N |
| Shaft Path Length | 400 mm |
| Shaft Total Length | 480 mm |
