Igus TW-01-30-LLY Linear Guide Carriage

Name: IGUS TW-01-30-LLY LINEAR GUIDE CARRIAGE
SKU: 1004207
Availability: LimitedAvailability

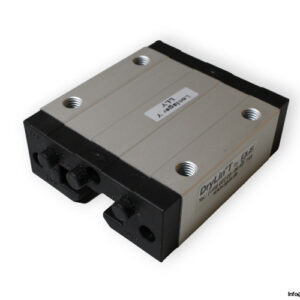

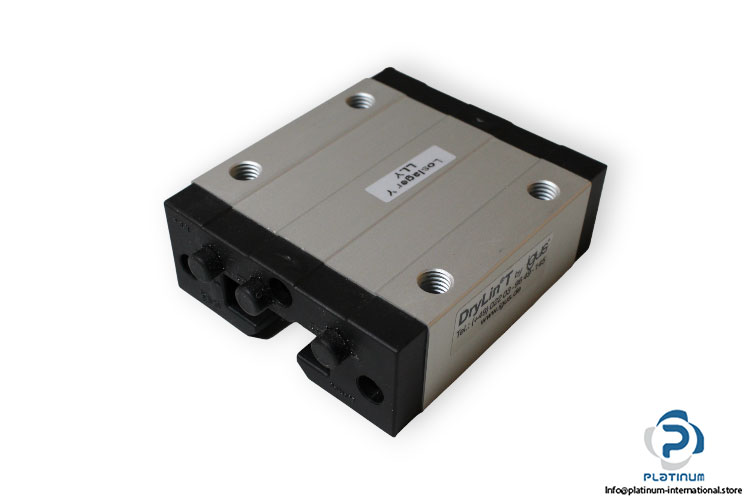

igus-tw-01-30-lly-linear-guide-carriage-1

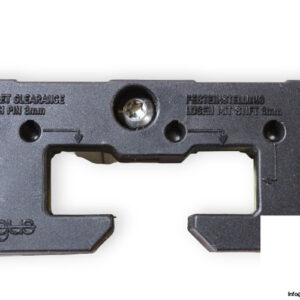

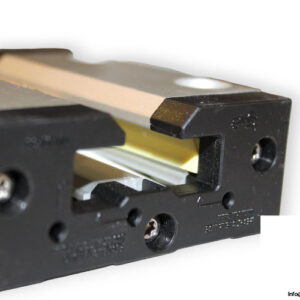

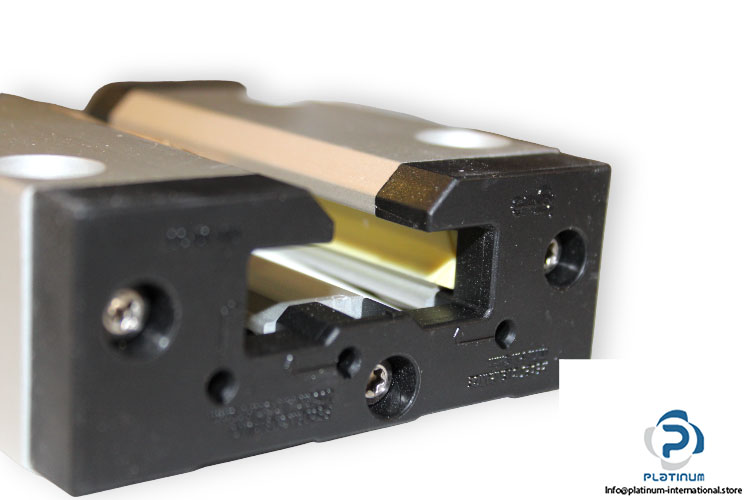

igus-tw-01-30-lly-linear-guide-carriage-2

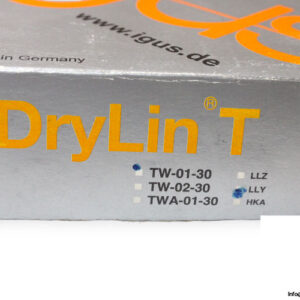

igus-tw-01-30-lly-linear-guide-carriage-3

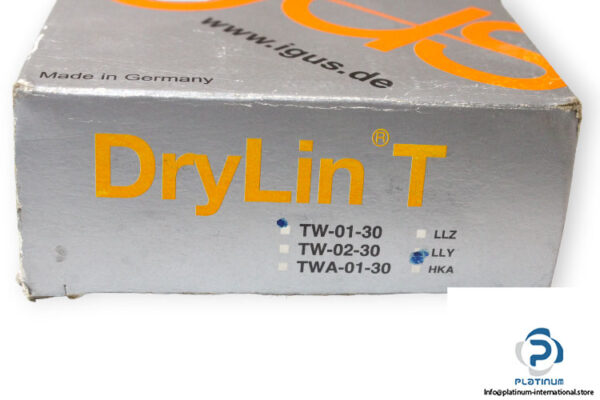

igus-tw-01-30-lly-linear-guide-carriage-4

igus-tw-01-30-lly-linear-guide-carriage-5

New

In stock3 unitsReady to ship

Manufacturer:

IGUS

Type:

Guide Carriage With Floating Bearing In Y-Direction

Model:

TW-01-30 LLY

Manufacturer

IGUS

SKU

1004207

Category

Linear Motion

Condition

New

bearing Carriage DryLin Guide Guideway Igus Linear Motion TW

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: IGUS
Type: Guide Carriage With Floating Bearing In Y-Direction
Model: TW-01-30 LLY

Size: 30

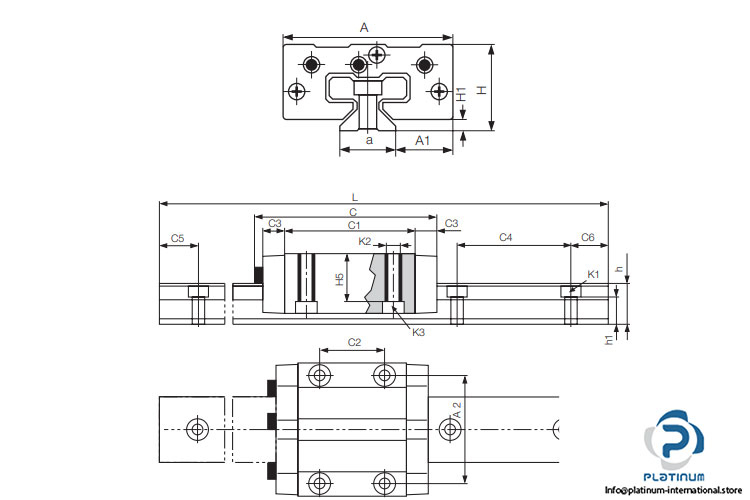

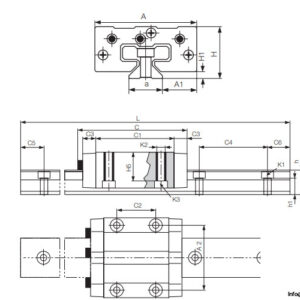

Dimensions
Total Height H: 42 mm
Block Height: 35.5 mm
Block Width A: 90 mm
Block Length: 103 mm
Block Length Total C: 109 mm
C₁: 79 mm
A₂: 72 mm
C₂: 52 mm
Block Type: Square Type
Mounting Hole: 4 tapped holes
Torque Max.: 15 Nm
Maximum permissible load: 7000 N
Temperature range: -40 °C to +90 °C
