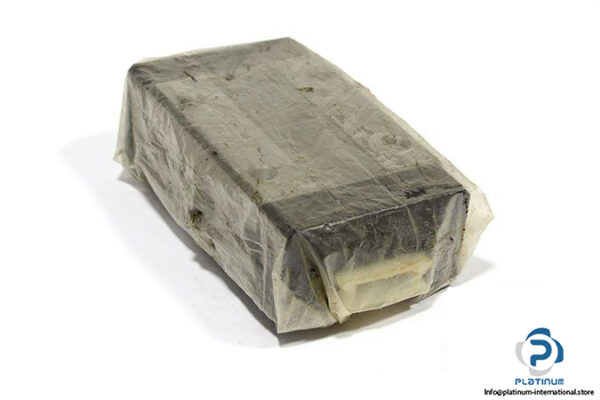

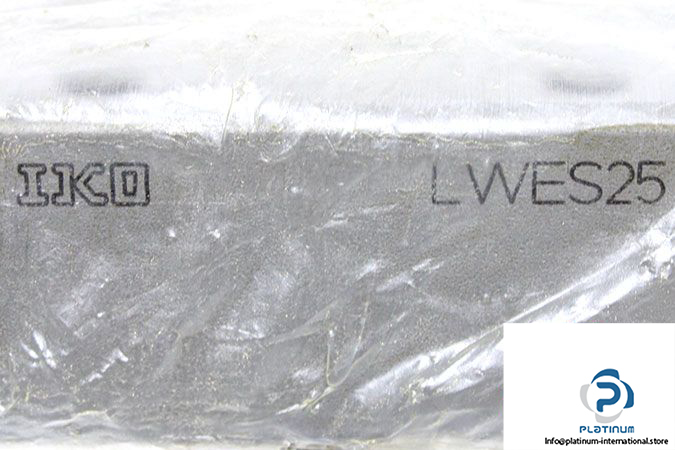

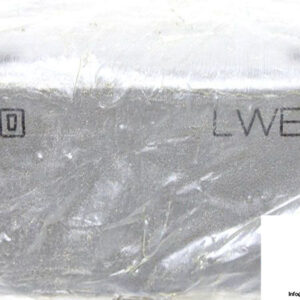

IKO LWES25 Linear Guideway Block

Manufacturer: IKO

Type: Linear Guideway Block

Model: LWES25

Size: 25 mm

Basic Load Ratings:

Dynamic C: 18100 N

Static C₀: 21100 N

Static moment rating:

X axis T₀: 262 Nm

Y axis T_Y: 195 Nm

Z axis T_X: 195 Nm

Block Type: Square Type

Length of slide unit: Standard

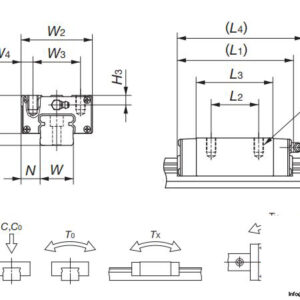

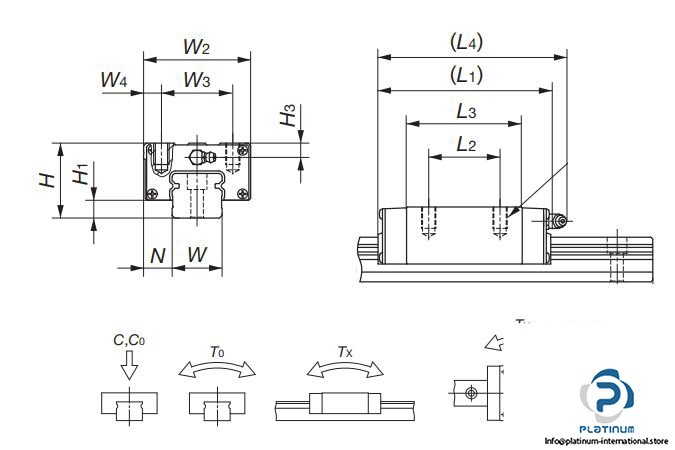

Dimensions

Total Height H: 33 mm

Block Width W₂: 48 mm

Block Length L₁: 83 mm

W₃: 35 mm

L₂: 35 mm

Weight: 0.42 kg
