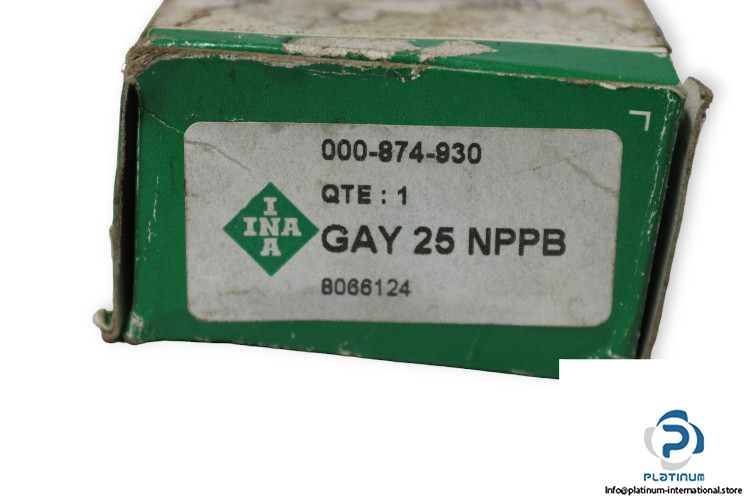

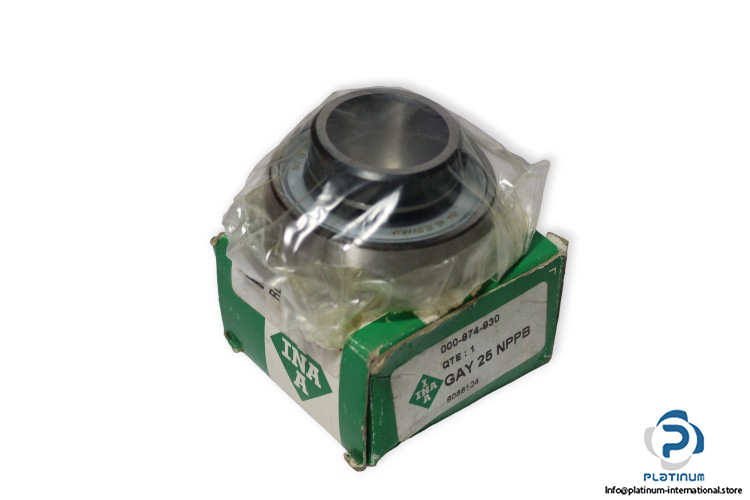

INA GAY 25 Nppb Insert Ball Bearing

Manufacturer: INA
Type: Insert Ball Bearing
Model: GAY25-NPP-B
Replaces: GAY25-XL-NPP-B

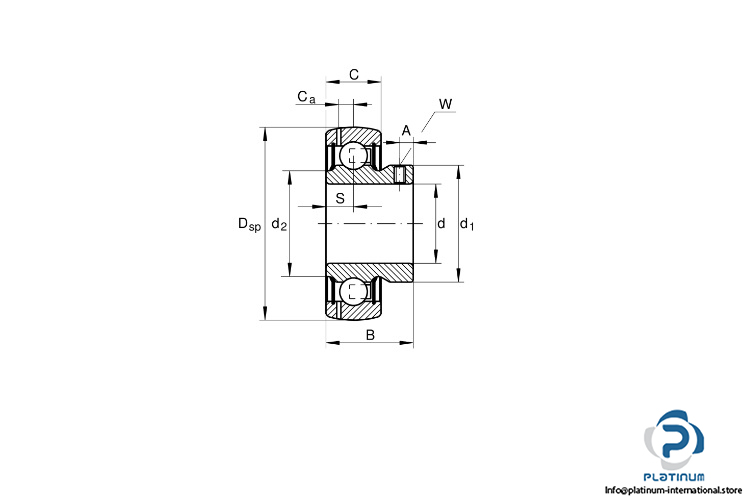

Dimensions
shaft diameter d: 25 mm
Outer diameter D_sp: 52 mm
Width B: 27 mm
Width, outer ring C: 15 mm
Basic load ratings:
Dynamic C: 14000 N
Static C₀: 7800 N
Fatigue load limit, radial: 410 N
Sealing: NPP, Lip seal on both sides
Locking device: location by grub screws
Shape of outer surface: B
