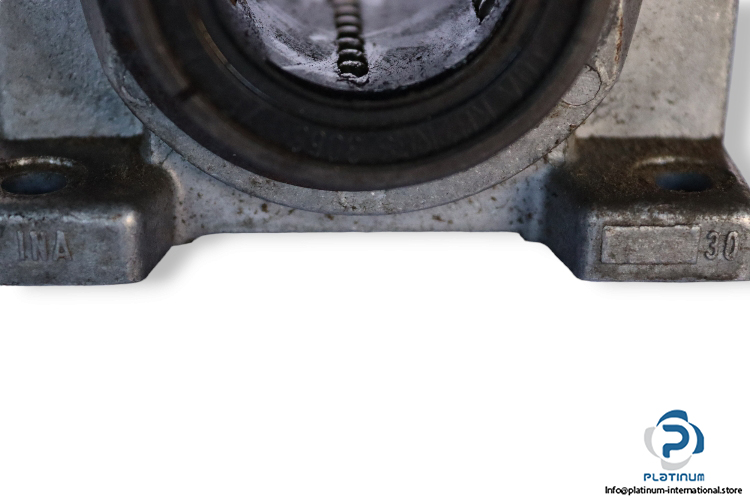

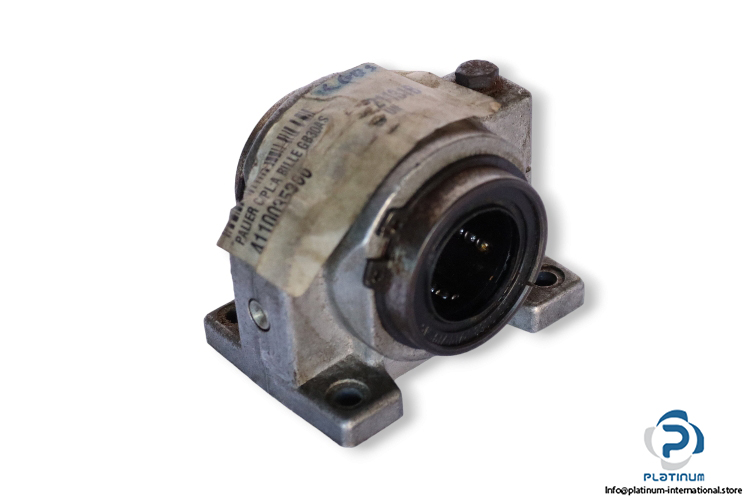

INA KGBS30-PP-AS Linear Bearing Unit

Manufacturer: INA
Type: Linear ball bearing and housing units
Model: KGBS 30-PP-AS

Shaft diameter F_w: 30 mm
Housing width B: 88 mm
Housing Height H: 66.5 mm
Housing Length L: 68 mm
Base to Center Height L5: 48 mm
JB: 76 mm
Design type: Closed Type
Rows of Balls: 6
Basic Load Ratings:
Dynamic C: 3600 N
Static C0: 2850 N
Sealing: PP, Lip Seal on Both Sides of Bearing
